Remove/Install Side Paneling In Rear - AR68.30-P-4780MEM

Model 167.9

With Code M036 (Maybach version)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle With Code 224 (Design individual rear seat system)

Shown on the left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat backrests in the rear passenger compartment.		AR91.12-P-1713MEM
2	Remove trim strips behind the rear seat.		AR68.30-P-1460MEM
3	Remove rear door sill.		AR68.30-P-4100ME

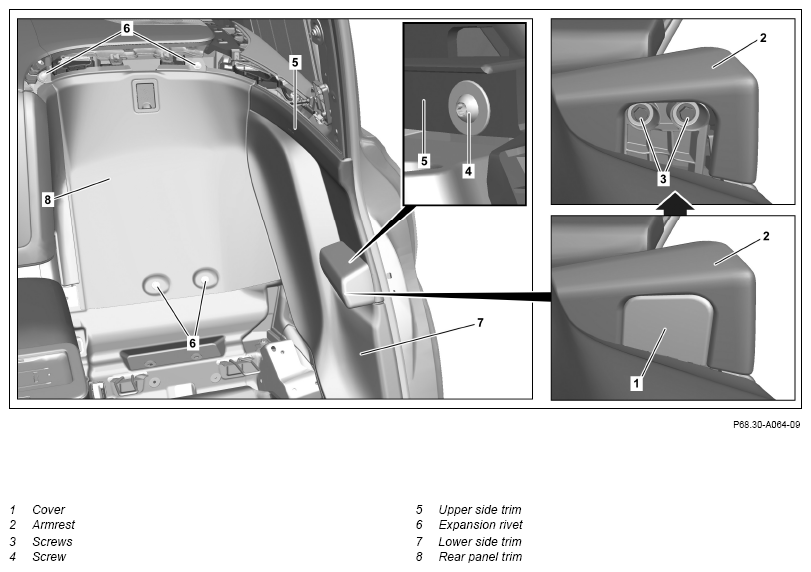

4	Unclip cover panel (1) from armrest (2) and remove.
5	Unscrew screws (3) and remove armrest (2).
6	Unscrew screw (4).
7	Unclip upper side trim (5) and remove.	Long wedge	Fig 2
8	Remove expansion rivets (6).	Dismantling tool	Fig 1
9	Unclip lower side trim (7) and take it out of the vehicle along with the rear panel trim (8).	Be sure that the mounting clamps on the lower side trim (7) and on the body are seated correctly. Long wedge	Fig 2

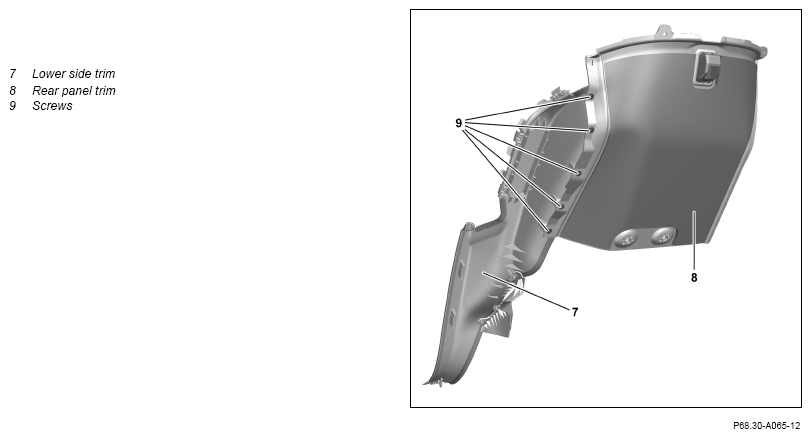

10	Unscrew screws (9) and remove the lower side trim (7) from the rear panel trim (8).	When replacing lower side trim (7).
11	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
