Retrofit Luggage Net For Passenger-Side Footwell - AZ68.50-P-0007ME

Model 167

as of model year 2022

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Work preparation
1	Fabricate drilling template for luggage net holder(s).		AZ68.50-P-0007-01ME

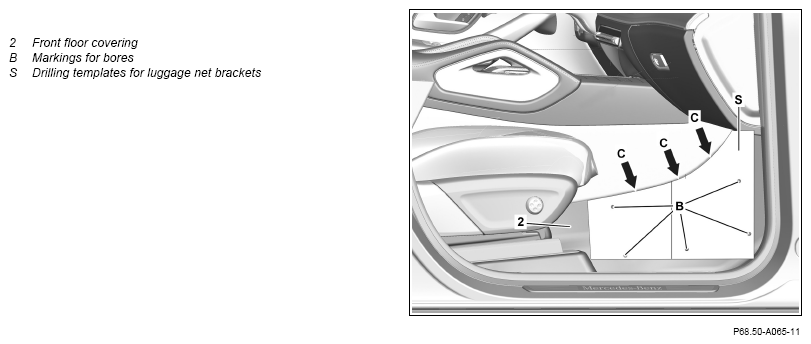

2	Position drilling template for luggage net holder(s) on front floor covering (2) on front passenger side.	The contour of the drilling template for the luggage net holder(s) must correspond with the contour of the center console (arrow C). MODEL 167.### 2# Position the drilling template for the luggage net holder(s) so that it is mirror-inverted.
3	Transfer marking for bores (B) to front floor covering (2) using a suitable pen.
	Remove

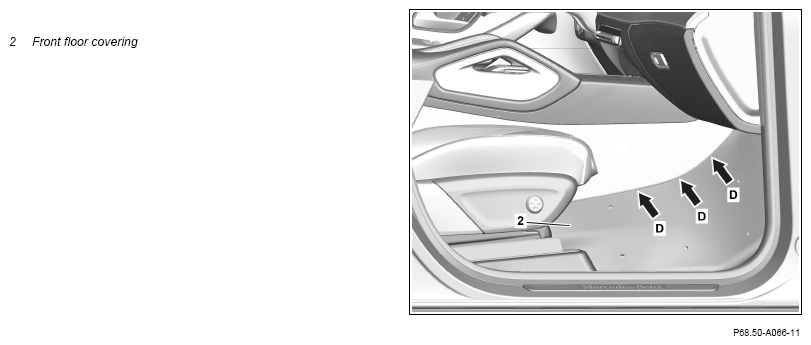

4	Remove the front floor covering (2) on the front passenger side in the area of the center console (arrow D).
		Do not unfasten or remove front passenger seat and door sill.	AR68.80-P-0008ME
	Install

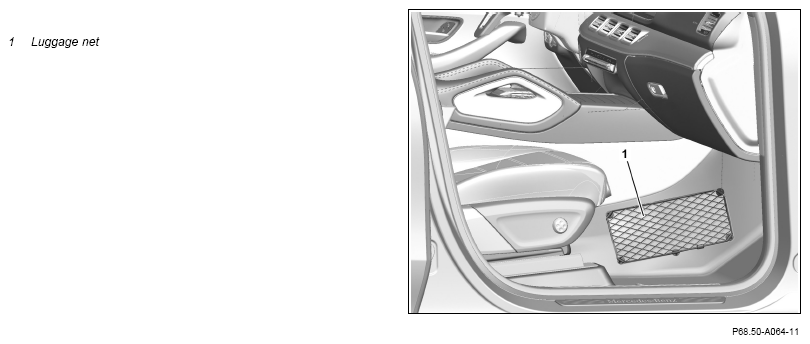

5	Retrofit luggage net (1) with holder.		AZ68.50-P-0007-02EW
		Graduated drill	Fig 1
6	Attach the front floor covering (2) on the front passenger side in the area of the center console (arrow D).
			AR68.80-P-0008ME
	Document retrofitted equipment using vehicle documentation (VeDoc)
7	Attach note "Luggage net in front passenger side footwell retrofitted as per AZ68.50-P-0007ME" under the field organization texts to design group 68.

Fig 1: Identifying Graduated Drill (450 589 00 28 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see Xentry Portal Parts information)	Parts kit for luggage net in front passenger side footwell	1
