Remove/Install Head Restraint On Front Seat - AR91.16-P-0040ME
Model 167
MODIFICATION NOTES
| 02.02.2021 | Document completely revised. | Operation steps 1 to 8 |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove seat backrest trim. | Model 167 with code 254 (Electrically adjustable seat cushion depth and head restraints in the front) Model 167 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
AR91.10-P-1912ME |
| 2 | Move electric head restraint (2) all the way down. | Model 167 with code 254 (Electrically adjustable seat cushion depth and head restraints in the front) Model 167 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
|

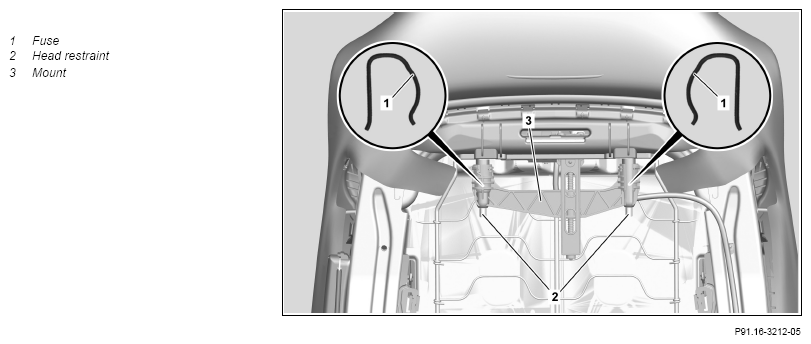

| 3 | Remove locking clips (1). | Model 167 with code 254 (Electrically adjustable seat cushion depth and head restraints in the front) Model 167 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
|
| 4 | Mask off detent notch (4) on right head restraint guide using tape (02). | Model 167 with code 254 (Electrically adjustable seat cushion depth and head restraints in the front) Model 167 with code 275 (Memory Package (driver's seat, steering column and mirror)) Tesa 7140 adhesive tape (12 mm) |
*BR00.45-Z-1134-02A |
| 5 | Adjust seat backrest toward rear. | Model 167 with code 254 (Electrically adjustable seat cushion depth and head restraints in the front) Model 167 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
|
| 6 | Guide head restraint (2) out of mount (3). | ||
| 7 | Remove head restraint (2). | ||
| 8 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1134-02A | Tesa 7140 adhesive tape (12 mm) | A 009 989 10 85 |
