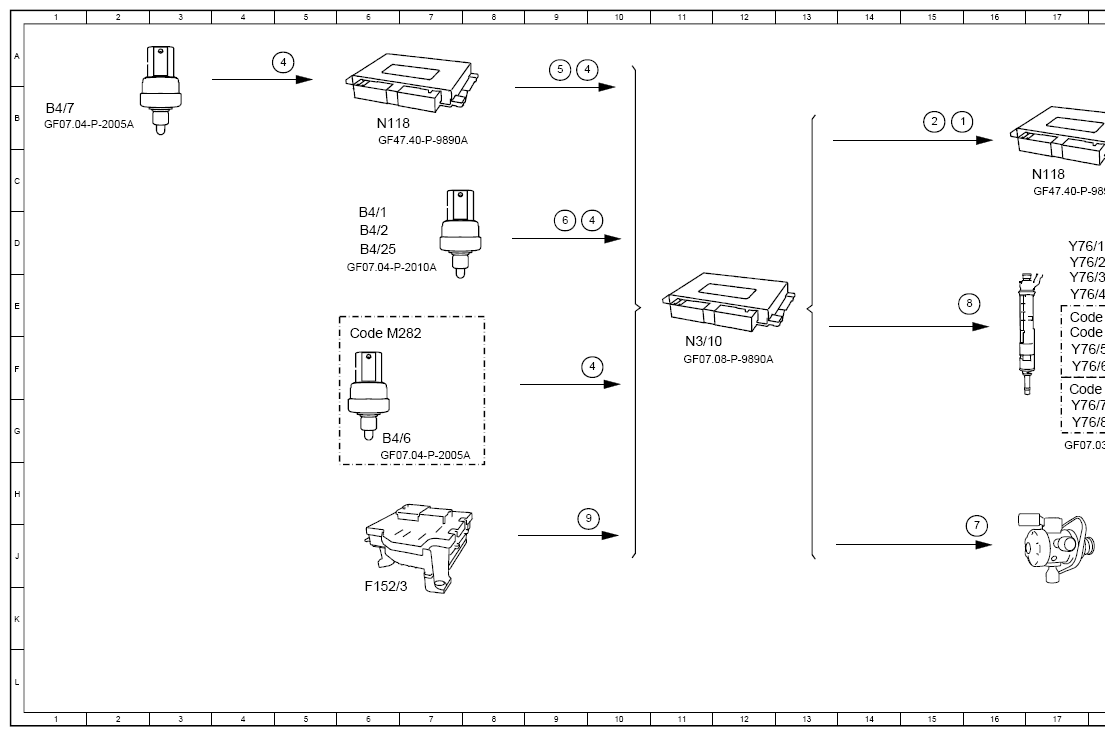

Function Schematic For Fuel Supply System - PE47.00-P-2500-97C

Engine 139 in model 118, 177, 247

Engine 256 in model 213, 238 as of model year 2021

Engine 256, 264 in model 167

Engine 260, 282 in model 118, 177, 247

Engine 264 in model 213, 238, 257 as of model year 2021

Code: Designation: Position:
1 Fuel pump, request ON 15B
2 Fuel pump, specified pressure request 15B
3 Fuel pump, actuation 20B
4 Fuel pressure, signal 5A
4 Fuel pressure, signal 10D
4 Fuel pressure, signal 9A
4 Fuel pressure, signal 10F
5 Fuel pressure, status 9A
6 Fuel temperature, signal 9D
7 Quantity control valve, actuation 16J
8 Fuel injectors, actuation 16E
9 Circuit 87, status 9H
B/1 Fuel tank fuel level indicator fill level sensor, left 6D
B/2 Fuel tank fuel level indicator fill level sensor, right 6D
B/25 Fuel pressure and temperature sensor 6D
B/6 Fuel high-pressure sensor 6G
B/7 Fuel pressure sensor 1B
Code M177 V8 SPARK-IGNITION ENGINE M177 - AMG 18E
Code M177 V8 SPARK-IGNITION ENGINE M177 - AMG 18F
Code M256 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 18F
Code M282 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 6F
F15/3 Engine compartment fuse and relay module 6K
M3 Fuel pump (FP) 21C
N118 Fuel pump control unit 6B
N118 Fuel pump control unit 17C
N/10 ME-SFI [ME] control unit 11F
Y7/1 Cylinder 1 fuel injector 17D
Y7/2 Cylinder 2 fuel injector 17D
Y7/3 Cylinder 3 fuel injector 17E
Y7/4 Cylinder 4 fuel injector 17E
Y7/5 Cylinder 5 fuel injector 17F
Y7/6 Cylinder 6 fuel injector 17F
Y7/7 Cylinder 7 fuel injector 17G
Y7/8 Cylinder 8 fuel injector 17G
Y94 Quantity control valve 18J
G14690829Courtesy of MERCEDES-BENZ USA
G14690830Courtesy of MERCEDES-BENZ USA
