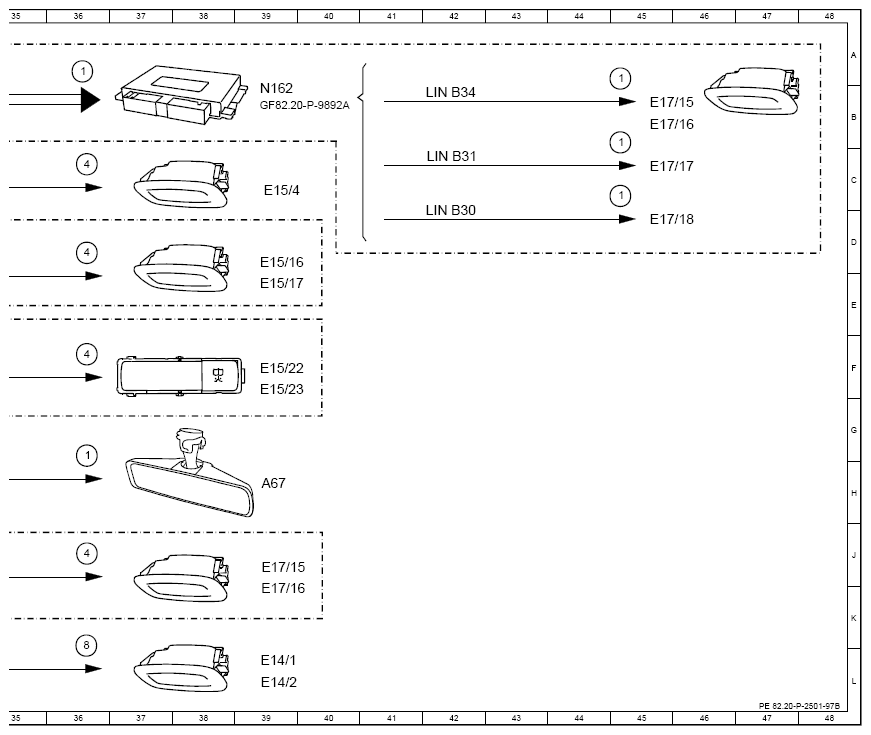

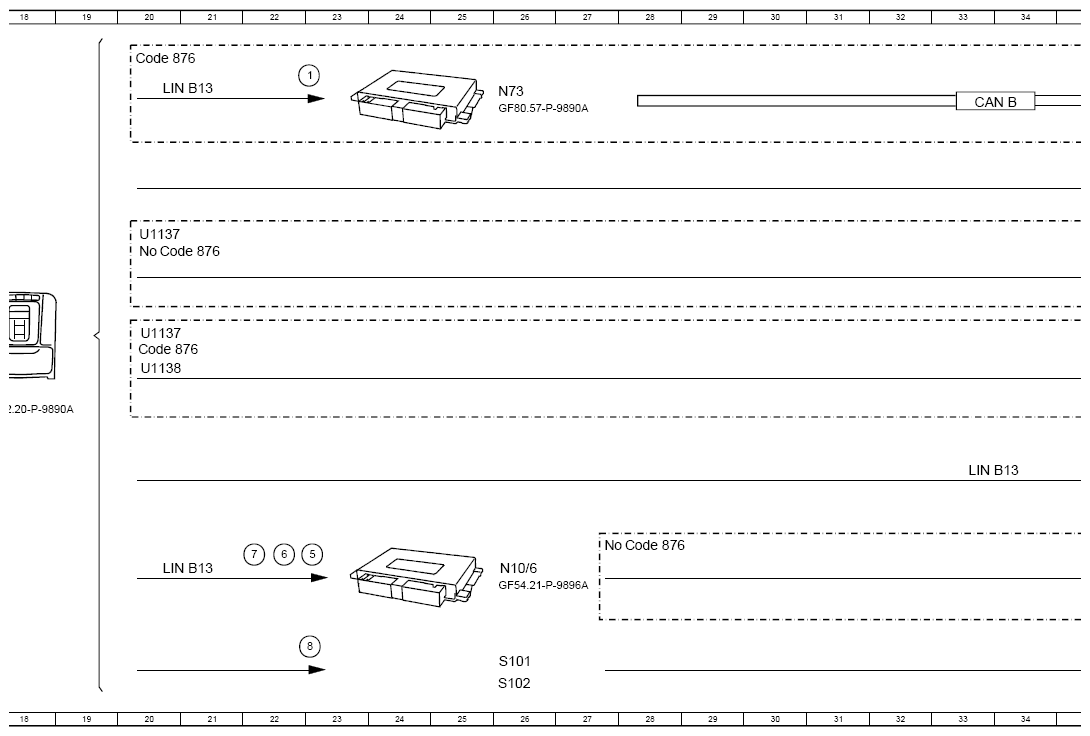

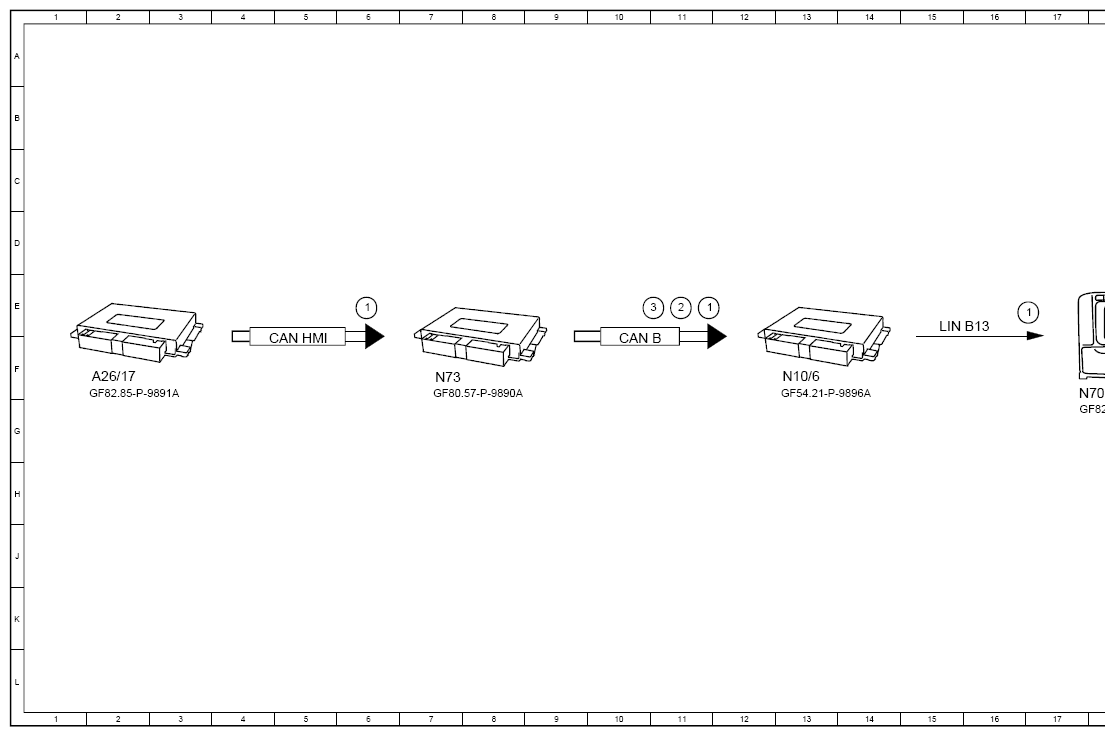

Function Schematic For Manual Interior Lighting Control - PE82.20-P-2501-97B
Model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Interior lamp, request | 11E |
| 1 | Interior lamp, request | 6E |
| 1 | Interior lamp, request | 17E |
| 1 | Interior lamp, request | 36G |
| 1 | Interior lamp, request | 23A |
| 1 | Interior lamp, request | 36A |
| 1 | Interior lamp, request | 45A |
| 1 | Interior lamp, request | 45B |
| 1 | Interior lamp, request | 45C |
| 2 | Circuit 15, status | 11E |
| 3 | Central locking, status | 10E |
| 3 | Central locking, status | 10E |
| 4 | Interior lamp, actuation | 36F |
| 4 | Interior lamp, actuation | 36D |
| 4 | Interior lamp, actuation | 36C |
| 4 | Interior lamp, actuation | 36J |
| 5 | Dome lamp button, status | 23J |
| 6 | Front reading lamp button, status | 22J |
| 7 | Rear passenger compartment reading lamp button, status | 22J |
| 8 | Power supply, status ON | 23K |
| 8 | Power supply, status ON | 36K |
| A26/17 | Head unit | 2F |
| A67 | Inside rearview mirror | 39H |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 33B |
| CAN HMI | User interface CAN | 5F |
| Code 876 | Interior lights package | 28J |
| Code 876 | Interior lights package | 20A |
| Code 876 | Interior lights package | 20F |
| Code 876 | Interior lights package | 20D |
| E14/1 | Left sun visor mirror lamp | 39L |
| E14/2 | Right sun visor mirror lamp | 39L |
| E15/16 | Left rear compartment lamp | 39D |
| E15/17 | Right rear compartment lamp | 39E |
| E15/22 | Left rear reading lamp | 39F |
| E15/23 | Right rear reading lamp | 39F |
| E15/4 | Central load compartment dome lamp | 39C |
| E17/15 | Right front footwell lamp | 45B |
| E17/15 | Right front footwell lamp | 39J |
| E17/16 | Left front footwell lamp | 39K |
| E17/16 | Left front footwell lamp | 45B |
| E17/17 | Right rear footwell lamp | 45C |
| E17/18 | Left rear footwell lamp | 45D |
| LIN B13 | Roof LIN | 15E |
| LIN B13 | Roof LIN | 33H |
| LIN B13 | Roof LIN | 20B |
| LIN B13 | Roof LIN | 20J |
| LIN B30 | Driver door ambiance illumination LIN | 42D |
| LIN B31 | Front passenger door ambiance illumination LIN | 42C |
| LIN B34 | Cockpit ambiance illumination LIN | 42B |
| N10/6 | Front SAM control unit | 13F |
| N10/6 | Front SAM control unit | 26J |
| N162 | Ambiance illumination control unit | 39B |
| N70 | Overhead control panel control unit | 17F |
| N73 | Electronic ignition switch control unit | 7F |
| N73 | Electronic ignition switch control unit | 26B |
| S101 | Left front mirror lamp switch | 26L |
| S102 | Right front mirror lamp switch | 26L |
| U1137 | Valid for model 167.3 | 20F |
| U1137 | Valid for model 167.3 | 20D |
| U1138 | Valid for model 167.9 | 20F |
