Remove/Install Windshield Wiper System - AR82.30-P-0001ME
Model 167
MODIFICATION NOTES
| 13.05.2019 | Operation step added. | Operation step 5. | |
| 29.05.2019 | Commissioning added. | Operation step 10. |
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A -500 | |
| Remove/install | |||

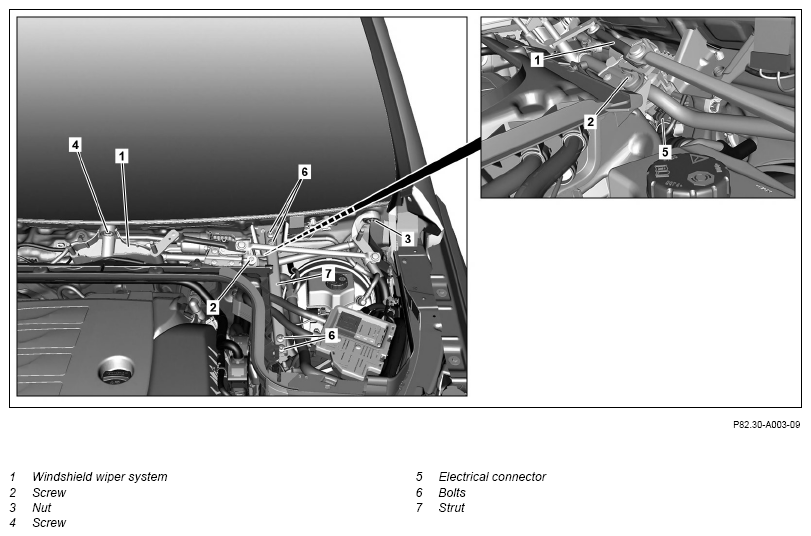

| 1 | Remove cover of air/water duct. | AR83.10-P-1411ME | |
| 2 | Unscrew screws (6) and take off strut (7). | *BA62.30-P-1005-02I | |
| 3 | Release and disconnect electrical connector (5). | ||
| 4 | Remove bolt (2). | *BA82.30-P-1003-01R | |
| 5 | Pull water drain (9) out upwards and remove. | ||
| 6 | Remove nut (3). | *BA82.30-P-1002-01R | |
| 7 | Unscrew bolt (4). | *BA82.30-P-1002-01R | |
| 8 | Remove windshield wiper system (1). | ||
| 9 | Install in the reverse order. | ||
| Initial startup | |||
| 10 | Commission windshield wiper system (1). | If the windshield wiper system (1) was replaced. | |
| AD00.00-P-2000-06ME |
FROND END WITH REINFORCEMENT
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA62.30-P-1005-02I | Screw, support to suspension strut tower/firewall | M10 | Nm | 31 |
WINDSHIELD WIPER
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA82.30-P-1002-01R | Bolt/nut, windshield wiper system to body | M8 | Nm | 20 |
| M6 | Nm | 8 | ||
WINDSHIELD WIPER
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA82.30-P-1003-01R | Screw/bolt, windshield wiper system to bracket | Nm | 8 |
