Central Locking System Inside Door Handle Switch, Basic Function - GF80.20-P-2014A

Model All (4xWD, CAR)

Overview

This document contains information on:

• General
• Function

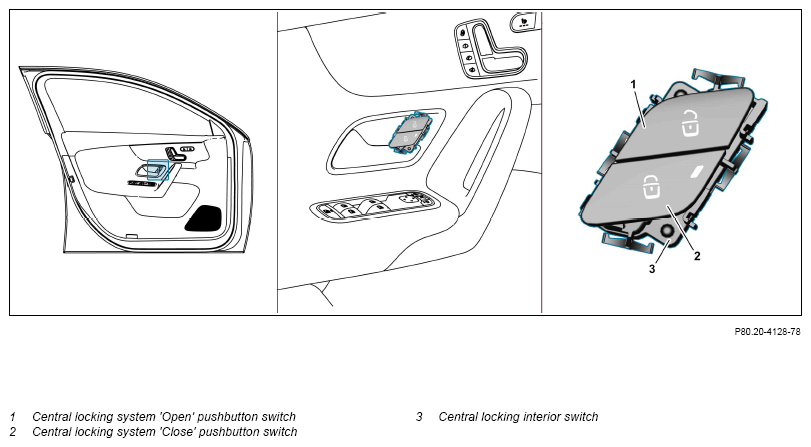

Fig 1: Central Locking System Inside Door Handle Switch Components Location - Model All (4xWD, Car)

Courtesy of MERCEDES-BENZ USA

Example illustration

General

The central locking inside door handle switch (3) is located in the driver's door trim. In vehicles with USA version and/or Canada version, a central locking inside door handle switch is also located in the front passenger door trim. Depending on the vehicle model (e.g. model 464), the central locking inside door handle switch is installed in the cockpit and without an integrated indicator lamp.

Function

Via the central locking inside door handle switch, the locking/unlocking of the central locking system can be triggered and the automatic locking/unlocking activated and deactivated.

The respective front door control unit reads in the status of the relevant central locking button and actuates the integrated indicator lamp.
