Remove/Install Rear Seat Control Unit - AR91.29-P-1570MEX
Model 167.9
except code M036 (Maybach version)
Shown on right rear seat with code 226 (7 seats with 3rd seat row)

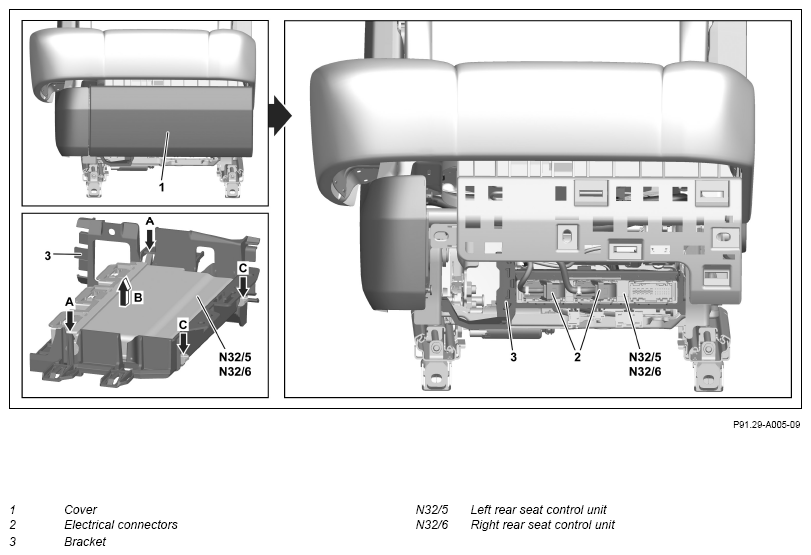

Fig 1: Rear Seat Control Unit Components Location - Model 167.9 Except Code M036 (Shown On Right Rear Seat With Code 226)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear seat. | Model 167.9 with code 226 (7-seater with 3rd seat row) except code M036 (Maybach version) |
AR91.12-P-4026ME |
| 2 | Unclip and remove trim (1). | Fig 2 | |
| 3 | Release and disconnect electrical connectors (2). | ||
| 4 | Release rear seat control unit (N32/5, N32/6) at front left and right from holder (3) (arrows A) and simultaneously lift at front (arrow B). | ||
| 5 | Take rear seat control unit (N32/5, N32/6) forward out of holder (3). | ||
| 6 | Install in the reverse order. | ||
| 7 | Commission rear seat control unit (N32/5, N32/6). | ||
| AD00.00-P-2000-06ME |
