Remove/Install Engine Compartment Service Flap - AR01.10-P-2405-02MSC

Engine 256.9 In Model 167

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1002-04A	M6X1	Nm	9	13

WINDSHIELD WIPER

Number	Designation		Model 167
BA82.30-P-1001-01R	Nut to wiper arm on front windshield wiper system	Nm	30

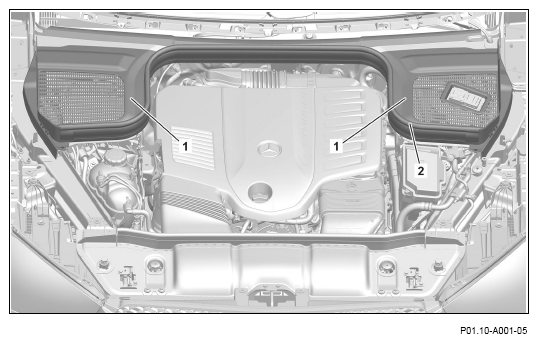

Remove covers (1).
Remove sealing (2).
Remove wiper arms .

Courtesy of MERCEDES-BENZ USA

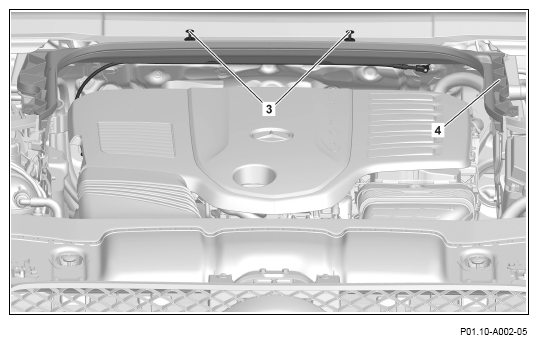

Remove expansion rivets (3).
Remove water deflector.
Release and remove cover (4).

Courtesy of MERCEDES-BENZ USA

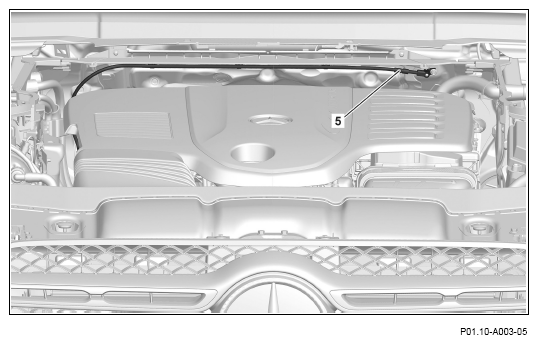

Remove inerting system line (5) from partitions .

Courtesy of MERCEDES-BENZ USA

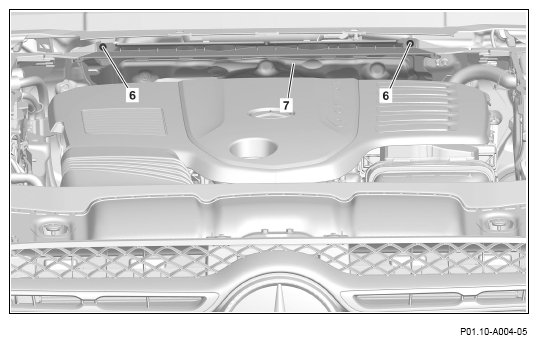

Remove screw/bolts (6).
Remove upper firewall plate (7).
Install in the reverse order.

Courtesy of MERCEDES-BENZ USA
