Remove/Install Low Temperature Circuit Cooler - AR09.41-P-6936MNO
Engine 176, 177 In Model 167
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

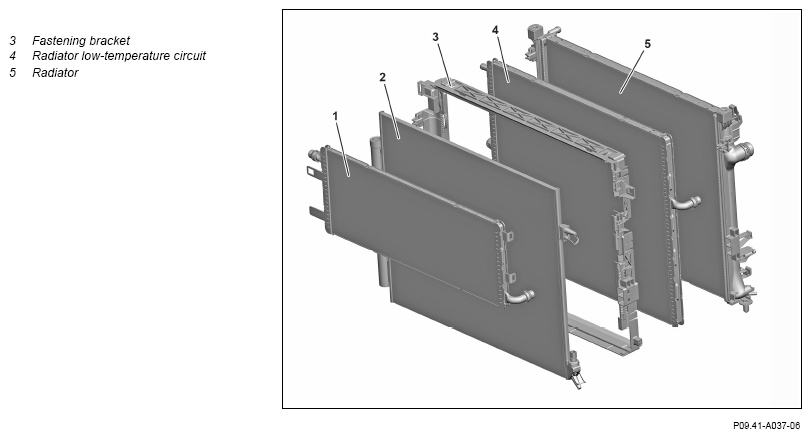

| 1 | Remove radiator (5). | AR20.20-P-3865MNO | |
| 2 | Remove low-temperature circuit cooler (4) from the mounting support (3). | ||
| 3 | Install in the reverse order. |
