Remove/Install Heat Shield Of Turbocharger - AR09.40-P-6044MNP
Engine 177 In Model 167
MODIFICATION NOTES
| 02.03.2020 | New operation step 2 added | Operation step 2 |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove ME-SFI control unit (N3/10) and place to one side with the connected coolant lines. | AR07.08-P-7013MNO | |
| 2 | Remove left lambda sensor upstream of catalytic converter (G3/3) and right lambda sensor upstream of catalytic converter (G3/4). | Left lambda sensor | AR07.04-P-0081MNO |
| Right lambda sensor | AR07 04-P-0083MNO | ||

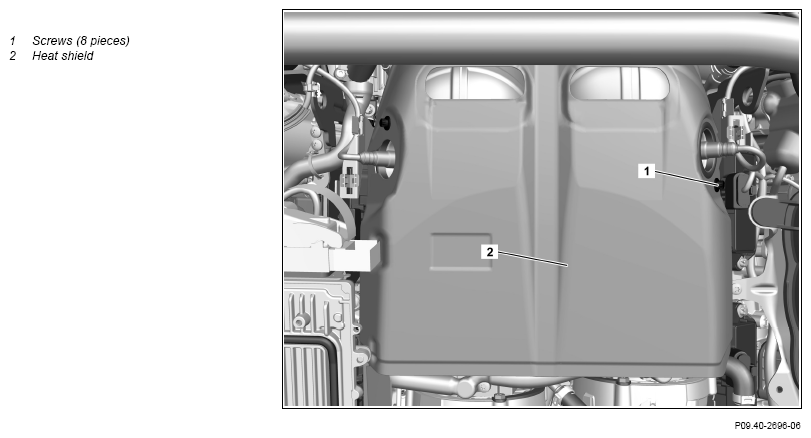

| 3 | Remove bolts (1). | *BA09.40-P-1008-01ZA | |
| *BA09.40-P-1006-01ZA | |||
| 4 | Remove heat shield (2). | ||
| 5 | Install in the reverse order. |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1008-01ZA | Bolt, rear heat shield to bracket | Nm | 9 |
