Remove/Install Exhaust Aftertreatment Unit - AR49.20-P-1500MSC

Model 167 With Engine 256.9

MODIFICATION NOTES

15.09.2021 Remove heat shield between coolant expansion reservoir and exhaust gas aftertreatment unit (1). Operation step 5.

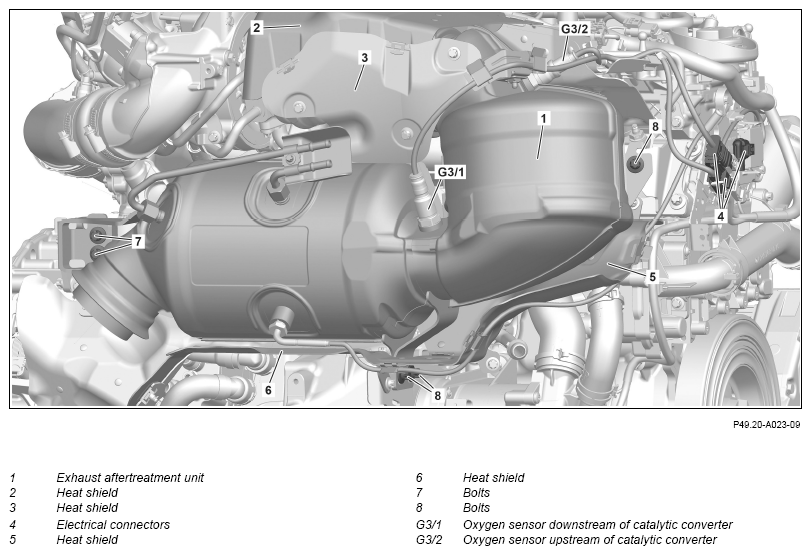

Fig 1: Exhaust Aftertreatment Unit Components Location - Model 167 With Engine 256.9
G15038321Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Remove upper engine cover.   AR01.10-P-2405MSC
    INSTALLATION IMPORTANT Do not install upper engine cover until after the leak test.
2 Remove heat shield (3). Engine 256.9 in model 167
with code 961 (Exhaust system with OPF, generation 2.0)
    TORQUE SPECIFICATION Nut/screw, heat shield to exhaust gas turbocharger/heat shield *BA09.40-P-1004-02MRT
3 Remove heat shield (2). TORQUE SPECIFICATION Nut/screw, heat shield to exhaust gas turbocharger/heat shield *BA09.40-P-1004-02MRT
4 Release, disconnect electrical connector of differential pressure sensor and remove differential pressure sensor with bracket from heat shield.   AR07.04-P-0025MSC
5 Remove heat shield between coolant expansion reservoir and exhaust gas aftertreatment unit (1).
6 Release, disconnect electrical connectors (4) and expose electric lines.
7 Remove lower center engine compartment lining.   AR61.20-P-1105ME
    INSTALLATION IMPORTANT Install bottom center engine compartment lining only after the leak test.
8 Remove heat shield (6). TORQUE SPECIFICATION M6X1 *BA00.10-P-1002-04A
9 Remove heat shield (5). TORQUE SPECIFICATION M6X1 *BA00.10-P-1002-04A
10 Remove clamp between exhaust gas aftertreatment unit (1) and exhaust system. INSTALLATION IMPORTANT Replace clamp.
    TORQUE SPECIFICATION Clamp at catalytic converter and front exhaust system *BA49.10-P-1002-02P
11 Remove bolts (7). TORQUE SPECIFICATION Bolt, catalytic converter to bracket *BA49.10-P-1005-02P
12 Remove clamp between exhaust gas turbocharger and exhaust gas aftertreatment unit (1). INSTALLATION IMPORTANT Replace clamp.
Replace seal.
    TORQUE SPECIFICATION Profile clamp, exhaust system to exhaust gas turbocharger *BA09.40-P-1001-02MRT
13 Unscrew the screws (8). TORQUE SPECIFICATION Bolt, catalytic converter to bracket *BA49.10-P-1005-02P
14 Remove exhaust gas aftertreatment unit (1) with differential pressure sensor.
15 Remove lambda sensor upstream of catalytic converter (G3/2). When replacing the exhaust gas aftertreatment unit (1).
      AR07.04-P-0086MSC
16 Remove lambda sensor downstream of catalytic converter (G3/1). When replacing the exhaust gas aftertreatment unit (1).
      AR07.04-P-0085MSC
17 Remove differential pressure sensor from exhaust gas aftertreatment unit (1). When replacing the exhaust gas aftertreatment unit (1).
      AR07.04-P-0025MSC
18 Remove temperature sensor of gasoline particulate filter. When replacing the exhaust gas aftertreatment unit (1).
      AR49.20-P-0200MSC
CLEAN Clean
19 Remove combustion and corrosion residue at connecting points. Assembly cleaner *BR00.45-Z-1028-04A
20 Install in the reverse order.
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
21 Perform an engine test run; check the engine for proper operation and the exhaust system for leaks.
22 Install bottom center engine compartment lining.   AR61.20-P-1105ME
23 Install upper engine cover.   AR01.10-P-2405MSC
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6X1 Nm 9 13
TURBOCHARGER

Number Designation Engine 256.9
BA09.40-P-1001-02MRT Profile clamp, exhaust system to exhaust gas turbocharger Nm 17
TURBOCHARGER

Number Designation Engine 256.9
BA09.40-P-1004-02MRT Nut/screw, heat shield to exhaust gas turbocharger/heat shield Nm 8
EXHAUST SYSTEM

Number Designation Model 167 with engine 256
BA49.10-P-1002-02P Clamp at catalytic converter and front exhaust system Nm 25
EXHAUST SYSTEM

Number Designation Model 167 with engine 256
BA49.10-P-1005-02P Bolt, catalytic converter to bracket Nm 20
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
