Tightening Pattern For Turbocharger - AR09.40-P-6020-10MRH

Engine 264

TURBOCHARGER

Number Designation Engine 264
BA09.40-P-1001-02C Nut, exhaust gas turbocharger (exhaust manifold) to cylinder head Stage 1 Nm 15
Stage 2 Nm 15

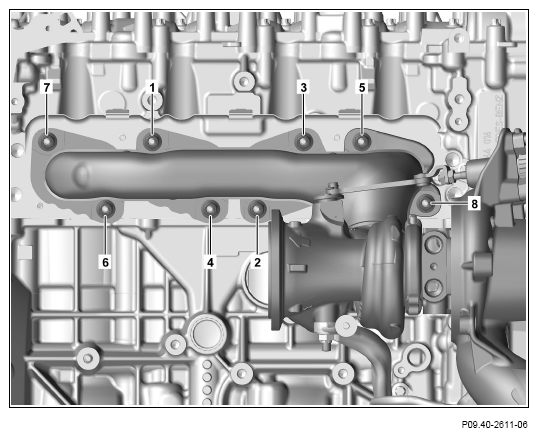

  1. Tighten nuts (1 to 8) in ascending numerical sequence to stage 1 TORQUE SPECIFICATION
  2. Tighten nuts (1 to 8) in ascending numerical sequence to stage 2 TORQUE SPECIFICATION .
G14184992Courtesy of MERCEDES-BENZ USA
