Remove/Install Turbocharger Oil Feed Line - AR09.40-P-6022MSC
Engine 256.9 In Model 167
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405MSC | |
| 2 | Unscrew the bolt (2, 3, 4, 6). | *BA09.40-P-1006-02MRT | |

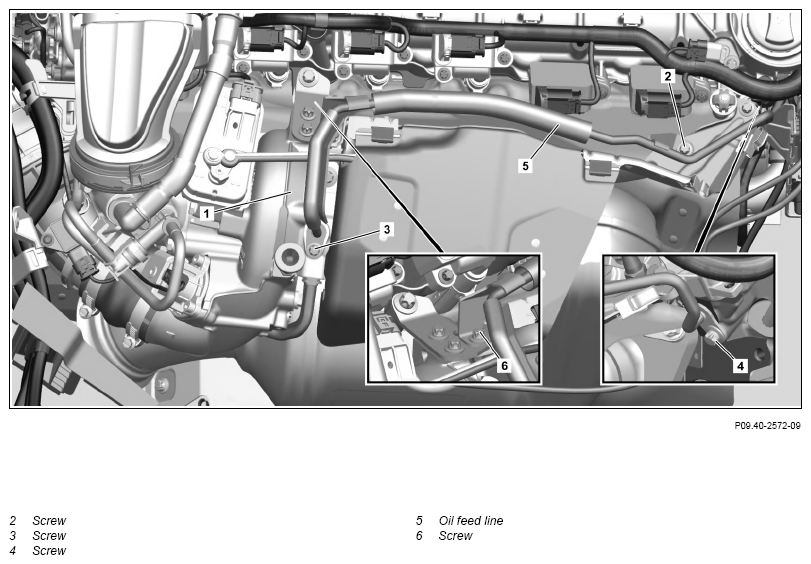

| 3 | Remove the oil feed line (5) and seal the openings with suitable stop plugs. | Fig 1 | |
| 4 | Install in the reverse order. | ||
| 5 | Check engine oil level and correct. | ||
| AP18.00-P-1812SKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 7 | Install upper engine cover. | AR01.10-P-2405MSC |
TURBOCHARGER
| Number | Designation | Engine 256.9 | |||
|---|---|---|---|---|---|
| BA09.40-P-1006-02MRT | Screw, oil feed line to | exhaust gas turbocharger/cylinder head/bracket | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | |||
| Heat shield | Nm | 8 | |||
