Remove/Install Left Heat Shield On Left Turbocharger - AR09.40-P-6026-01XGA
Engine 176 In Model 167
Engine 176 in model 463
as of model year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1007-01ZA | Bolt, side heat shield to cylinder head cover | Nm | 9 |

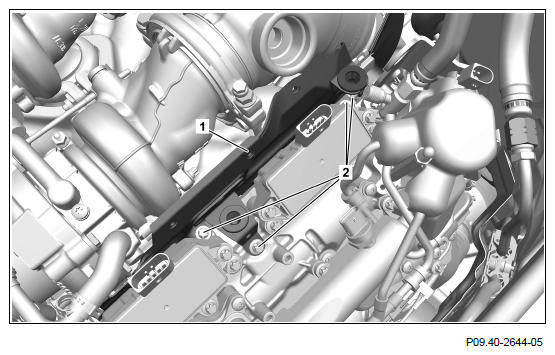

- Remove screw/bolts (2)
.
- Unclip engine wiring harness and electric line of left lambda sensor upstream of catalytic converter (G3/3) at heat shield (1) and place to one side.
- Remove heat shield (1) upwards.
- Check elastomer bearings of heat shield (1) for damage.
If a problem arises
↓
Replace elastomer bearing.
- Install in the reverse order.
