Remove/Install Left Heat Shield On Left Turbocharger - AR09.40-P-6026-01MNM
Engine 177 In Model 167, 217, 222
TURBOCHARGER
| Number |
Designation |
Engine 177 |
| BA09.40-P-1007-01ZA |
Bolt, side heat shield to cylinder head cover |
Nm |
9 |

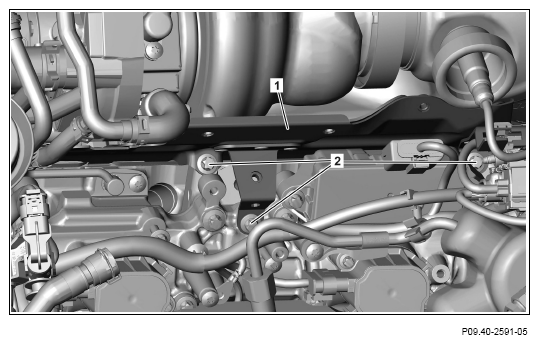

- Remove screw/bolts (2)
.
- Remove heat shield (1).
- Install in the reverse order.
 Courtesy of MERCEDES-BENZ USA
|
