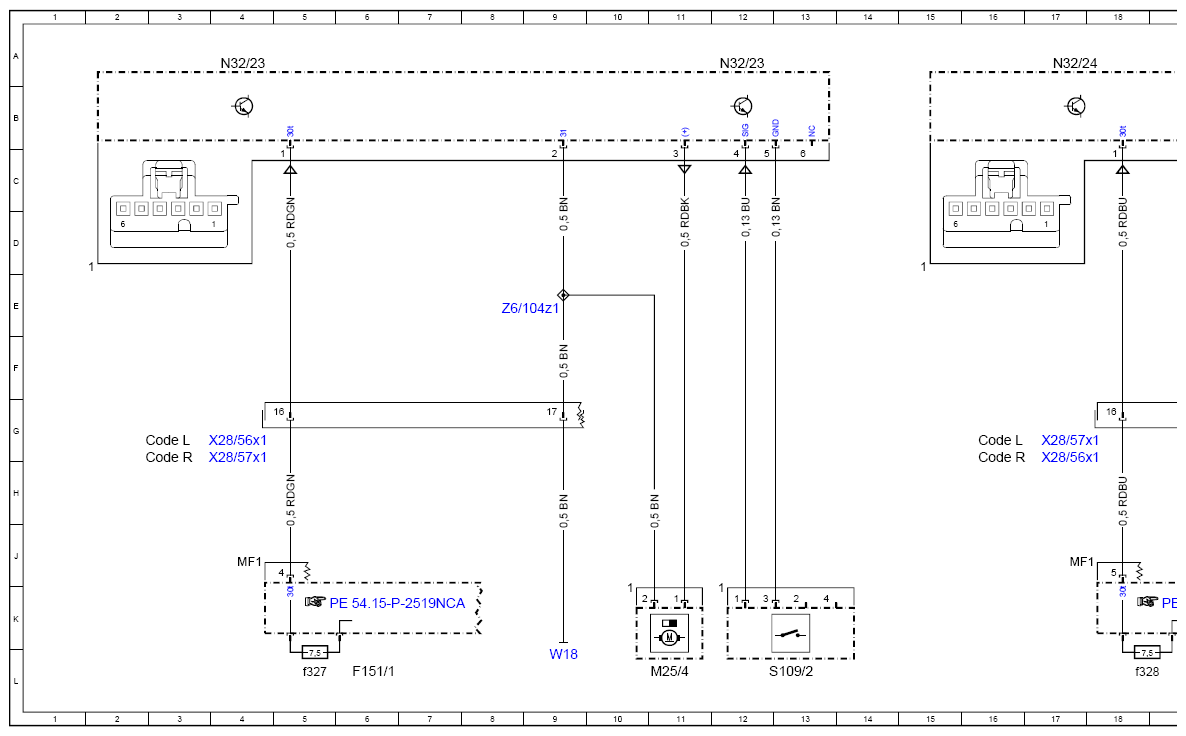

Wiring Diagram For Lumbar Support Control Unit - PE91.29-P-2113-97NCA
Model 167 with code U22 (Lumbar support adjustment) Control units N32/23, N32/24
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code L | LEFT-HAND DRIVE | 35G |
| Code L | LEFT-HAND DRIVE | 35H |
| Code L | LEFT-HAND DRIVE | 2G |
| Code L | LEFT-HAND DRIVE | 16G |
| Code R | RIGHT-HAND DRIVE | 35G |
| Code R | RIGHT-HAND DRIVE | 35J |
| Code R | RIGHT-HAND DRIVE | 2G |
| Code R | RIGHT-HAND DRIVE | 16G |
| F151/1 | Passenger-side A-pillar fuse box | 6L |
| F151/1 | Passenger-side A-pillar fuse box | 19L |
| F151/1f327 | Fuse 327 | 5L |
| F151/1f328 | Fuse 328 | 18L |
| M25/4 | Driver seat lumbar support pneumatic pump | 11L |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 24L |

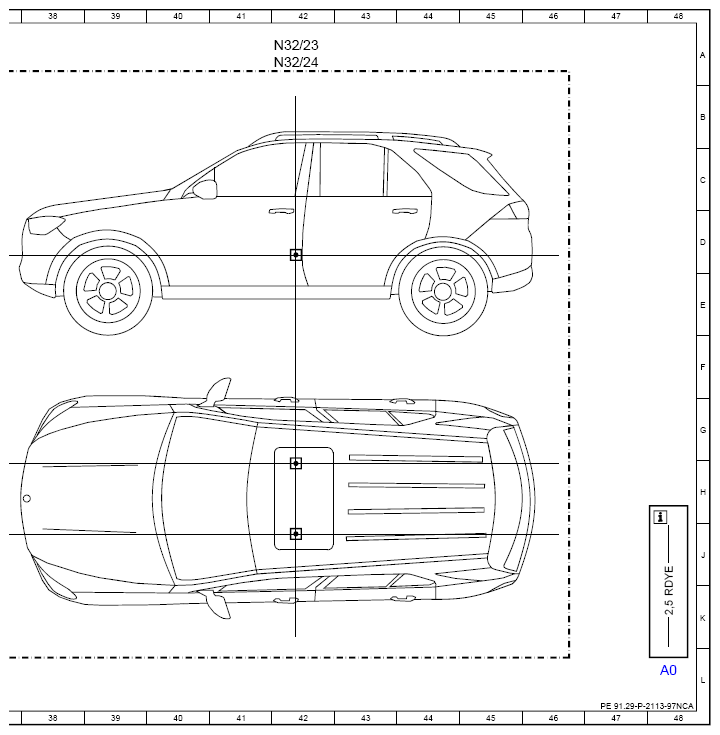

| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 4A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 12A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 32A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 42A |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 36G |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 36H |

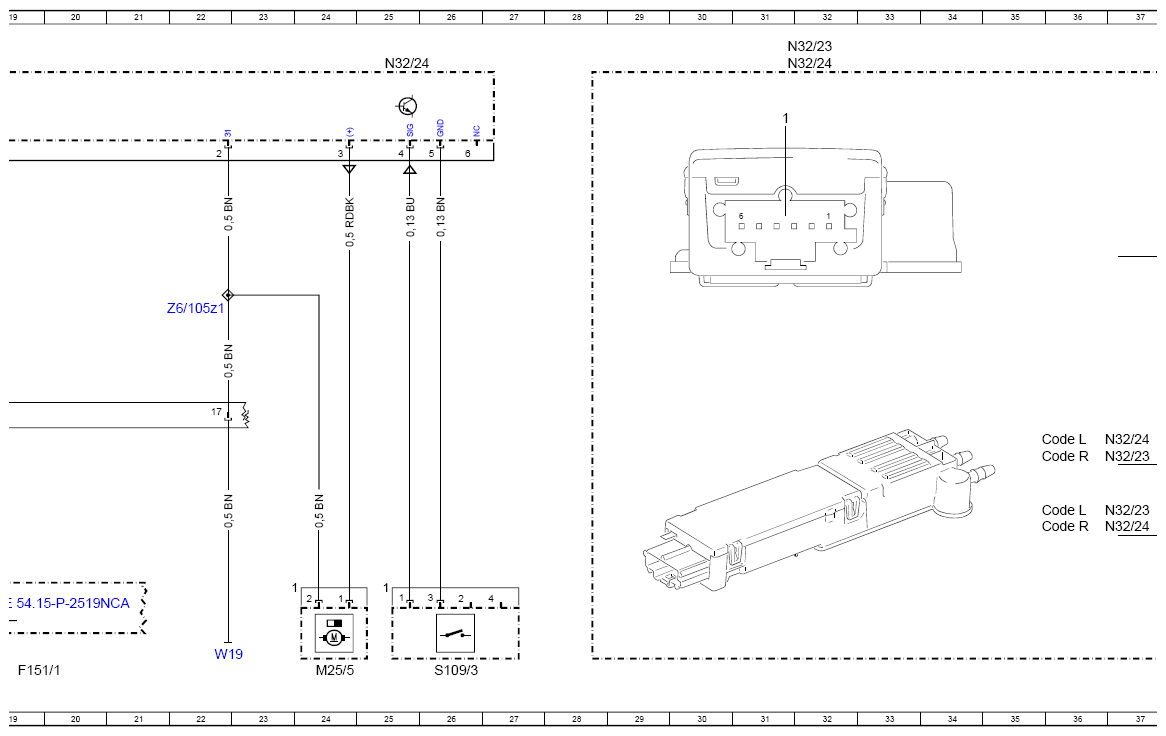

| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 32A |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 17A |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 25A |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 42A |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 36G |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 36J |
| S109/2 | Driver seat lumbar support adjustment switch | 13L |
| S109/3 | Front passenger seat lumbar support adjustment switch | 26L |
| W18 | Left front seat crossmember ground point | 9L |
| W19 | Right front seat crossmember ground point | 22L |
| X28/56x1 | Driver seat electrical connector | 3G |
| X28/56x1 | Driver seat electrical connector | 17G |
| X28/57x1 | Front passenger seat electrical connector | 3G |
| X28/57x1 | Front passenger seat electrical connector | 17G |
| Z6/104z1 | Driver seat lumbar support ground line connector sleeve | 9E |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 22E |
