Remove/Install Desiccant Cartridge - AR83.30-P-6521OID
Model 167

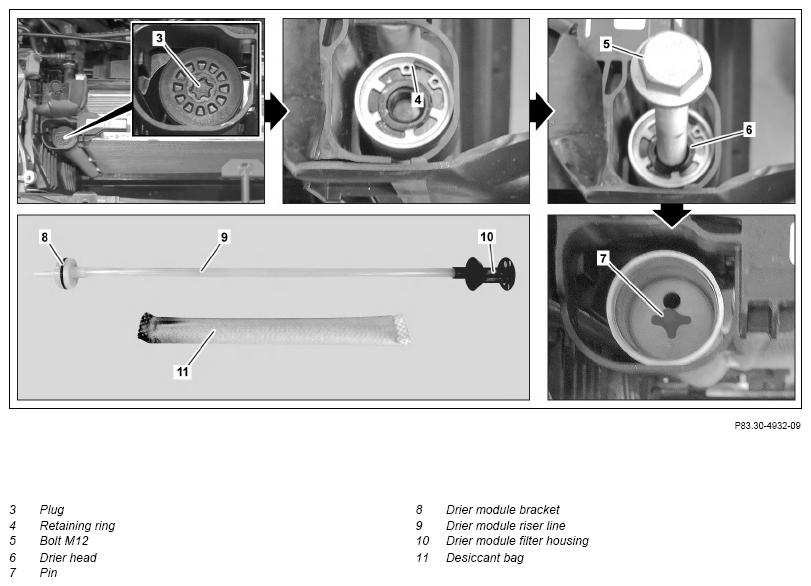

Example illustration
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234y refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove the condenser. | Model 167 with engine 177 | AR83.30-P-6540MNO |
| Model 167 with engine 654, 656 | AR83.30-P-6540OID | ||
| Model 167 with engine 256.9 | AR83.30-P-6540MSC | ||
| Model 167 with engine 274.9 | AR83.30-P-6540MRM | ||
| 2 | Unscrew cap (3). | *BA83.30-P-1006-01U | |
| 3 | Remove circlip (4). | ||
| 4 | Screw in screw M12 (5) into drier head (6) and pull out drier head (6). | ||
| 5 | Remove drier module holder (8) at pin (7) using suitable pliers. | ||
| 6 | Remove drier module riser line (9) together with drier module filter housing (10). | Place new desiccant bag (11) onto drier module riser line (9). |
|
| 7 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA83.30-P-1006-01U | Plug to condenser | Nm | 10 |
