Remove/Install Rear Engine Mount - AR22.10-P-1160MSC

Engine 256.9 In Model 167

MODIFICATION NOTES

22.02.2019

Screw/bolt, rear engine mount to transmission

Model 167

BA22.10-P-1003-03G

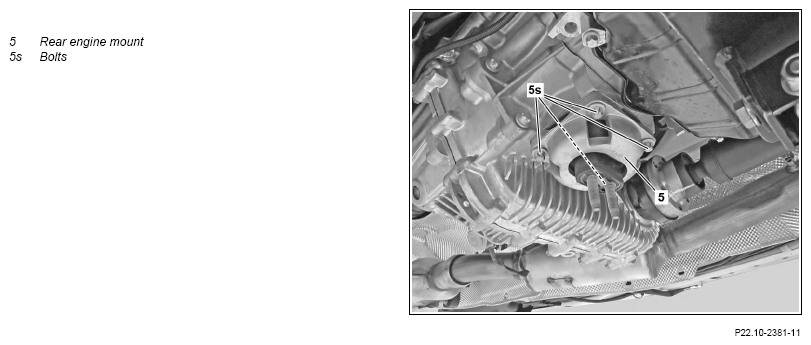

Fig 1: Rear Engine Mount Components Location - Engine 256.9 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Remove rear engine carrier.		AR22.10-P-4360MSC
2	Unscrew screws (5s) and remove rear engine mount (5).	Screw/bolt, rear engine mount to transmission	*BA22.10-P-1003-03G
3	Install in the reverse order.

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 167
BA22.10-P-1003-03G	Screw/bolt, rear engine mount to transmission	Stage 1	Nm	20
		Stage 2	Nm	-
