Remove/Install Right Water-Cooled Charge Air Cooler - AR09.41-P-6828MNO
Engine 176 In Model 167
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove left charge air cooler. | AR09.41-P-6827MNO | |
| 2 | Release and disconnect electrical connector of right throttle valve actuator (M16/61). | ||

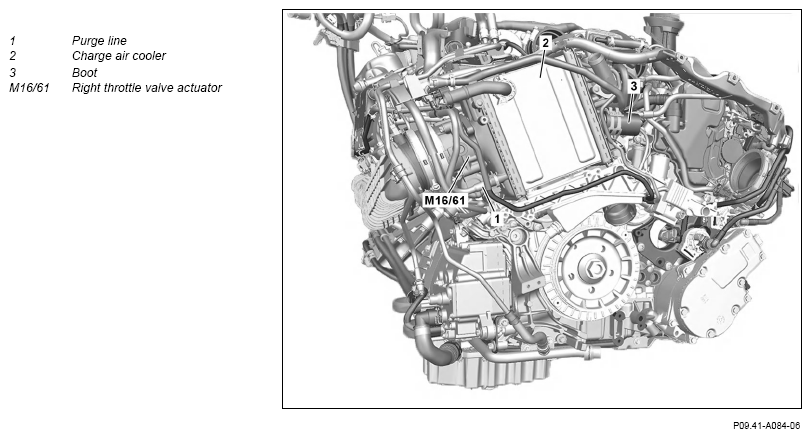

| 3 | Remove purge line (1) at right charge air cooler (2). | ||
| 4 | Remove right charge air cooler (2) upwards. | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| 5 | Check elastomer bearings of right charge air cooler (2) for damage. | If problems exist, ↓ Replace appropriate elastomer bearing. |
|
| 6 | Remove right throttle valve actuator (M16/61). | When replacing the right charge air cooler (2). | AR07.51-P-1403MNO |
| 7 | Remove pressure sensor upstream of right throttle valve (B28/21). | When replacing the right charge air cooler (2). | AR09.41-P-1021MNO |
| 8 | Remove boot (3) from right charge air cooler (2). | When replacing the right charge air cooler (2). |
Fig 2 |
| 9 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
