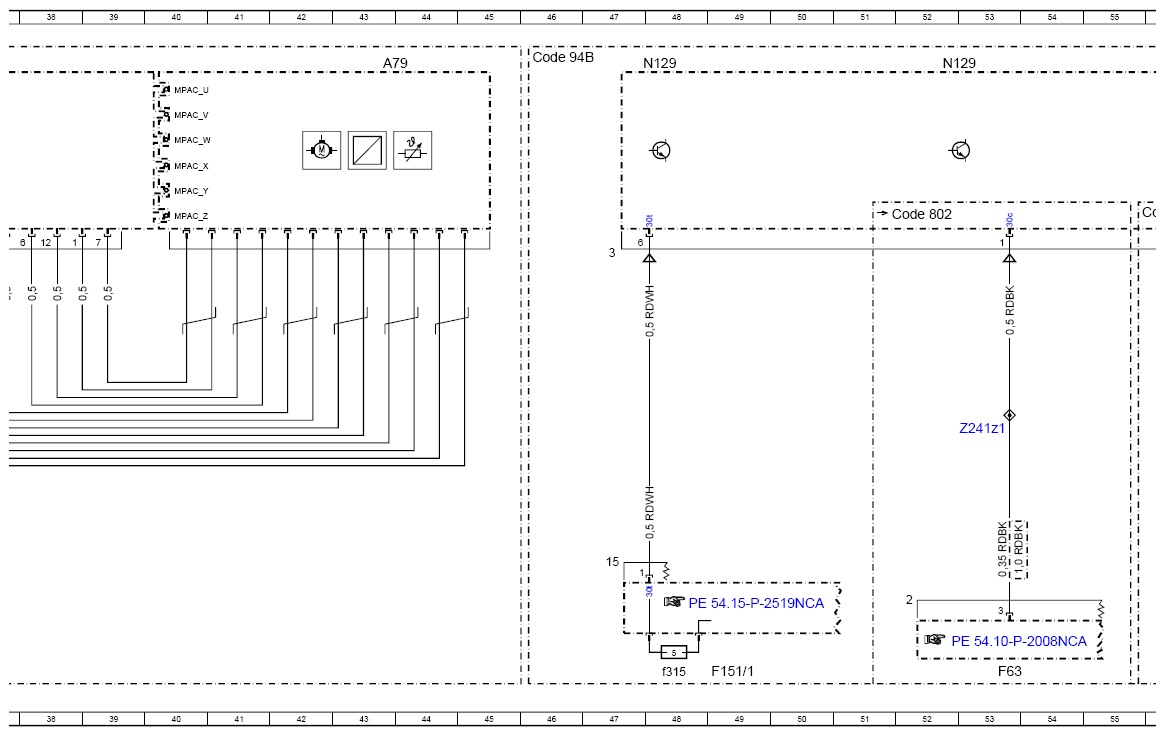

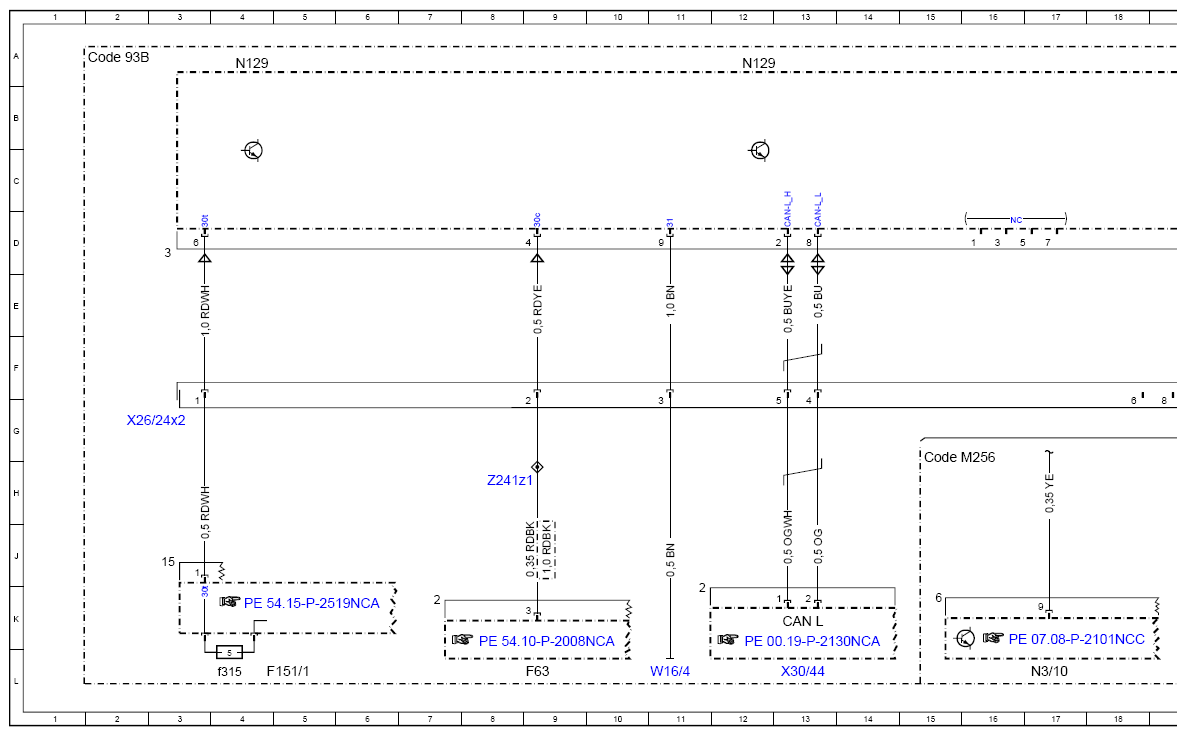

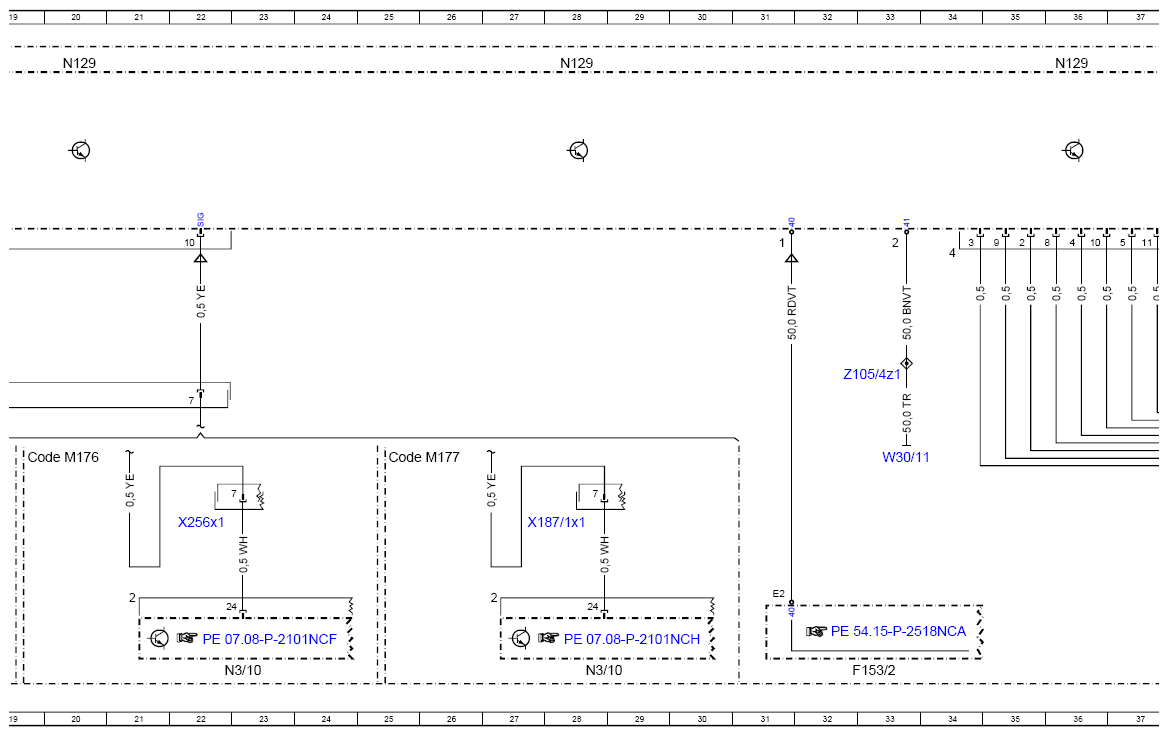

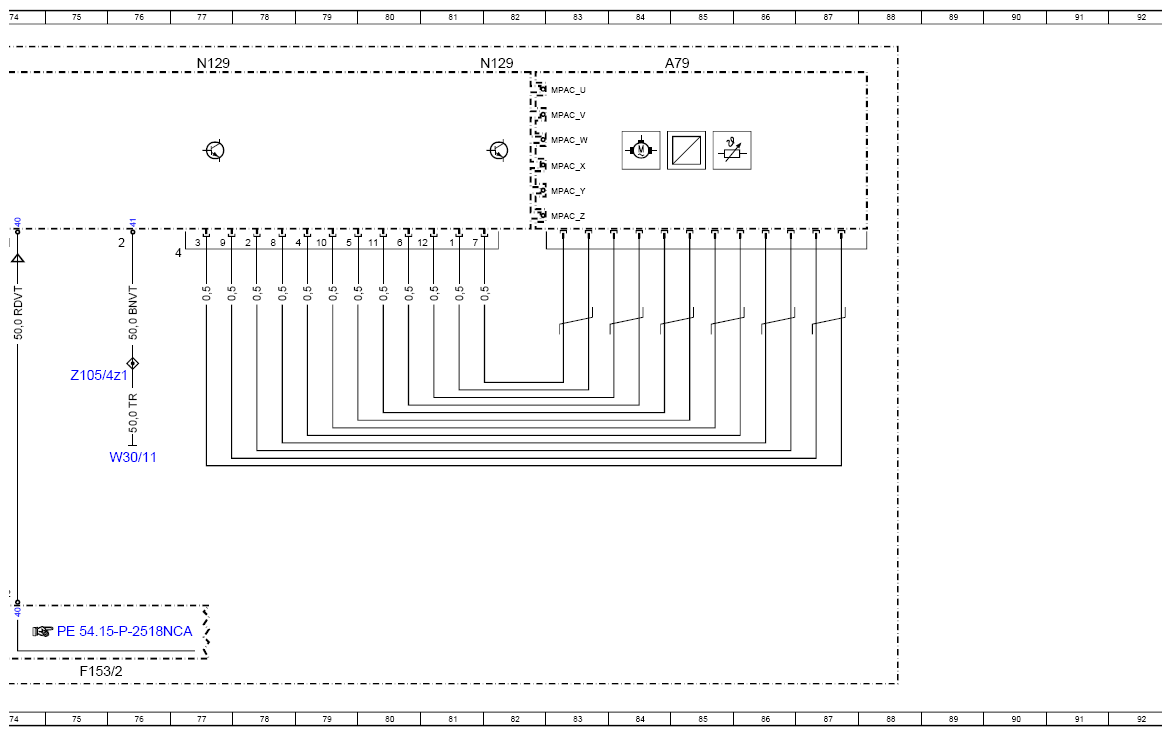

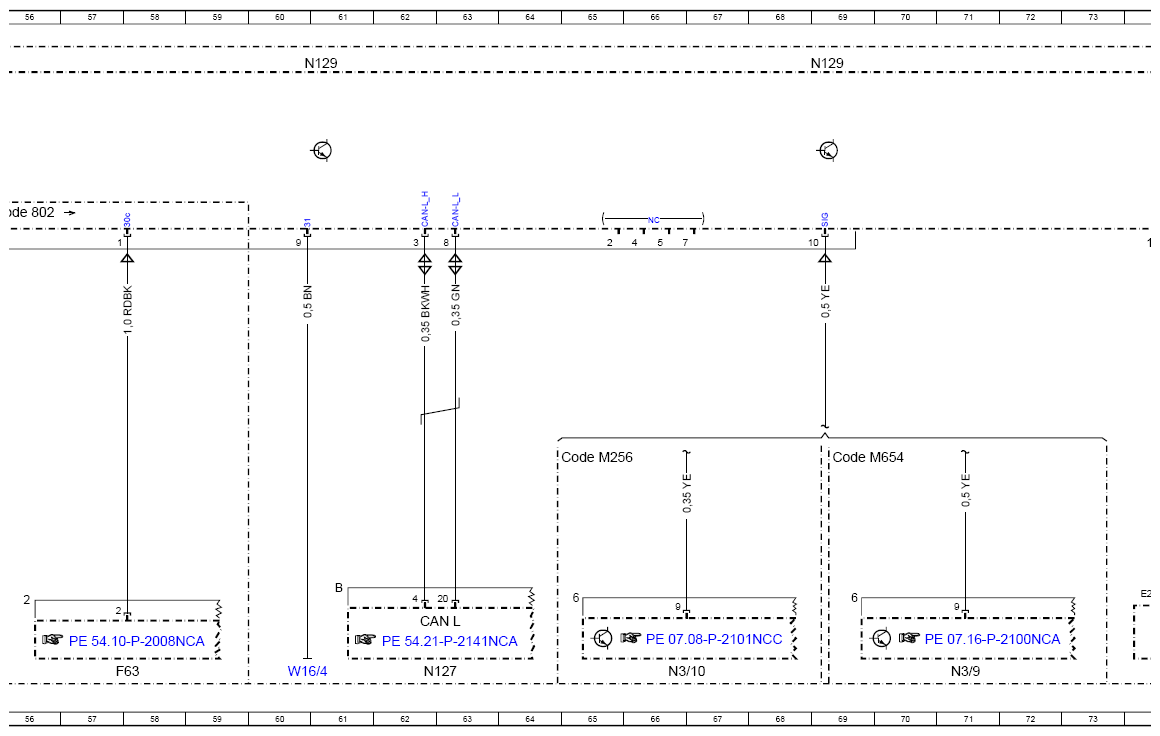

Wiring Diagram For Integrated Starter Alternator Control Unit - PE54.21-P-2155-97NCA
Model 167 with code B01 (48V technology) Control unit N129
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A79 | Integrated starter generator | 43A |
| A79 | Integrated starter generator | 85A |
| CAN L | Hybrid CAN | 13K |
| CAN L | Hybrid CAN | 62K |
| Code 802 | YoM 21/1 | 51D |
| Code 802 | YoM 21/1 | 55D |
| Code 93B | Integrated starter alternator, generation 1 | 2A |
| Code 94B | Integrated starter alternator, generation 2 | 46A |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 19H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 25H |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 15H |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 64H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 69H |
| F151/1 | Passenger-side A-pillar fuse box | 5L |
| F151/1 | Passenger-side A-pillar fuse box | 49L |
| F151/1f315 | Fuse 315 | 4L |
| F151/1f315 | Fuse 315 | 48L |
| F153/2 | Engine compartment 48V fuse box | 33L |
| F153/2 | Engine compartment 48V fuse box | 75L |
| F63 | Pyrofuse | 9L |
| F63 | Pyrofuse | 53L |
| F63 | Pyrofuse | 57L |
| N127 | Drivetrain control unit | 62L |
| N129 | Starter generator control unit | 4A |
| N129 | Starter generator control unit | 12A |
| N129 | Starter generator control unit | 20A |
| N129 | Starter generator control unit | 36A |
| N129 | Starter generator control unit | 28A |
| N129 | Starter generator control unit | 48A |
| N129 | Starter generator control unit | 69A |
| N129 | Starter generator control unit | 77A |
| N129 | Starter generator control unit | 82A |
| N129 | Starter generator control unit | 52A |
| N129 | Starter generator control unit | 61A |
| N3/10 | ME-SFI [ME] control unit | 17L |
| N3/10 | ME-SFI [ME] control unit | 23L |
| N3/10 | ME-SFI [ME] control unit | 28L |
| N3/10 | ME-SFI [ME] control unit | 66L |
| N3/9 | CDI control unit | 71L |
| W16/4 | Right major assembly compartment ground point | 11L |
| W16/4 | Right major assembly compartment ground point | 60L |
| W30/11 | Underbody tml. 41 ground point | 33H |
| W30/11 | Underbody tml. 41 ground point | 76H |
| X187/1x1 | Combustion engine electrical connector 1 | 28J |
| X256x1 | CAMTRONIC electrical connector | 22J |
| X26/24x2 | Vehicle interior and engine compartment electrical connector (48 V) | 3G |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 13L |
| Z105/4z1 | Circuit 41 connector sleeve | 33F |
| Z105/4z1 | Circuit 41 connector sleeve | 75F |
| Z241z1 | Circuit 30c connector sleeve | 8H |
| Z241z1 | Circuit 30c connector sleeve | 53G |
