Remove/Install D-Pillar Trim - AR68.30-P-4497ME
Model 167.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

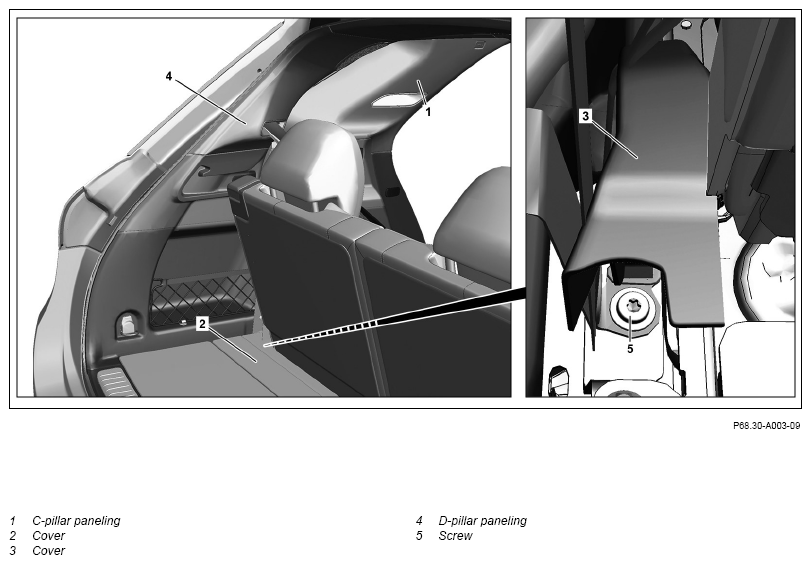

| 1 | Remove C-pillar trim (1). | AR68.30-P-4490ME | |
| 2 | Fold seat backrest of third seat row forward. | Model 167.1 with code 847 (3rd seat row) |
|
| 3 | Fold up cover (2). | Model 167.1 with code 847 (3rd seat row) |
|
| 4 | Remove side cover (3) from seat bench of third seat row. | Model 167.1 with code 847 (3rd seat row) |
|
| 5 | Remove screw (5). | Model 167.1 with code 847 (3rd seat row) |
|
| *BA91.40-P-1014-01U | |||
| 6 | Thread seat belt through D-pillar trim (4). | Model 167.1 with code 847 (3rd seat row) |
|
| 7 | Unclip D-pillar trim (4), pull back slightly, and remove. | ||
| 8 | Install in the reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1014-01U | Screw, seat belt end fitting/seat belt buckle of 3rd seat row to body | Nm | 35 |
