Remove/Install Upper Liftgate Trim - AR72.20-P-6631ME
Model 167.1/9
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center liftgate trim. | AR72.20-P-6618ME | |

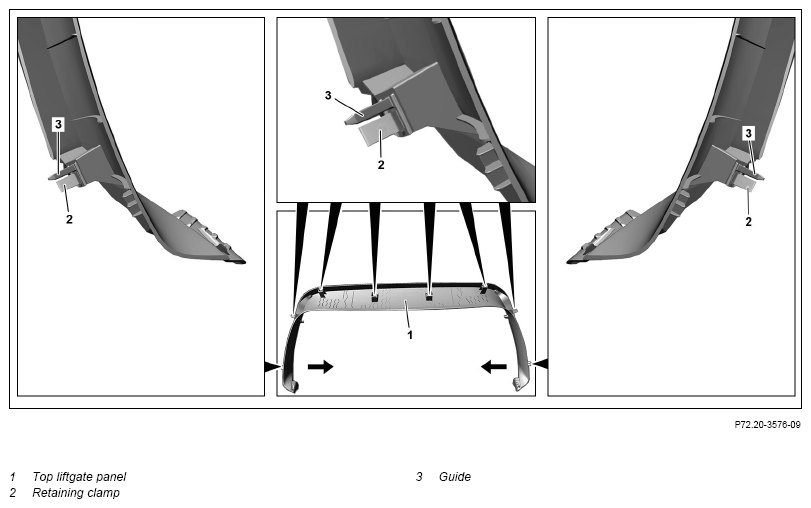

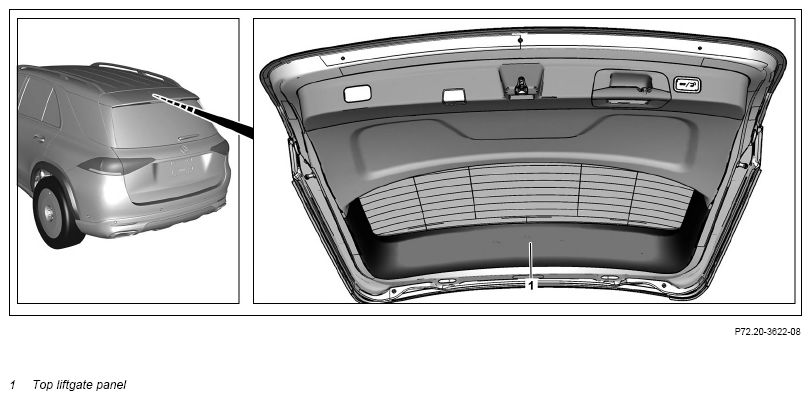

| 2 | Unclip side pieces of the top liftgate trim (1) starting in the direction of the arrow. Then, completely unclip the top liftgate trim (1) and remove. | Ensure that the retaining clamps (2) and the guides (3) are positioned correctly. Otherwise, the top liftgate trim (1) will be damaged. |
|
| Fig 1 | |||
| Check | |||
| 3 | Check retaining clamps (2) for damage. | If there is a problem, ↓ Replace corresponding retaining clips (2). |
|
| 4 | Check guides (3) for damage. | If there is a problem, ↓ replace top liftgate trim (1). |
|
| 5 | Install in the reverse order. |
