Remove/Install Tailgate Gas Operated Strut - AR72.20-P-2832ME
Model 167.1/9
MODIFICATION NOTES
| 01.04.2021 | Method revised. | The whole document |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from fingers being pinched or jammed when working on gas struts under pressure | Only remove and install pneumatic springs when they are not under tension and when the components are properly secured. | AS00.00-Z-0012-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

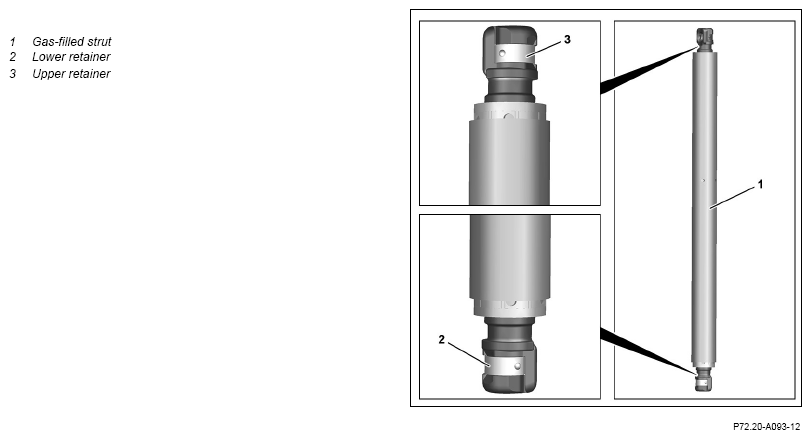

| 2 | Open tailgate and secure with support. | Fig 1 | |
| 3 | Lift bottom retainer (2) of the pneumatic spring (1) with a suitable tool and remove pneumatic spring (1) from the ball pin. | Do not remove lower retainer (2). Otherwise, tension can be lost. |
|
| 4 | Lift top retainer (3) of the pneumatic spring (1) with a suitable tool and remove pneumatic spring (1) from the ball pin. | Do not remove upper retainer (3). Otherwise, tension can be lost. |
|
| Risk of injury caused by drilling gas-filled assemblies or components (noncombustible gases) | Wear safety glasses and a face mask. | AS00.00-Z-0006-01A | |
| 5 | Dispose of removed pneumatic spring (1) properly. | If gas-filled strut (1) is replaced. | |
| 6 | Install in the reverse order. |
