Remove/Install Liftgate Central Locking Motor - AR72.20-P-1022ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove bottom liftgate trim. | AR72.20-P-6617ME | |

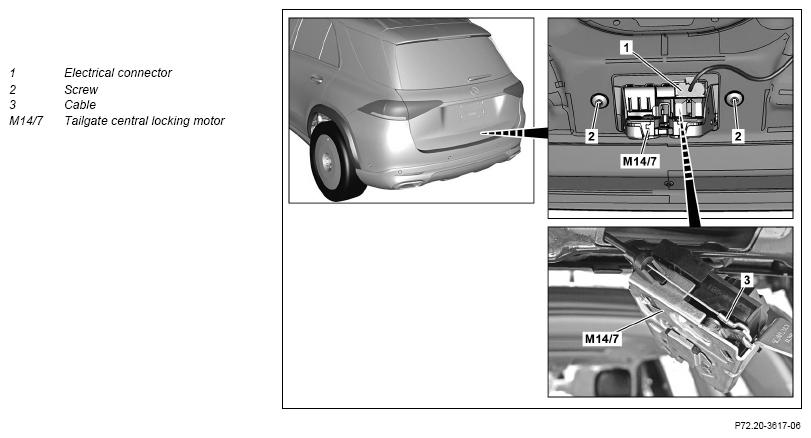

| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Mark position of the bolt heads. | ||
| 5 | Unscrew bolts (2). | ||
| *BA72.20-P-1007-02J | |||
| 6 | Remove liftgate central locking motor (M14/7) until the cable (3) can be unhooked. | ||
| 7 | Remove liftgate central locking motor (M14/7). | ||
| 8 | Install in the reverse order. |
LIFTGATE
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.20-P-1007-02J | Screw/bolt, door lock to liftgate | Nm | 9 |
