Remove/Install Front Door Power Window Switch Group - AR72.29-P-0100ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

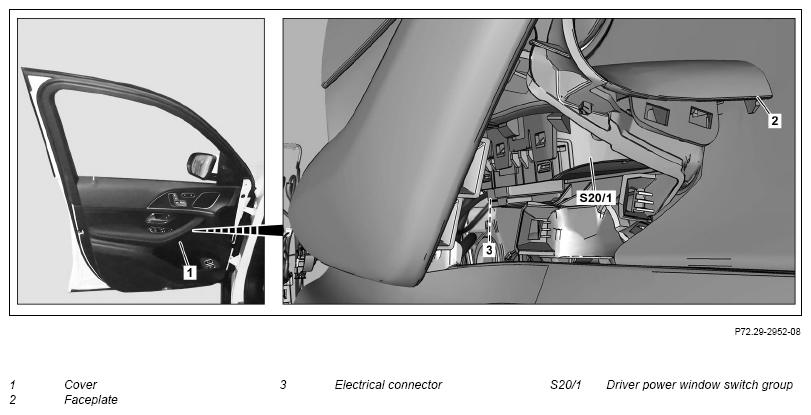

| 2 | Unclip cover (1). | ||
| 3 | Release and disconnect electrical connection (3). | ||
| 4 | Press out faceplate (2) on the front side upward. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 5 | Unclip driver power window switch group (S20/1) from the faceplate (2). | ||
| Check | |||
| 6 | Check the catch hooks for the cover (1) and the faceplate (2) for damage. | If damage is present, ↓ replace cover (1) or faceplate (2). |
|
| 7 | Install in the reverse order. |
