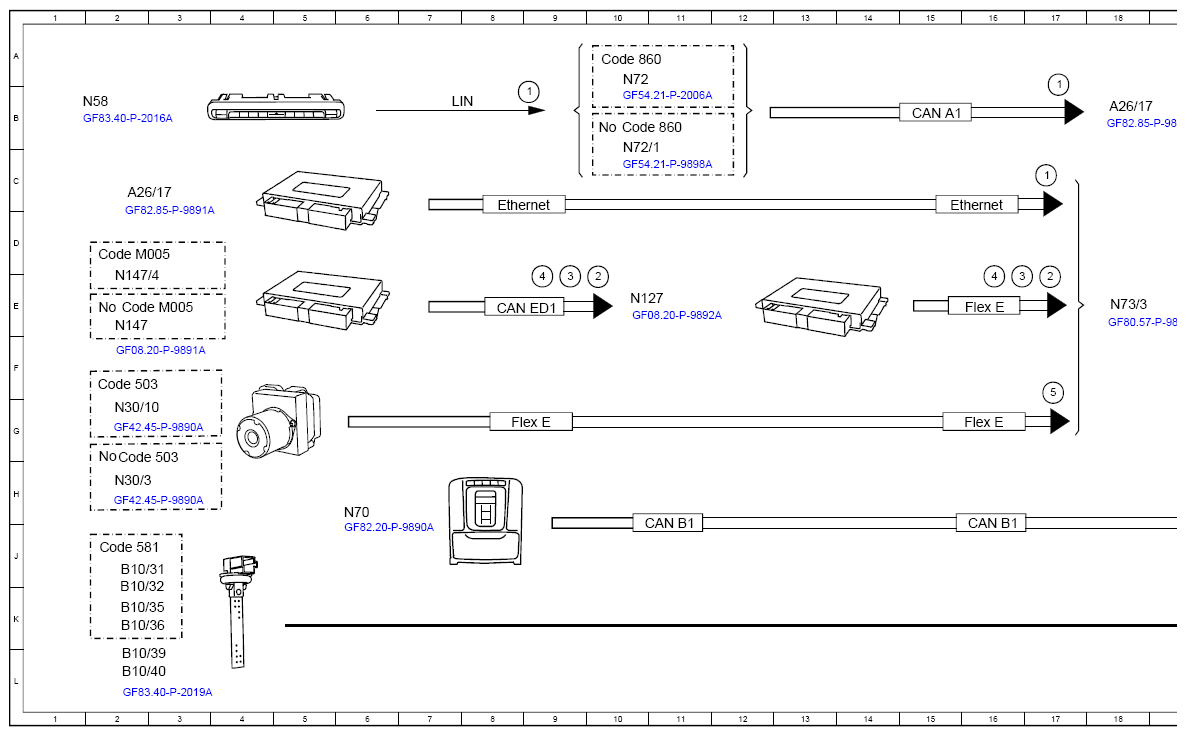

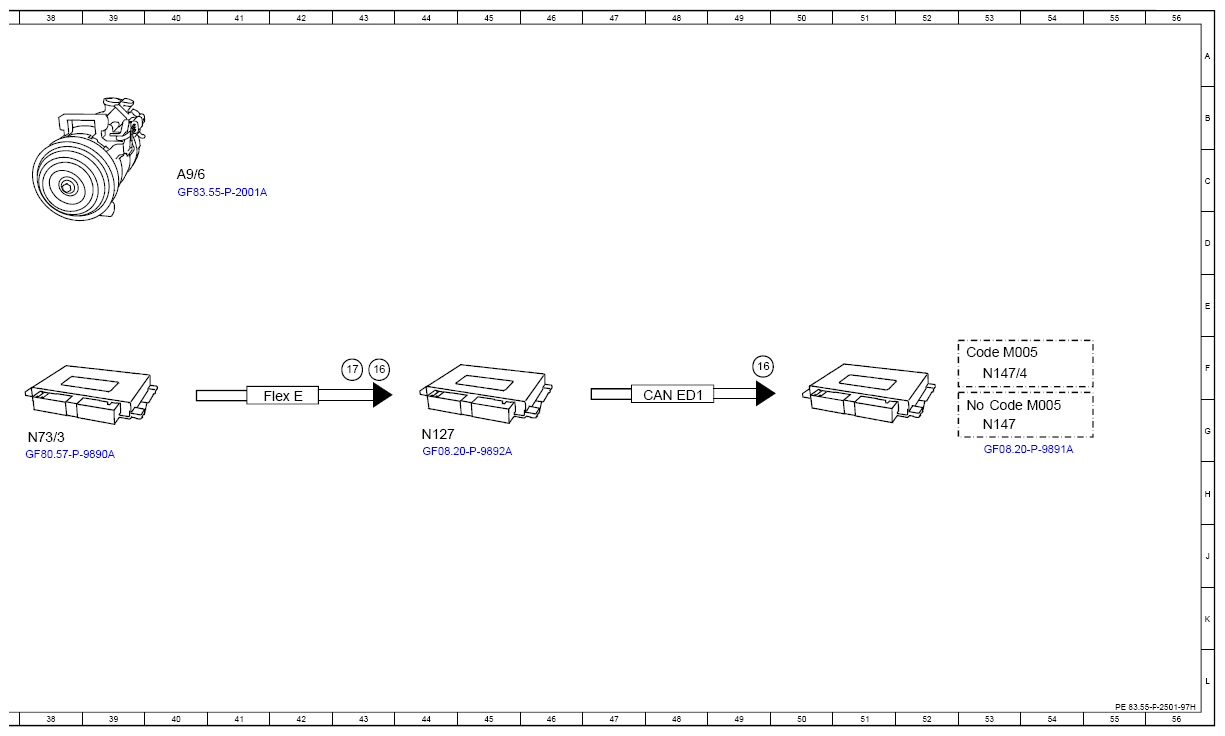

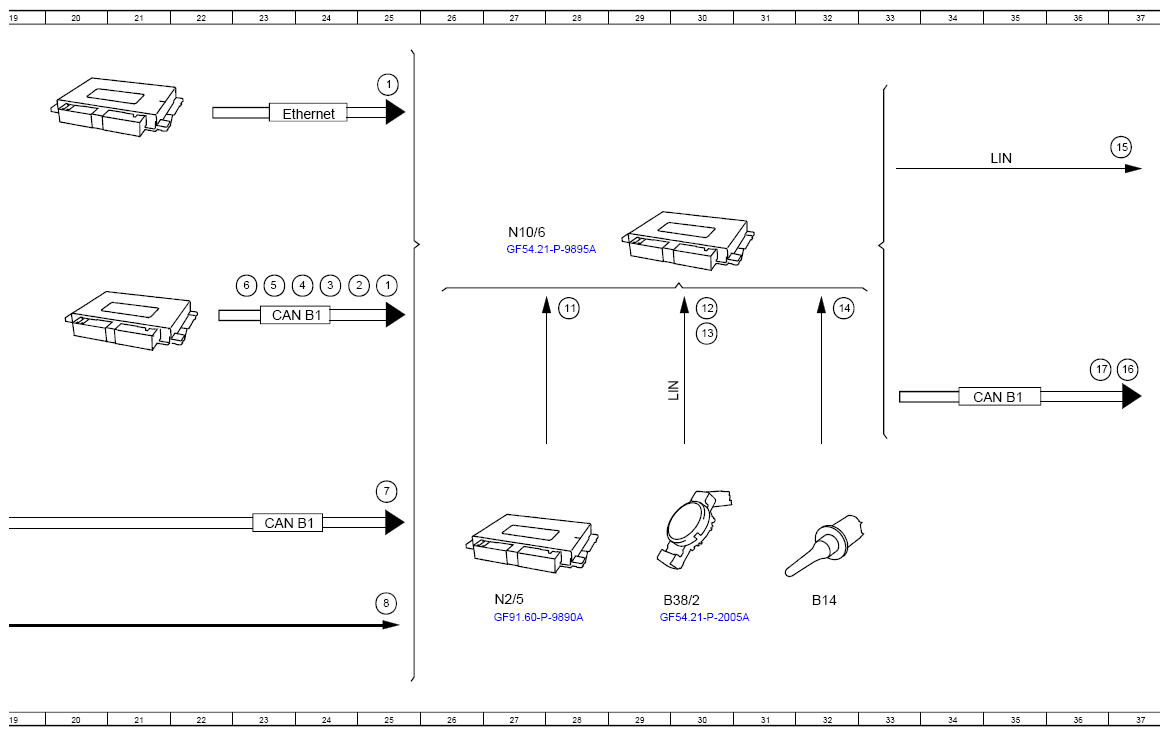

(Function Schematic For Actuating Refrigerant Compressor - PE83.55-P-2501-97H)
Model 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 25E |
| 1 | Operation, signal | 17C |
| 1 | Operation, signal | 9B |
| 1 | Operation, signal | 25B |
| 1 | Operation, signal | 17B |
| 11 | Crash, signal | 28E |
| 12 | Dew point temperature, signal | 30E |
| 13 | Solar radiation, signal | 30E |
| 14 | Outside temperature, signal | 32E |
| 15 | Refrigerant compressor, actuation | 37B |
| 16 | Refrigerant compressor torque, signal | 37F |
| 16 | Refrigerant compressor torque, signal | 49F |
| 16 | Refrigerant compressor torque, signal | 43F |
| 17 | Refrigerant circuit, status | 36F |
| 17 | Refrigerant circuit, status | 43F |
| 2 | Engine running, signal | 25E |
| 2 | Engine running, signal | 17E |
| 2 | Engine running, signal | 10E |
| 3 | Coolant temperature, signal | 24E |
| 3 | Coolant temperature, signal | 17E |
| 3 | Coolant temperature, signal | 9E |
| 4 | Engine speed, signal | 24E |
| 4 | Engine speed, signal | 16E |
| 4 | Engine speed, signal | 9E |
| 5 | Vehicle speed, signal | 17F |
| 5 | Vehicle speed, signal | 23E |
| 6 | Circuit 15, status | 23E |
| 7 | Interior temperature, signal | 25H |
| 8 | Air outlet temperature sensor, signal | 25K |
| A26/17 | Head unit | 2C |
| A26/17 | Head unit | 18B |
| A9/6 | Refrigerant compressor | 40C |
| B10/31 | Left side air vent air outlet temperature sensor | 2J |
| B10/32 | Right side air vent air outlet temperature sensor | 2K |
| B10/35 | Left footwell vent air outlet temperature sensor | 2K |
| B10/36 | Right footwell vent air outlet temperature sensor | 2K |
| B10/39 | Left rear air vent air outlet temperature sensor | 2L |
| B10/40 | Right rear air vent air outlet temperature sensor | 2L |
| B14 | Outside temperature sensor | 32K |
| B38/2 | Rain/light sensor with additional functions | 30K |
| CAN A1 | CAN 1 for telematics | 15B |
| CAN B1 | CAN 1 for vehicle interior | 23E |
| CAN B1 | CAN 1 for vehicle interior | 23J |
| CAN B1 | CAN 1 for vehicle interior | 11J |
| CAN B1 | CAN 1 for vehicle interior | 35G |
| CAN B1 | CAN 1 for vehicle interior | 16J |
| CAN ED1 | Electric drive CAN | 8E |
| CAN ED1 | Electric drive CAN | 48G |
| Code 503 | Remote-controlled parking | 2G |
| Code 503 | Remote-controlled parking | 2F |
| Code 581 | Automatic air conditioning | 2J |
| Code 860 | Front passenger display | 10A |
| Code 860 | Front passenger display | 10B |
| Code M005 | Vehicles with 4MATIC/all-wheel drive | 2D |
| Code M005 | Vehicles with 4MATIC/all-wheel drive | 2E |
| Code M005 | Vehicles with 4MATIC/all-wheel drive | 53F |
| Code M005 | Vehicles with 4MATIC/all-wheel drive | 53G |
| Ethernet | Ethernet | 16C |
| Ethernet | Ethernet | 8C |
| Ethernet | Ethernet | 23B |
| Flex E | Chassis FlexRay | 16G |
| Flex E | Chassis FlexRay | 16E |
| Flex E | Chassis FlexRay | 8G |
| Flex E | Chassis FlexRay | 42G |
| LIN | Local Interconnect Network | 7B |
| LIN | Local Interconnect Network | 30F |
| LIN | Local Interconnect Network | 35C |
| N10/6 | Front signal acquisition and actuation module control unit | 27D |
| N127 | Drivetrain control unit | 10E |
| N127 | Drivetrain control unit | 44G |
| N147 | Power electronics control unit | 2E |
| N147 | Power electronics control unit | 53G |
| N147/4 | Power electronics control unit | 2E |
| N147/4 | Power electronics control unit | 53F |
| N2/5 | Supplemental restraint system control unit | 27K |
| N30/10 | Electronic Stability Program control unit | 2G |
| N30/3 | Electronic Stability Program control unit | 2H |
| N58 | Rear air conditioning operating unit | 2B |
| N70 | Overhead control panel control unit | 6H |
| N72 | Lower control panel | 10A |
| N72/1 | Upper control panel control unit | 10C |
| N73/3 | Electronic ignition switch control unit | 18E |
| N73/3 | Electronic ignition switch control unit | 38G |
