Check Body Gap Dimensions - Ar60.00-P-0900-01ME

Model 167

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1001-01LA	Engine hood to fender	Dimension "A"	mm	3 (±0, 5)	3 (±0, 5)
BE60.00-P-1001-01LA	Engine hood to fender	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1001-01LA	Engine hood to fender	Dimension "A"	mm	3 (±0, 5)
BE60.00-P-1001-01LA	Engine hood to fender	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1002-01LA	Engine hood to bumper	Dimension "B"	mm	4, 5 (±1, 5)	4, 5 (±1, 5)
BE60.00-P-1002-01LA	Engine hood to bumper	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1002-01LA	Engine hood to bumper	Dimension "B"	mm	4, 5 (±1, 5)
BE60.00-P-1002-01LA	Engine hood to bumper	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1003-01LA	Protrusion of radiator trim/soft nose, engine hood	Dimension "B1"	mm	- 2, 5 (±1, 0)	- 2, 5 (±1, 0)
BE60.00-P-1003-01LA	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1003-01LA	Protrusion of radiator trim/soft nose, engine hood	Dimension "B1"	mm	- 2 (±1, 0)
BE60.00-P-1003-01LA	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1004-01LA	Bumper to fender	Dimension "C"	mm	0, 2 (+0, 5)	0, 2 (+0, 5)
BE60.00-P-1004-01LA	Bumper to fender	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1004-01LA	Bumper to fender	Dimension "C"	mm	0, 2 (+0, 5)
BE60.00-P-1004-01LA	Bumper to fender	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1005-01LA	Fender to headlamp	Dimension "D"	mm	2 (±1, 0)	2 (±1, 0)
BE60.00-P-1005-01LA	Fender to headlamp	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1005-01LA	Fender to headlamp	Dimension "D"	mm	3, 5 (±1, 0)
BE60.00-P-1005-01LA	Fender to headlamp	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1006-01LA	Bumper to headlamp at bottom	Dimension "E1"	mm	1, 5 (±1, 0)	1, 5 (±1, 0)
BE60.00-P-1006-01LA	Bumper to headlamp at bottom	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1006-01LA	Bumper to headlamp at bottom	Dimension "E1"	mm	2 (±1, 0)
BE60.00-P-1006-01LA	Bumper to headlamp at bottom	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1007-01LA	Bumper to headlamp, side	Dimension "E2"	mm	2, 5 (±1, 0)	2, 5 (±1, 0)
		Dimension "E3"	mm	1, 5 (±1, 0)	1, 5 (±1, 0)
		For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1007-01LA	Bumper to headlamp, side	Dimension "E2"	mm	2, 5 (±1, 0)
		Dimension "E3"	mm	2 (±1, 0)
		For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1008-01LA	Engine hood to headlamp	Dimension "F"	mm	5 (±1, 5)	5 (±1, 5)
BE60.00-P-1008-01LA	Engine hood to headlamp	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1008-01LA	Engine hood to headlamp	Dimension "F"	mm	5, 5 (±1, 5)
BE60.00-P-1008-01LA	Engine hood to headlamp	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1009-01LA	Front door to fender	Dimension "G"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1009-01LA	Front door to fender	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1009-01LA	Front door to fender	Dimension "G"	mm	3, 5 (±0, 5)
BE60.00-P-1009-01LA	Front door to fender	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1010-01LA	Front door to rear door	Dimension "H"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1010-01LA	Front door to rear door	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1010-01LA	Front door to rear door	Dimension "H"	mm	4 (±0, 5)
BE60.00-P-1010-01LA	Front door to rear door	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1011-01LA	Rear door to side wall	Dimension "I"	mm	3 (±0, 5)	3 (±0, 5)
BE60.00-P-1011-01LA	Rear door to side wall	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1011-01LA	Rear door to side wall	Dimension "I"	mm	3 (±0, 5)
BE60.00-P-1011-01LA	Rear door to side wall	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1012-01LA	Side wall to bumper at rear	Dimension "J"	mm	0, 2 (+0, 5)	0, 2 (+0, 5)
BE60.00-P-1012-01LA	Side wall to bumper at rear	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1012-01LA	Side wall to bumper at rear	Dimension "J"	mm	0, 2 (+0, 5)
BE60.00-P-1012-01LA	Side wall to bumper at rear	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1013-01LA	Sidewall to liftgate	Dimension "K"	mm	4 (+1/-0, 5)	4 (±1, 0)
BE60.00-P-1013-01LA	Sidewall to liftgate	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1013-01LA	Sidewall to liftgate	Dimension "K"	mm	4, 5 (±0, 5)
BE60.00-P-1013-01LA	Sidewall to liftgate	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1014-01LA	Side wall to outer tail lamp	Dimension "L"	mm	1 (±0, 5)	1 (+1/-0, 5)
BE60.00-P-1014-01LA	Side wall to outer tail lamp	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

Number	Designation			Model 167.9
BE60.00-P-1014-01LA	Side wall to outer tail lamp	Dimension "L"	mm	2 (+0, 5/-1)
BE60.00-P-1014-01LA	Side wall to outer tail lamp	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1015-01LA	Outer tail lamp to bumper at rear	Dimension "M"	mm	2 (±1, 0)	1, 5 (±1, 0)
BE60.00-P-1015-01LA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1015-01LA	Outer tail lamp to bumper at rear	Dimension "M"	mm	2 (±1, 0)
BE60.00-P-1015-01LA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1016-01LA	Liftgate to rear bumper	Dimension "N1"	mm	4, 5 (±1, 5)	4, 5 (±1, 5)
		Dimension "N2"	mm	5, 5 (±1, 5)	5, 5 (±1, 5)
		For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1016-01LA	Liftgate to rear bumper	Dimension "N1"	mm	4, 5 (±1, 5)
		Dimension "N2"	mm	5, 5 (±1, 5)
		For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1017-01LA	Liftgate to inner tail lamp	Dimension "O1"	mm	1 (±1, 0)	1 (+1/-0, 5)
		Dimension "O2"	mm	2 (±1, 0)	1, 5 (±1, 0)
		For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1017-01LA	Liftgate to inner tail lamp	Dimension "O1"	mm	1 (±0, 5)
		Dimension "O2"	mm	1 (±1, 0)
		For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1018-01LA	Outside of taillamp to inside of taillamp	Dimension "P"	mm	4 (±1, 5)	4 (±1, 5)
BE60.00-P-1018-01LA	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1018-01LA	Outside of taillamp to inside of taillamp	Dimension "P"	mm	4, 5 (±1, 5)
BE60.00-P-1018-01LA	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0900-01ME

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1019-01LA	Liftgate to rear window	Dimension "Q"	mm	2, 5 (±1, 0)	3 (±1, 0)
BE60.00-P-1019-01LA	Liftgate to rear window	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1019-01LA	Liftgate to rear window	Dimension "Q"	mm	2, 5 (±1, 0)
BE60.00-P-1019-01LA	Liftgate to rear window	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.9
BE60.00-P-1020-01LA	Rear window to rear spoiler	Dimension "R1"	mm	1, 5 (±1, 0)	1, 5 (±1, 0)
BE60.00-P-1020-01LA	Rear window to rear spoiler	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.9
BE60.00-P-1021-01LA	Rear window to side spoiler	Dimension "R2"	mm	4 (±1, 5)	4 (±1, 0)
BE60.00-P-1021-01LA	Rear window to side spoiler	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.9
BE60.00-P-1022-01LA	Rear spoiler to roof	Dimension "S"	mm	4, 5 (±1, 0)	4, 5 (±1, 0)
BE60.00-P-1022-01LA	Rear spoiler to roof	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.9
BE60.00-P-1023-01LA	Side spoiler to rear side window	Dimension "T"	mm	4 (-0, 5/+1, 5)	4 (-0, 5/+1, 5)
BE60.00-P-1023-01LA	Side spoiler to rear side window	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1024-01LA	Fuel filler flap	Dimension "U"	mm	2, 5 (±0, 5)	2, 5 (±0, 5)
BE60.00-P-1024-01LA	Fuel filler flap	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1024-01LA	Fuel filler flap	Dimension "U"	mm	2, 5 (±0, 5)
BE60.00-P-1024-01LA	Fuel filler flap	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.3
BE60.00-P-1025-01LA	Liftgate to roof	Dimension "V"	mm	4, 5 (±1, 0)
BE60.00-P-1025-01LA	Liftgate to roof	For picture, see		AR60.00-P-0900-01ME

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

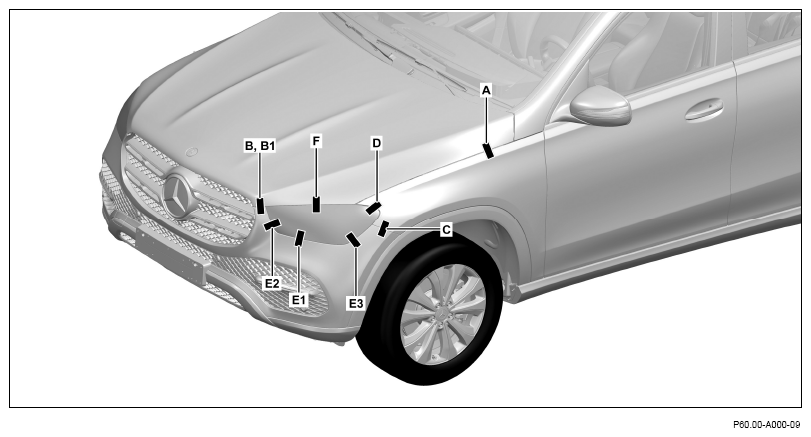

Front gap dimensions, shown on model 167.1

Courtesy of MERCEDES-BENZ USA

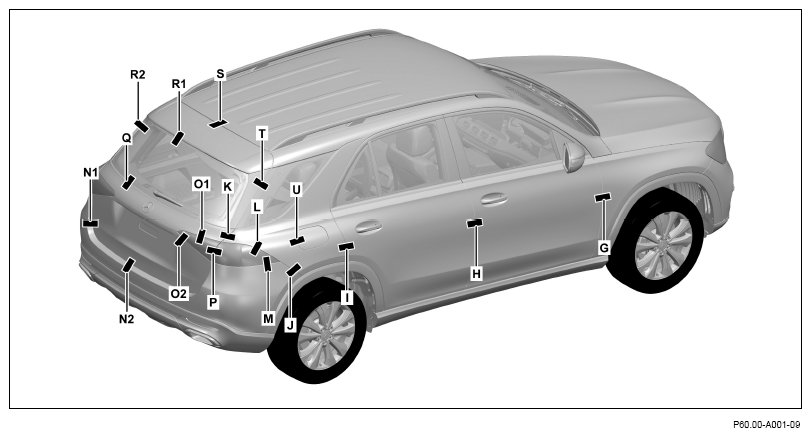

Rear and side gap dimensions, shown on model 167.1

Courtesy of MERCEDES-BENZ USA

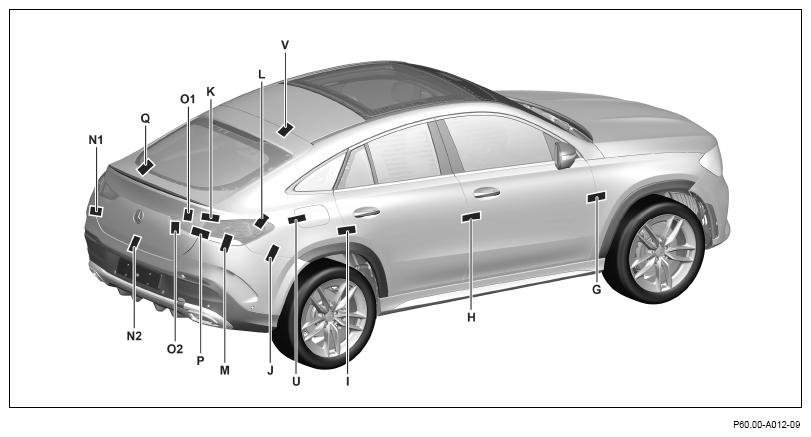

Rear and side gap dimensions, shown on model 167.3

Check gap dimensions with feeler gauge as per sketches.
Model 167.1

Model 167.9

Model 167.1

Model 167.9

Model 167.1

Model 167.9

Model 167.1

Model 167.9

Model 167.3

Gap dimensions must be adjusted as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
