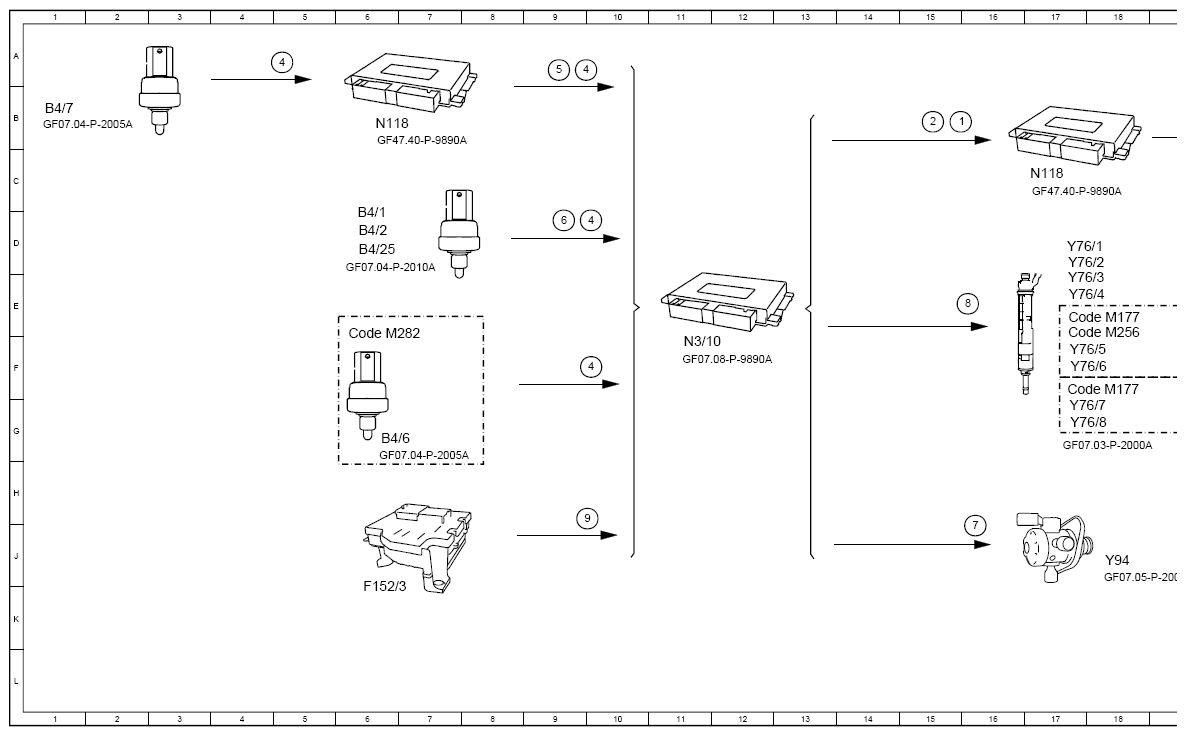

Function Schematic For Fuel Supply System - PE47.00-P-2500-97C
Engine 256, 264 in model 167
Engine 139 in model 118, 177, 247
Engine 256 in model 213, 238 as of model year 2021
Engine 260, 282 in model 118, 177, 247
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel pump, request ON | 15B |
| 2 | Fuel pump, specified pressure request | 15B |
| 3 | Fuel pump, actuation | 20B |
| 4 | Fuel pressure, signal | 5A |
| 4 | Fuel pressure, signal | 10D |
| 4 | Fuel pressure, signal | 9A |
| 4 | Fuel pressure, signal | 10F |
| 5 | Fuel pressure, status | 9A |
| 6 | Fuel temperature, signal | 9D |
| 7 | Quantity control valve, actuation | 16J |
| 8 | Fuel injectors, actuation | 16E |
| 9 | Circuit 87, status | 9H |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 6D |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 6D |
| B4/25 | Fuel pressure and temperature sensor | 6D |
| B4/6 | Fuel high-pressure sensor | 6G |
| B4/7 | Fuel pressure sensor | 1B |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 18E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 18F |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 18F |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 6F |
| F152/3 | Engine compartment fuse and relay module | 6K |
| M3 | Fuel pump (FP) | 21C |
| N118 | Fuel pump control unit | 6B |
| N118 | Fuel pump control unit | 17C |
| N3/10 | ME-SFI [ME] control unit | 11F |
| Y76/1 | Cylinder 1 fuel injector | 17D |
| Y76/2 | Cylinder 2 fuel injector | 17D |
| Y76/3 | Cylinder 3 fuel injector | 17E |
| Y76/4 | Cylinder 4 fuel injector | 17E |
| Y76/5 | Cylinder 5 fuel injector | 17F |
| Y76/6 | Cylinder 6 fuel injector | 17F |
| Y76/7 | Cylinder 7 fuel injector | 17G |
| Y76/8 | Cylinder 8 fuel injector | 17G |
| Y94 | Quantity control valve | 18J |
