Rear Fender Complete Removal - Ar63.50-P-1401-01MEC (Model 167.3)

000 588 00 84 00 Heat gun

WS54.00-P-0049B

Model 167.3

The next steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

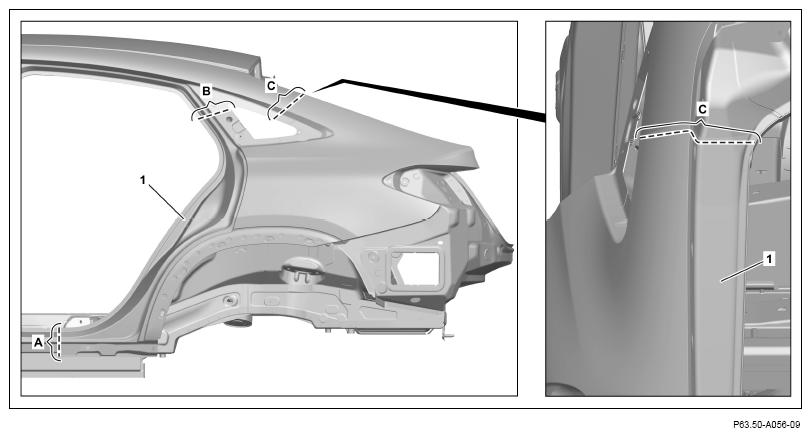

1. Determine and mark separating point (area A) by means of new rear fender (1).
2. Mark separating points on rear fender (1) (areas B and C).

   Mark separating points (areas B and C) along Y-markings.

3. Carry out contour cut at rear fender (1) (area A).

   Do not make contour cut too deep.

   Otherwise the components below can be damaged and weakened.

4. Cut separating points at rear fender (1) (areas B and C).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Courtesy of MERCEDES-BENZ USA

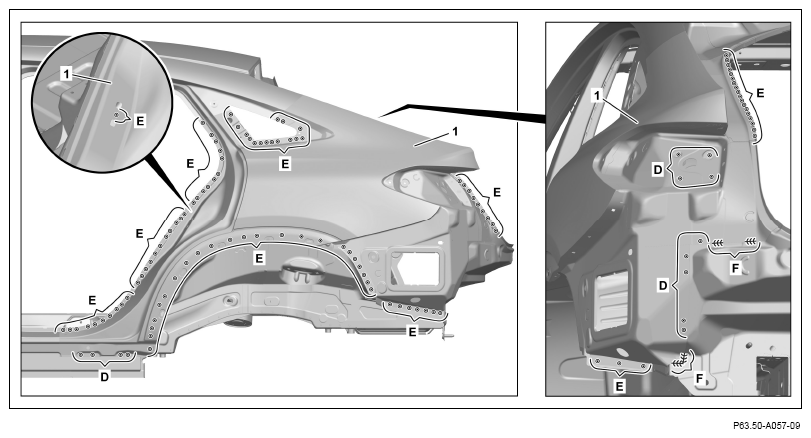

5. Expose spot welds at rear fender (1) (areas D and E).
6. Cut off spot welds at rear fender (1) (areas D and E).
7. Expose laser seams at rear fender (1) (areas F).
8. Cut off laser seams at rear fender (1) (areas F).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

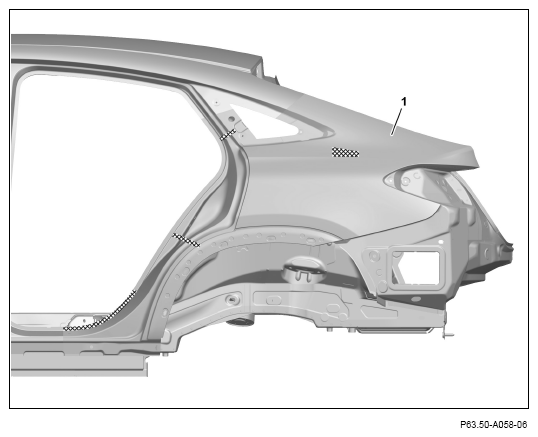

9. Heat rear fender (1) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

10. Remove rear fender (1).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

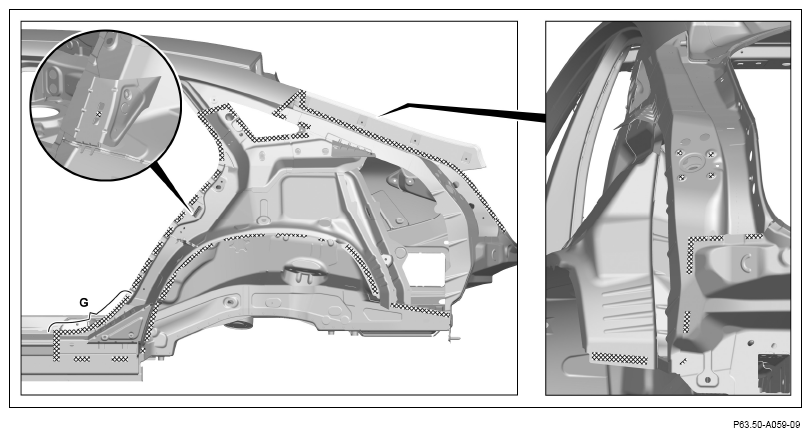

11. Grind mating surfaces down to bare metal in cross-hatched areas.

    Sand down spot weld flanges to bare metal on both sides.

12. Remove grinding dust and milling chips.
13. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (area G).

    Otherwise adhesion problems may occur.

    Observe preliminary treatment of bonding surface.
