C-Pillar Removal - Ar63.20-P-0500-01MEC (Model 167.3)

Model 167.3

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

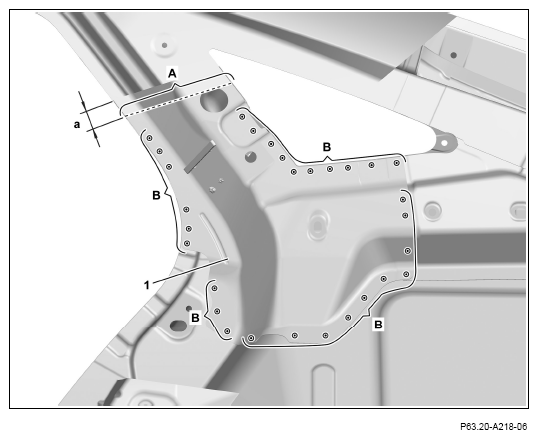

1. Mark separating point on C-pillar (1) and cut (area A).

   Do not cut too deeply. Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = approx. 25 mm

2. Expose spot welds on B-pillar (1) and cut out (areas B).

   Courtesy of MERCEDES-BENZ USA

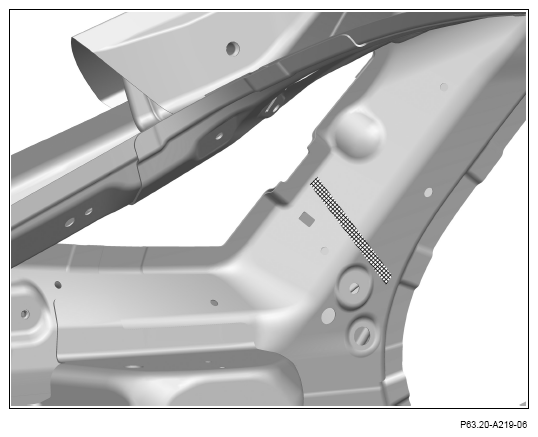

3. Heat body on crosshatched area.

   Cross-hatched area is bonded.

4. Remove C-pillar.

   Courtesy of MERCEDES-BENZ USA

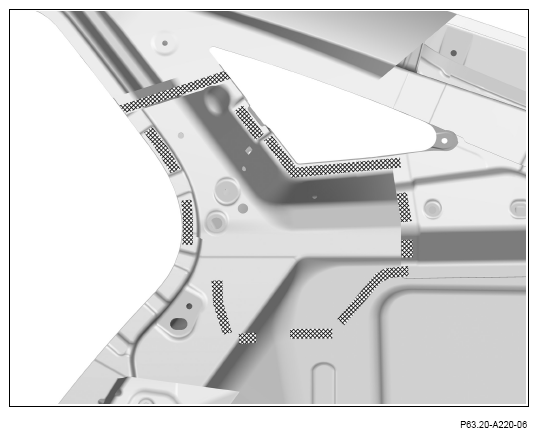

5. Grind mating surfaces down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove grinding dust and drill chips.
7. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
