Remove/Install Mercedes Star - AR88.40-P-4053ME
Model 167
MODIFICATION NOTES
| 05.10.2021 | Repair method revised. | Operation steps 1, 2, 7 added. |
Shown on model 167 except code 233 (DISTRONIC PLUS)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Clean Mercedes star (1). | ||
| Cleaner | *BR00.45-Z-1025-04A | ||
| 2 | Fasten suitable cup suction tool to Mercedes star (1). | ||

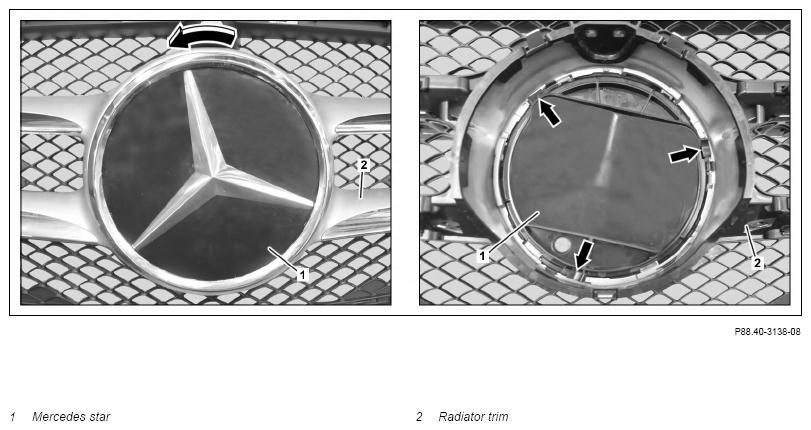

| 3 | Turn Mercedes star (1) using the cup suction tool by approx. 15° in the direction of the arrow and remove from the radiator grille (2). | ||
| 4 | Disconnect electrical connector on Mercedes star (1). | Model 167 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) |
|
| Install | |||
| 5 | Connect electrical connector to the Mercedes star (1). | Model 167 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) |
|
| 6 | Insert Mercedes star (1) into the radiator grille (2) as shown with the catch hooks (arrows) and turn by approx. 15° using the cup suction tool in the opposite direction to the arrow. | ||
| 7 | Remove cup suction tool. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
