Remove/Install Front Seat Heating Control Unit - AR91.30-P-0037ME
Model 167
With Code 902 (Seat heater Plus for driver and front passenger)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Loosen respective front seat from vehicle floor and tilt toward rear. | AR91.10-P-1000ME | |
| 2 | Release and disconnect electrical connectors at seat heating control unit (N25/4 or N25/5). | ||

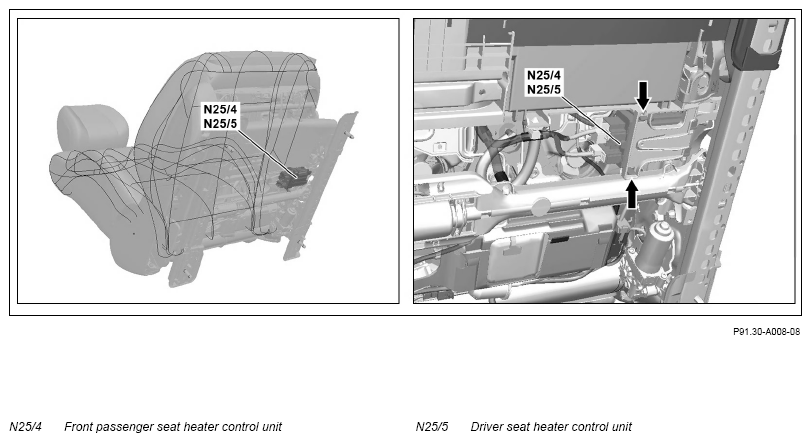

| 3 | Unclip seat heating control unit (N25/4 or N25/5) (arrows) and remove. | ||
| 4 | Install in the reverse order |
