Remove/Install Backrest - AR91.10-P-1061ME
Model 167
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove panels from front seat frame. | AR91.10-P-1200ME | |
| 2 | Remove seat backrest trim. | AR91.10-P-1912ME | |
| 3 | Release terminal strip (3) of cover (1) 1 seat backrest (4). | Fig 2 | |
| 4 | Release electrical wiring harness of seat backrest (4) from seat frame base and release and disconnect electrical connectors. | Otherwise damage may occur. |
|
| 5 | Open and expose pneumatic line (2) at connecting points. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 6 | Remove bolts (5). | *BA91.10-P-1002-01T | |
| 7 | Remove seat backrest (4) from seat frame base and place on a suitable surface. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 8 | Install in the reverse order. | ||
| Initial startup | |||
| 9 | Carry out commissioning of Weight Sensing System (WSS). | If the seat backrest (4) on the passenger side is being removed. | |
| AD00.00-P-2000-06ME | |||

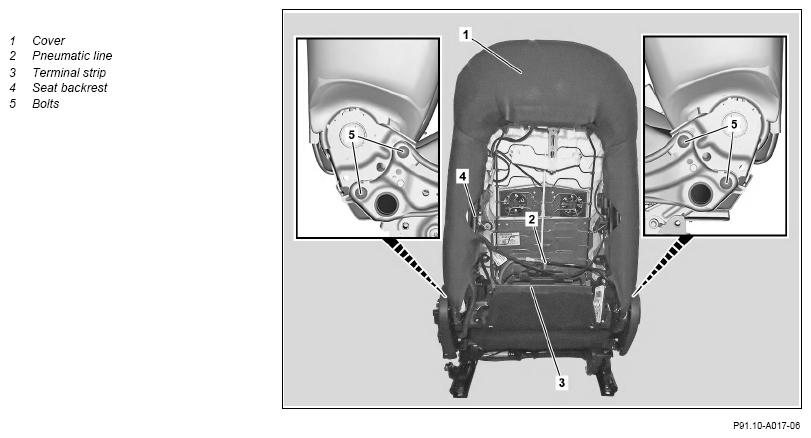

| Fig 1 |
FRONT SEATS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.10-P-1002-01T | Bolt, backrest to seat frame | Nm | 40 |
