Remove/Install Armrest - AR91.12-P-1744ME

Model 167.1

except code 567 (Vario rear seat)

Model 167.3

Courtesy of MERCEDES-BENZ USA

Shown on removed center seat backrest (1)

	Remove/install
1	Fold over center seat backrest (1).
2	Unclip left and right cover (4) as shown as remove.	Ensure that covers (4) are engaged correctly.
		Long wedge	Fig 1
3	Fold back center backrest (1).
4	Fold down armrest (3).
5	Remove cover (5).	Long wedge	Fig 1
6	Unscrew screws (7) and remove armrest (3	Bolt, armrest to backrest frame	*BA91.12-P-1006-03M
7	Install in the reverse order.

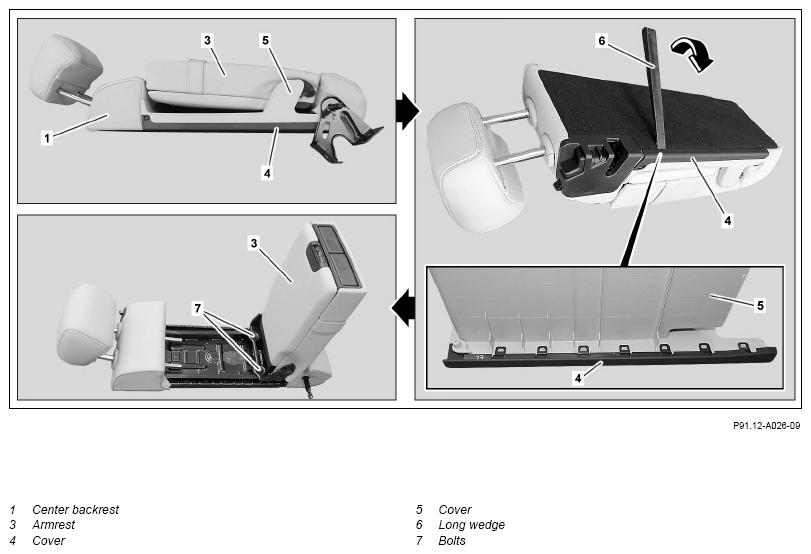

Fig 1: Identifying Long Wedge (115 589 03 59 00)
