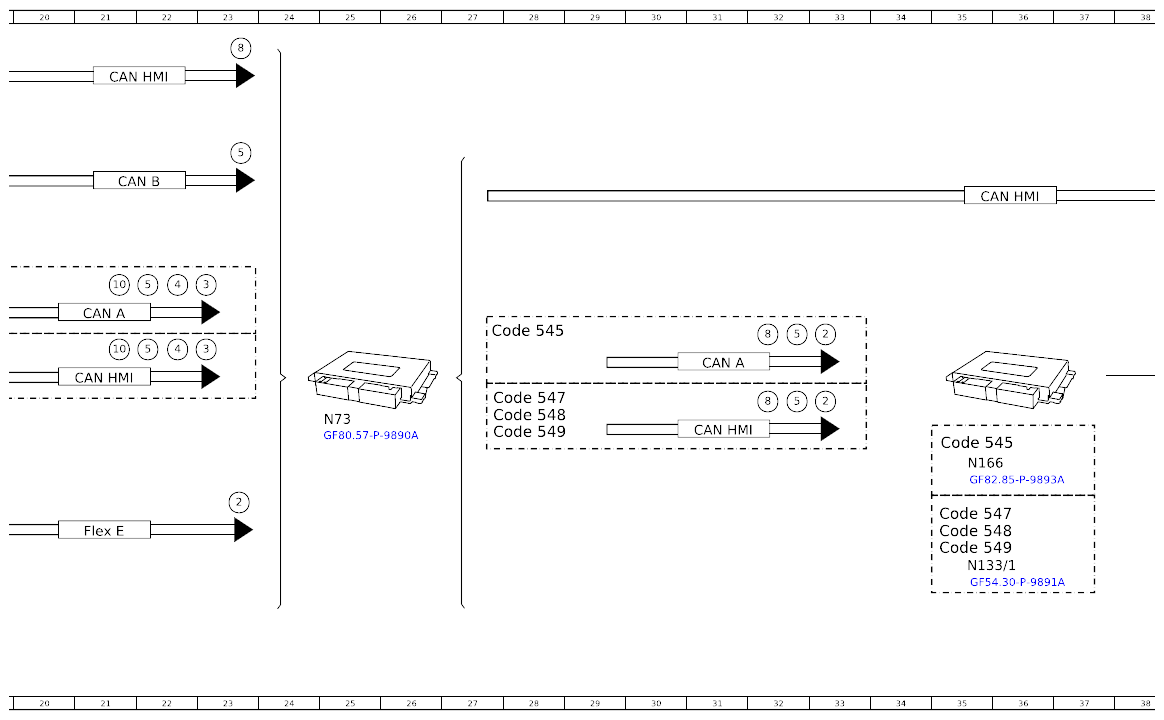

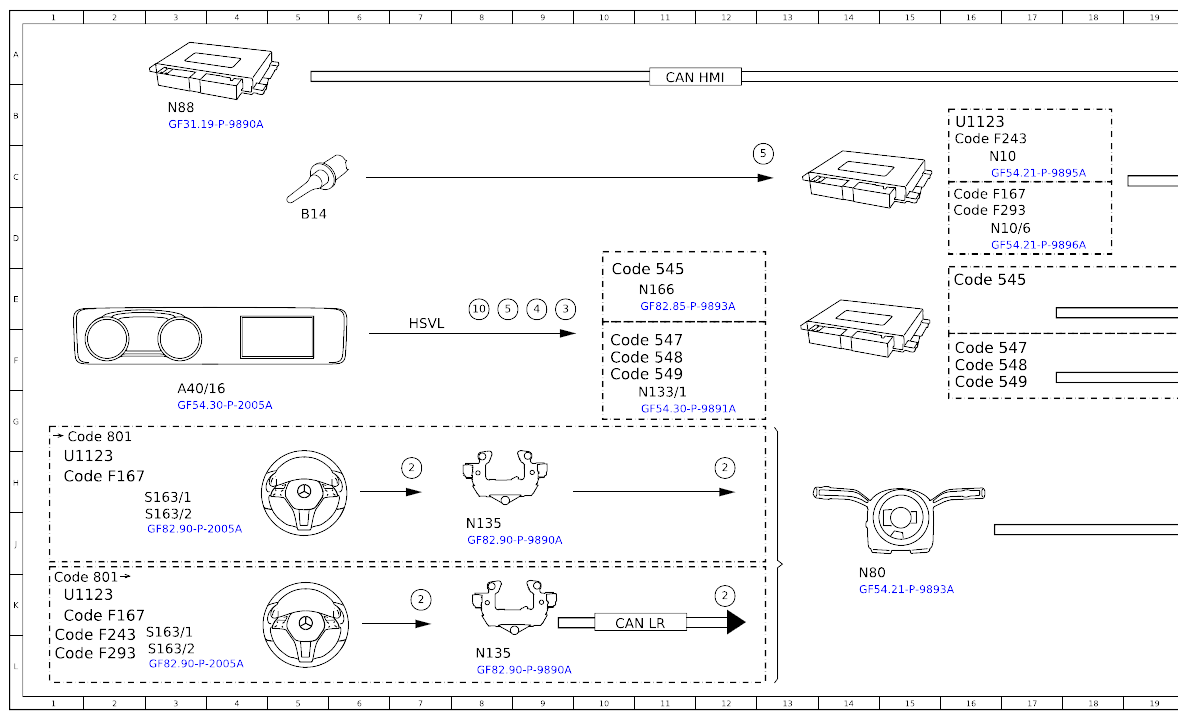

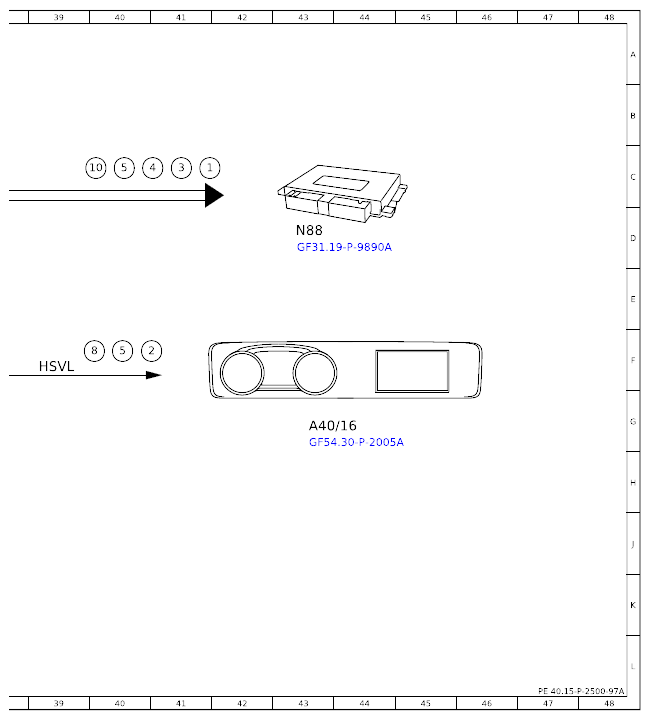

Function Schematic For Tire Pressure Monitor (TPM) - PE40.15-P-2500-97A
Model 118, 167, 177, 243, 247, 293 with code 475 (Tire pressure monitor (TPM))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 41C |
| 10 | Kilometer reading and maintenance computer information, signal | 8E |
| 10 | Kilometer reading and maintenance computer information, signal | 21E |
| 10 | Kilometer reading and maintenance computer information, signal | 21F |
| 10 | Kilometer reading and maintenance computer information, signal | 21H |
| 2 | Multifunction steering wheel button group, signal | 12H |
| 2 | Multifunction steering wheel button group, signal | 7H |
| 2 | Multifunction steering wheel button group, signal | 23H |
| 2 | Multifunction steering wheel button group, signal | 12J |
| 2 | Multifunction steering wheel button group, signal | 33D |
| 2 | Multifunction steering wheel button group, signal | 33F |
| 2 | Multifunction steering wheel button group, signal | 33H |
| 2 | Multifunction steering wheel button group, signal | 40F |
| 3 | Activate tire pressure monitor, request | 23E |
| 3 | Activate tire pressure monitor, request | 23F |
| 3 | Activate tire pressure monitor, request | 23G |
| 3 | Activate tire pressure monitor, request | 41B |
| 4 | Vehicle speed, signal | 9E |
| 4 | Vehicle speed, signal | 22E |
| 4 | Vehicle speed, signal | 22G |
| 4 | Vehicle speed, signal | 22H |
| 5 | Outside temperature, signal | 5E |
| 5 | Outside temperature, signal | 13B |
| 5 | Outside temperature, signal | 33E |
| 5 | Outside temperature, signal | 33G |
| 5 | Outside temperature, signal | 33H |
| 5 | Outside temperature, signal | 40B |
| 5 | Outside temperature, signal | 40F |
| 5 | Outside temperature, signal | 22H |
| 5 | Outside temperature, signal | 22G |
| 8 | Tire pressure monitor, message | 24A |
| 8 | Tire pressure monitor, message | 32E |
| 8 | Tire pressure monitor, message | 32G |
| 8 | Tire pressure monitor, message | 32H |
| A40/16 | Head unit/instrument cluster display cluster | 43G |
| A40/16 | Head unit/instrument cluster display cluster | 3G |
| B14 | Outside temperature sensor | 5D |
| CAN A | Telematics CAN | 31F |
| CAN A | Telematics CAN | 21E |
| CAN B | Interior CAN | 21C |
| CAN HMI | User interface CAN | 21 A |
| CAN HMI | User interface CAN | 36C |
| CAN HMI | User interface CAN | 11 A |
| CAN HMI | User interface CAN | 21F |
| CAN HMI | User interface CAN | 31G |
| CAN LR | Steering wheel CAN | 10K |
| Code 545 | Connect 5 (NTG6) | 10E |
| Code 545 | Connect 5 (NTG6) | 16E |
| Code 545 | Connect 5 (NTG6) | 27F |
| Code 545 | Connect 5 (NTG6) | 35G |
| Code 547 | Connect 20 Entry (NTG6) | 10F |
| Code 547 | Connect 20 Entry (NTG6) | 16F |
| Code 547 | Connect 20 Entry (NTG6) | 27G |
| Code 547 | Connect 20 Entry (NTG6) | 35J |
| Code 548 | Connect 20 MID (NTG6) | 10F |
| Code 548 | Connect 20 MID (NTG6) | 16F |
| Code 548 | Connect 20 MID (NTG6) | 27G |
| Code 548 | Connect 20 MID (NTG6) | 35J |
| Code 549 | Connect 20 HIGH (NTG6) | 10F |
| Code 549 | Connect 20 HIGH (NTG6) | 16F |
| Code 549 | Connect 20 HIGH (NTG6) | 27G |
| Code 549 | Connect 20 HIGH (NTG6) | 35J |
| Code 801 | YoM 20/1 | 1G |
| Code 801 | YoM 20/1 | 1K |
| Code F167 | Model series 167 | 1H |
| Code F167 | Model series 167 | 1K |
| Code F167 | Model series 167 | 16C |
| Code F243 | Model Series 243 | 1L |
| Code F243 | Model Series 243 | 16B |
| Code F293 | Model series 293 | 1L |
| Code F293 | Model series 293 | 16D |
| Flex E | Chassis FlexRay | 21J |
| HSVL | High-speed video link | 39F |
| HSVL | High-speed video link | 7E |
| N10 | Signal acquisition and actuation module | 16C |
| N10/6 | Front SAM control unit | 17D |
| N133/1 | Instrument cluster control unit | 11G |
| N133/1 | Instrument cluster control unit | 35J |
| N135 | Steering wheel electronics | 8J |
| N135 | Steering wheel electronics | 8L |
| N166 | Head unit/instrument cluster control unit | 11E |
| N166 | Head unit/instrument cluster control unit | 35H |
| N73 | Electronic ignition switch control unit | 25G |
| N80 | Steering column module control unit | 14K |
| N88 | Tire pressure monitor control unit | 3B |
| N88 | Tire pressure monitor control unit | 43D |
| S163/1 | Instrument cluster multifunction steering wheel button group | 3H |
| S163/1 | Instrument cluster multifunction steering wheel button group | 3L |
| S163/2 | Head unit multifunction steering wheel button group | 3J |
| S163/2 | Head unit multifunction steering wheel button group | 3L |
| 111123 | Valid for model 1 18, 177, 247 | 1H |
| U1123 | Valid for model 1 18, 177, 247 | 1K |
| U1123 | Valid for model 1 18, 177, 247 | 16B |
