Remove/Install Lamp Unit On Liftgate - AR82.10-P-4926MFH
Model 247.7
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove center liftgate trim. | AR72.20-P-6618MFA | |

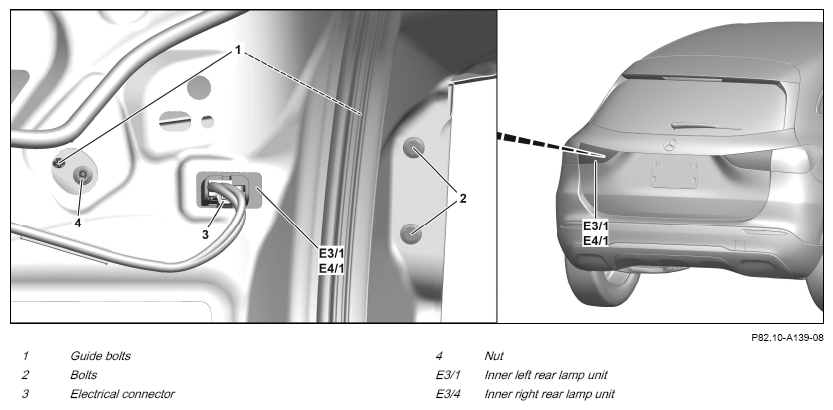

| 3 | Release and disconnect electrical connector (3). | ||
| 4 | Remove screw/bolts (2). | ||
| 5 | Remove nut (4). | ||
| 6 | Remove inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) from liftgate. | ||
| 7 | Check seal of inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) for damage. | If the seal of the inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) is damaged, ↓ Install new gasket. |
|
| 8 | Install in the reverse order. |
