Remove/Install Front Headlamp Unit - AR82.10-P-4733MFA
Model 118, 177, 243, 247
Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Note on damage to lamp unit | AH82.10-P-0002-00LW | |
| Remove/install | |||
| 1 | Remove front bumper. | Model 118, 177, 247 | AR88.20-P-2000MFA |
| Model 243 | AR88.20-P-2000EQA | ||
| 2 | Remove screw/bolts (2). | ||
| 3 | Release and disconnect electrical connector of front left lamp unit (E1) or front right lamp unit (E2). | ||
| 4 | Remove left front lamp unit (E1) or right front lamp unit (E2). | ||
| 5 | Remove front LED matrix lamp unit control unit. | If the left front lamp unit (E1) or the right front lamp unit (E2) is replaced. Model 118, 177, 247 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Model 118, 177, 247 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 118, 177, 247 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-2025MFA |
| 6 | Remove headlamp control unit. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). Model 118, 177, 243, 247 with code 631 (Static LED headlamps, left-hand traffic) Model 118, 177, 243, 247 with code 632 (Headlamps, LED, static, right-side traffic) Model 177 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Model 177 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 177 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-4660MFA |
| 7 | Install in the reverse order. | ||
| 8 | Commission front left lamp unit (E1) or front right lamp unit (E2) using diagnostic system. | If the left front lamp unit (E1) or the right front lamp unit (E2) is replaced. | |
| AD00.00-P-2000-06MFA | |||

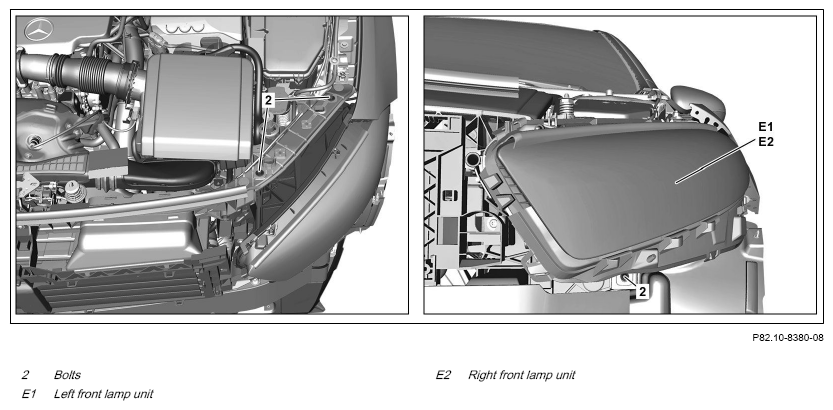

| Fig 1 | |||
| Check | |||
| 9 | Check headlamp adjustment and correct if necessary. | ||
| Model 118 | AP82.10-P-8260Y | ||
| Model 247 | AP82.10-P-8260AO | ||
| Model 177 | AP82.10-P-8260N | ||
| Model 243 | AP82.10-P-8260C |
