Remove/Install Emergency Call System Antenna - AR82.95-P-0017MFB
Model 118.6, 177.0, 243.7, 247.0/7
with code 362 (HERMES communications module LTE)

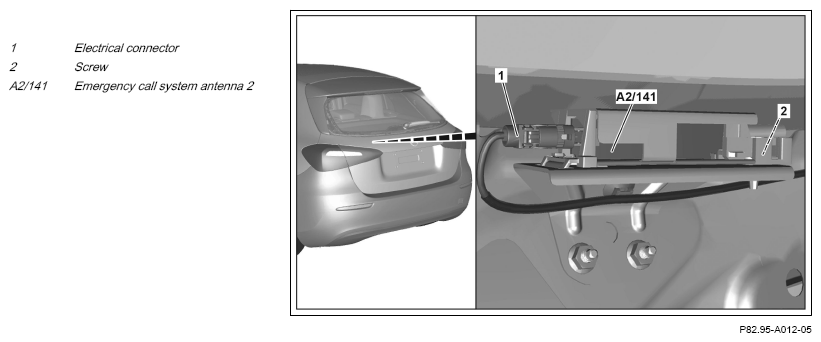

Shown on model 177.0 with code 362 (HERMES LTE)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove center liftgate trim. | AR72.20-P-6618MFA | |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove bolt (2). | ||
| 5 | Remove emergency call system antenna 2 (A2/141). | ||
| 6 | Install in the reverse order. |
