Remove/Install Additional Brake Lamp - AR82.10-P-5376MFA
Model 118.6, 177.0, 243, 247

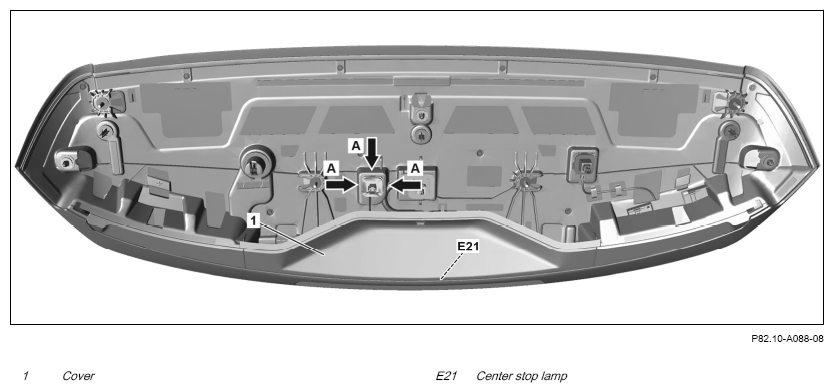

Shown on model 177.0

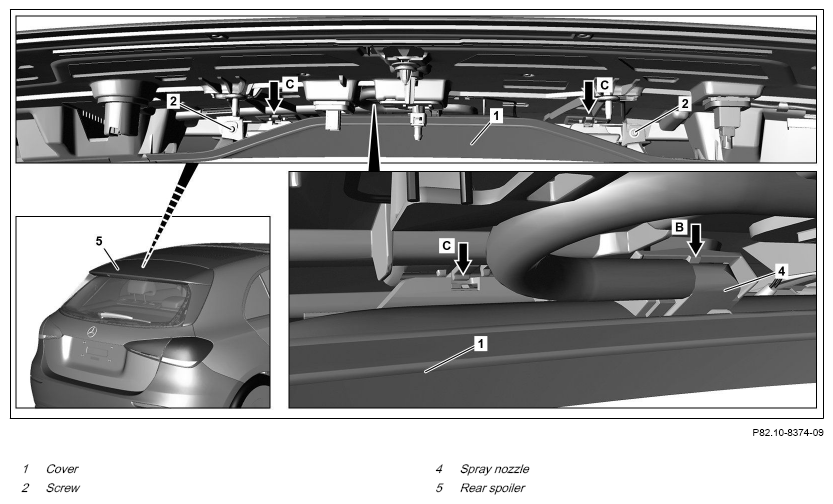

Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear spoiler (5) and place on suitable mat. | Model 118.6, 243, 247.6 | AR72.20-P-4000MFD |
| Model 177.0, 247.0/7 | AR72.20-P-4000MFA | ||
| 2 | Unclip spray nozzle (4) from cover (1) using a suitable tool (arrow B). | Model 177.0, 243, 247 | |
| 3 | Unclip electrical connector of center brake lamp (E21) from rear spoiler (5) using a suitable tool (arrow A). | ||
| 4 | Expose electrical lines of center brake lamp (E21). | ||
| 5 | Remove screw/bolts (2). | ||
| 6 | Carefully lift cover (1) in middle off rear spoiler (5) and unclip center brake lamp (E21) together with cover (1) from rear spoiler (5) (arrows C) and remove. | ||
| 7 | Detach center brake lamp (E21) from cover (1). | ||
| 8 | Install in the reverse order. |
