Outer Rear Wheel Well Remove - Ar63.10-P-0660-01MFA

Model 177.0/1/9

Model 247.0/6/7

The next steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Further information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

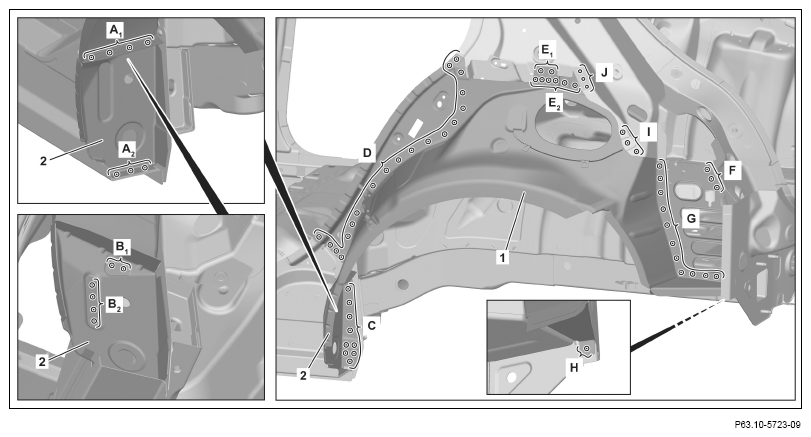

1. Expose spot welds on connecting panel (2) and cut off (areas A₁ , A₂ , B₁ , B₂ , C).
2. Remove connecting panel (2).
3. Expose spot welds on outer rear wheel well (1) and cut off (areas D, E₁ , E₂ , F, G, H).



   Joint spot welds on panels that are one behind the other must be cut off through two panel thicknesses.

4. Expose spot welds on outer rear wheel well (1) from inside and cut off (area I).
5. Expose spot weld on outer rear wheel well (1) expose and drill through with Ø 6.5 mm (area J).

   Courtesy of MERCEDES-BENZ USA

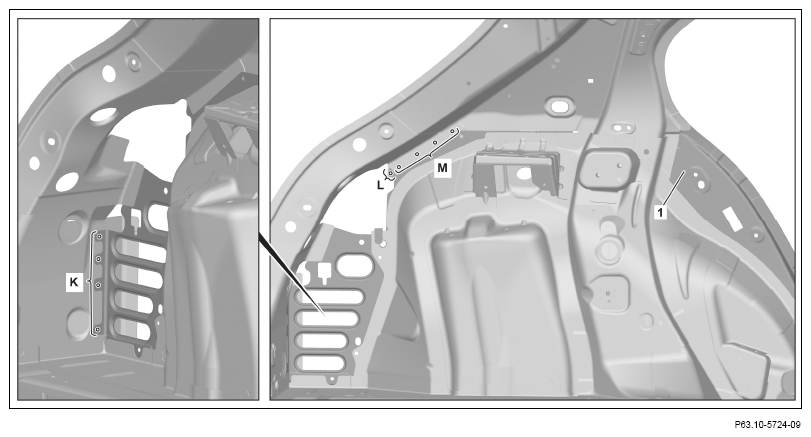

6. Expose spot welds on outer rear wheel well (1) and cut off (areas K, L).
7. Expose spot weld on outer rear wheel well (1) and drill through with Ø 6.5 mm (area M).

   Courtesy of MERCEDES-BENZ USA

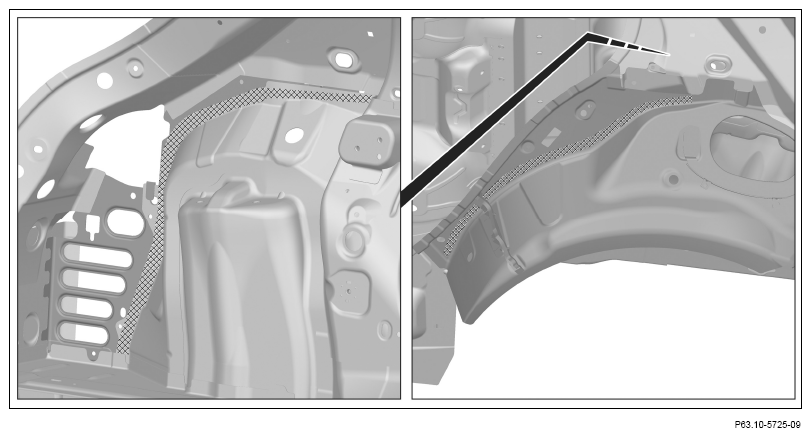

8. Heat the outer rear wheel well (1) in the cross-hatched areas.



   Cross-hatched areas are bonded with adhesive.

9. Take off the outer rear wheel well (1).

   Courtesy of MERCEDES-BENZ USA

10. Grind mating surfaces down to bare metal in cross-hatched areas.



    Grind spot weld flanges down to bare metal on both sides.

11. Remove grinding dust and drill chips.

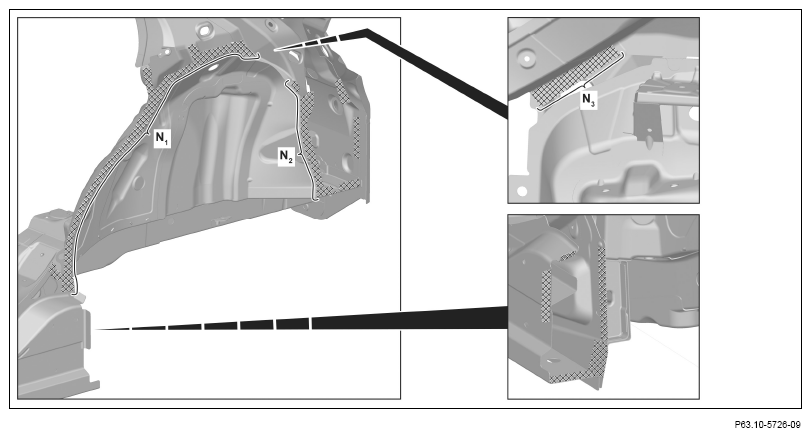

12. Apply zinc dust paint to insides of spot weld flanges. Do not coat bonding surfaces with zinc dust paint (areas N₁ , N₂ , N₃ ).

    Otherwise adhesion problems can occur.



    Observe pretreatment of bonding surfaces.
