Remove/Install Complete Sideview Mirror - AR88.70-P-9000MFB
Model 247
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Move corresponding side window down. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

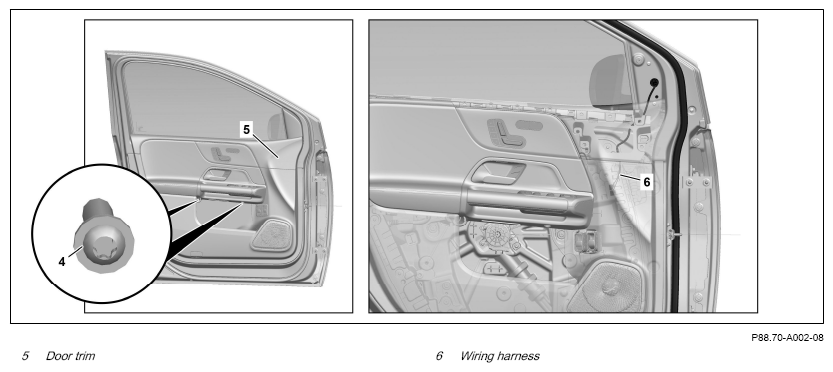

| 3 | Remove front door trim. | AR72.10-P-6575MFA | |
| 4 | Release and disconnect electrical connector of the driver's side outside mirror (M21/1) or release and disconnect front passenger side outside mirror (M21/2) from the driver's door control unit (N69/1) or front passenger door control unit (N69/2). | ||
| 5 | Unclip mirror triangle trim. | Fig 2 | |

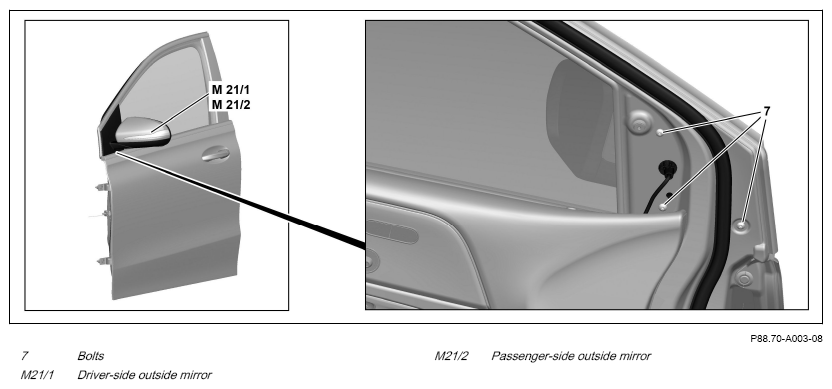

| 6 | Remove bolts_(7). | ||
| 7 | Remove driver's side outside mirror (M21/1) or front passenger side outside mirror (M21/2) and remove with wiring harness (6). | ||
| 8 | Install in the reverse order. | ||
| 9 | Perform function test of driver's side outside mirror (M21/1) or front passenger side outside mirror (M21/2). | ||
| Calibrate | |||
| 10 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | Model 247 with code 501 (360° camera) | |
| AD00.00-P-2000-06MFA |
