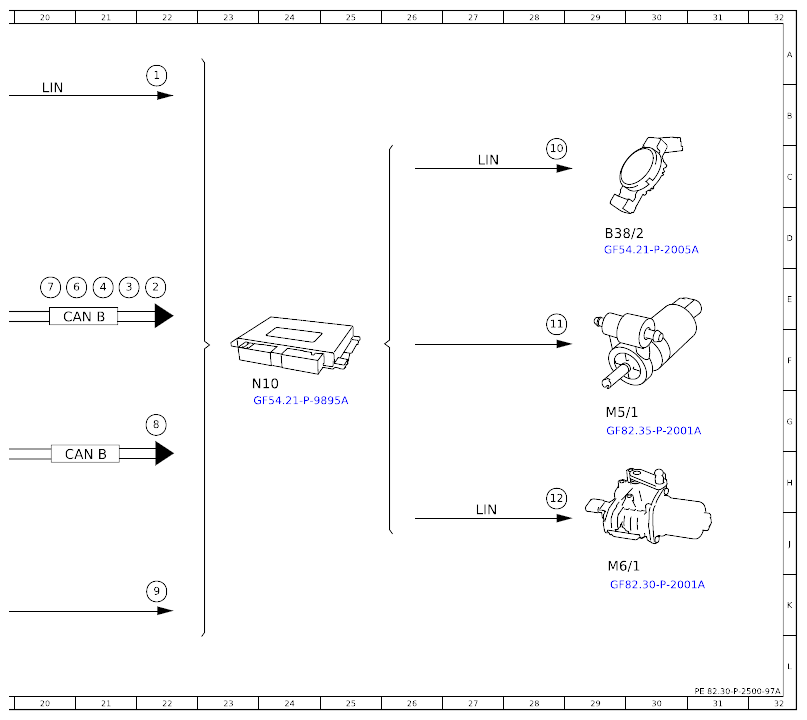

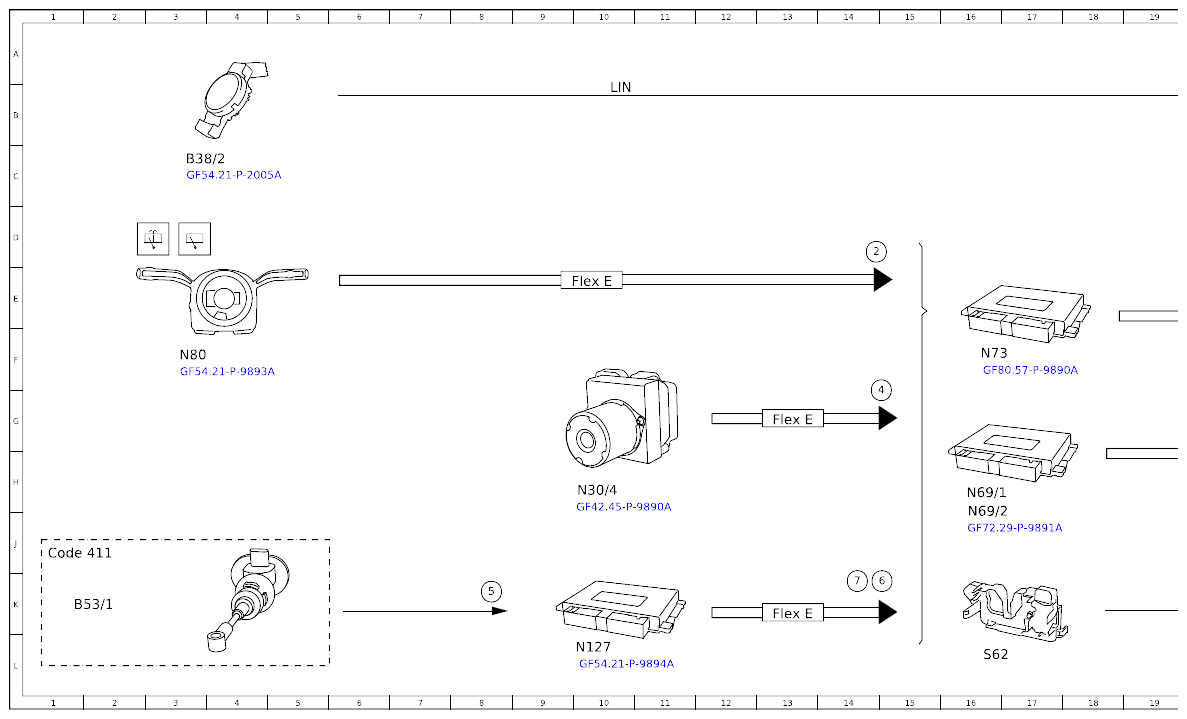

Function Schematic, Wipe And Wash Windshield - PE82.30-P-2500-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wipe, request | 22A |
| 10 | Wipe sensitivity, signal | 28C |
| 11 | Windshield washer system pump, actuation | 28E |
| 12 | Wipe request, signal | 29H |
| 2 | Combination switch, status | 14D |
| 2 | Combination switch, status | 22E |
| 3 | Circuit 15, status | 21E |
| 4 | Vehicle speed, signal | 15F |
| 4 | Vehicle speed, signal | 21E |
| 5 | Clutch pedal sensor, signal | 8K |
| 6 | Clutch pedal operated, signal | 15K |
| 6 | Clutch pedal operated, signal | 20E |
| 7 | Transmission position, signal | 14K |
| 7 | Transmission position, signal | 20E |
| 8 | Door rotary tumbler switch, status | 22G |
| 9 | Engine hood contact switch, status | 22K |
| B38/2 | Rain/light sensor with additional functions | 3C |
| B38/2 | Rain/light sensor with additional functions | 29D |
| B53/1 | Clutch travel sensor with start enable switch | 2K |
| CAN B | Interior CAN | 21E |
| CAN B | Interior CAN | 21H |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 1J |
| Flex E | Chassis FlexRay | 13G |
| Flex E | Chassis FlexRay | 10E |
| Flex E | Chassis FlexRay | 13K |
| LIN | Local Interconnect Network | 20B |
| LIN | Local Interconnect Network | 27C |
| LIN | Local Interconnect Network | 10B |
| LIN | Local Interconnect Network | 27J |
| M5/1 | Windshield washer system pump | 29G |
| M6/1 | Wiper motor | 29J |
| N10 | Signal acquisition and actuation module | 24F |
| N127 | Drivetrain control unit | 10L |
| N30/4 | Electronic Stability Program control unit | 10H |
| N69/1 | Driver door control unit | 16H |
| N69/2 | Front passenger door control unit | 16J |
| N73 | Electronic ignition switch control unit | 16F |
| N80 | Steering column module control unit | 3F |
| S62 | Center engine hood contact switch | 16L |
