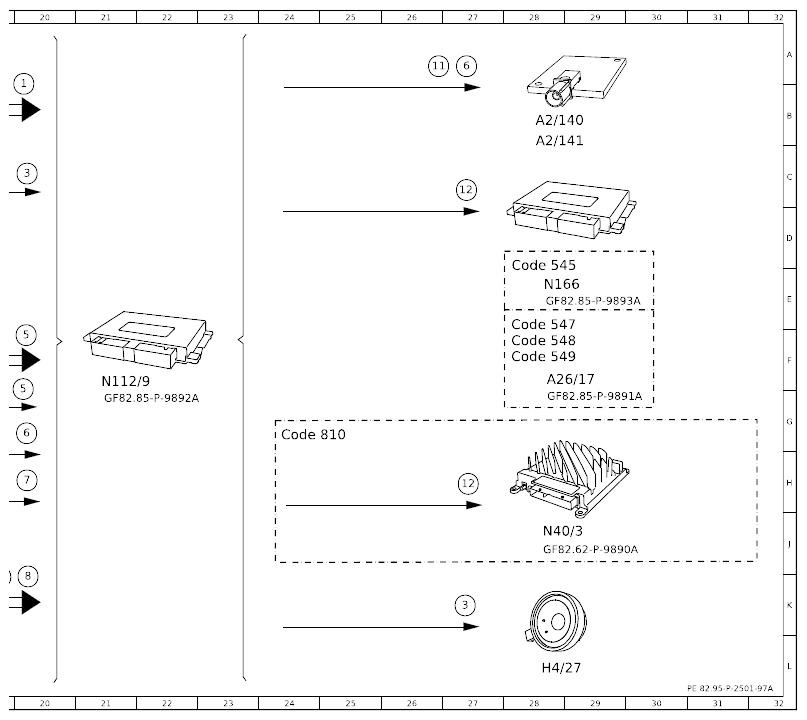

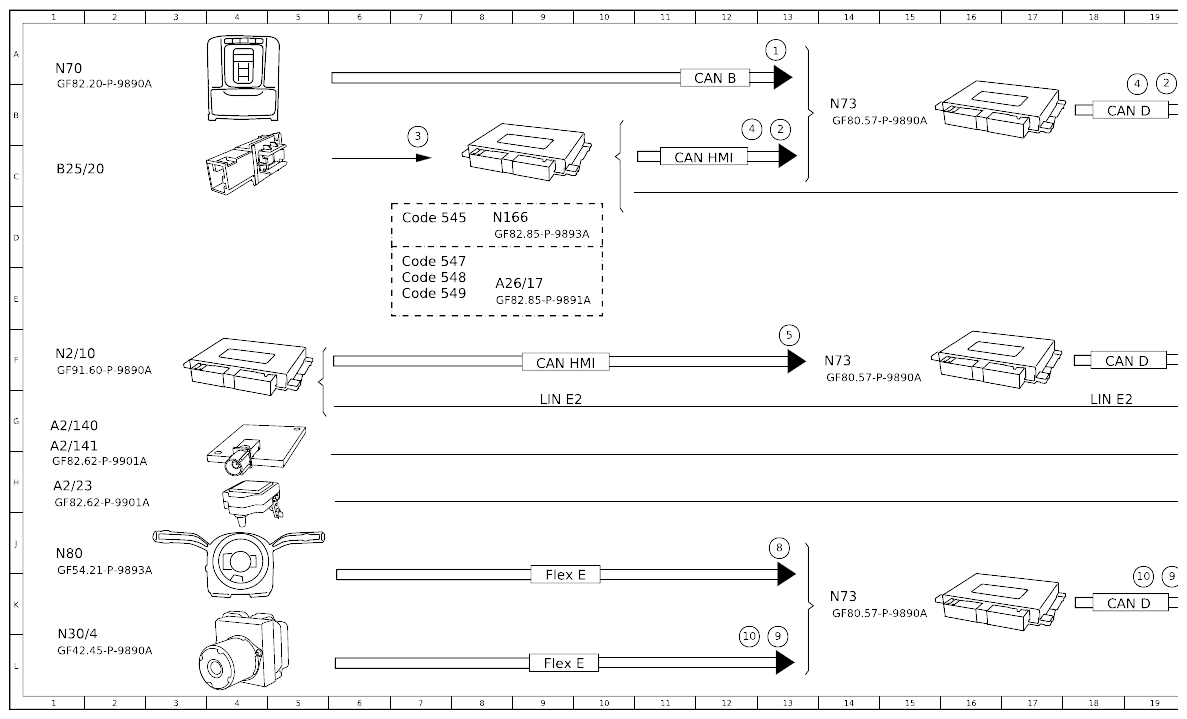

Function Schematic For Triggering Emergency Call - PE82.95-P-2501-97A
Model 118, 177, 243, 247 with code 362 (HERMES communications module LTE)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Manual emergency call, signal | 13A |
| 1 | Manual emergency call, signal | 20B |
| 10 | Wheel speed, signal | 19K |
| 10 | Wheel speed, signal | 12K |
| 11 | Emergency call data telegram, signal | 25A |
| 12 | Mute function, signal | 28C |
| 12 | Mute function, signal | 27H |
| 2 | Operation, signal | 13C |
| 2 | Operation, signal | 13D |
| 3 | Audio, signal | 7C |
| 3 | Audio, signal | 20E |
| 3 | Audio, signal | 27J |
| 4 | Position data, signal | 12C |
| 4 | Position data, signal | 12D |
| 4 | Position data, signal | 19B |
| 5 | Crash, signal | 13F |
| 5 | Crash, signal | 20F |
| 5 | Crash, signal | 20G |
| 6 | Telephone, signal | 20H |
| 6 | Telephone, signal | 26A |
| 7 | GPS, signal | 20H |
| 8 | Steering wheel angle sensor, signal | 13J |
| 8 | Steering wheel angle sensor, signal | 20K |
| 9 | Yaw rate, signal | 19K |
| 9 | Yaw rate, signal | 13K |
| A2/140 | Emergency call system antenna 1 | 28B |
| A2/140 | Emergency call system antenna 1 | 1G |
| A2/141 | Emergency call system antenna 2 | 28B |
| A2/141 | Emergency call system antenna 2 | 1G |
| A2/23 | GPS antenna | 1H |
| A26/17 | Head unit | 8E |
| A26/17 | Head unit | 28F |
| B25/20 | Driver hands-free system microphone | 1C |
| CAN B | Interior CAN | 12A |
| CAN D | Diagnostic CAN | 18B |
| CAN D | Diagnostic CAN | 18F |
| CAN D | Diagnostic CAN | 18K |
| CAN HMI | User interface CAN | 11C |
| CAN HMI | User interface CAN | 9F |
| Code 545 | Connect 5 (NTG6) | 7D |
| Code 545 | Connect 5 (NTG6) | 28E |
| Code 547 | Connect 20 Entry (NTG6) | 7D |
| Code 547 | Connect 20 Entry (NTG6) | 28E |
| Code 548 | Connect 20 MID (NTG6) | 7E |
| Code 548 | Connect 20 MID (NTG6) | 28F |
| Code 549 | Connect 20 HIGH (NTG6) | 7E |
| Code 549 | Connect 20 HIGH (NTG6) | 28F |
| Code 810 | Sound system | 24G |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 9L |
| H4/27 | Center instrument panel speaker | 28L |
| LIN E2 | Seat occupied recognition LIN | 18G |
| LIN E2 | Seat occupied recognition LIN | 9G |
| N112/9 | HERMES control unit | 21F |
| N166 | Head unit/instrument cluster control unit | 8D |
| N166 | Head unit/instrument cluster control unit | 28E |
| N2/10 | Supplemental restraint system control unit | 1F |
| N30/4 | Electronic Stability Program control unit | 1L |
| N40/3 | Sound system amplifier control unit | 28J |
| N70 | Overhead control panel control unit | 1A |
| N73 | Electronic ignition switch control unit | 14B |
| N73 | Electronic ignition switch control unit | 14F |
| N73 | Electronic ignition switch control unit | 14K |
| N80 | Steering column module control unit | 1J |
