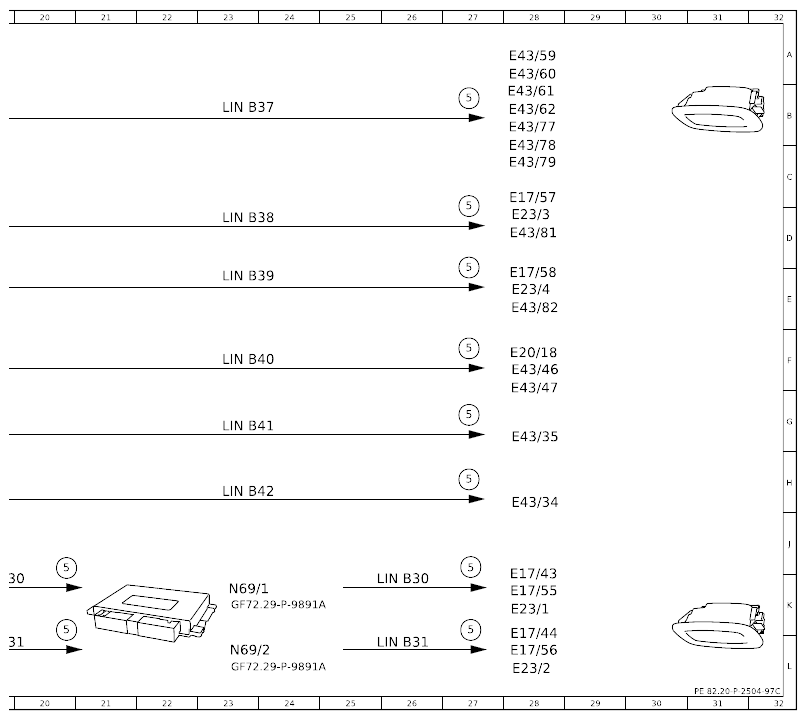

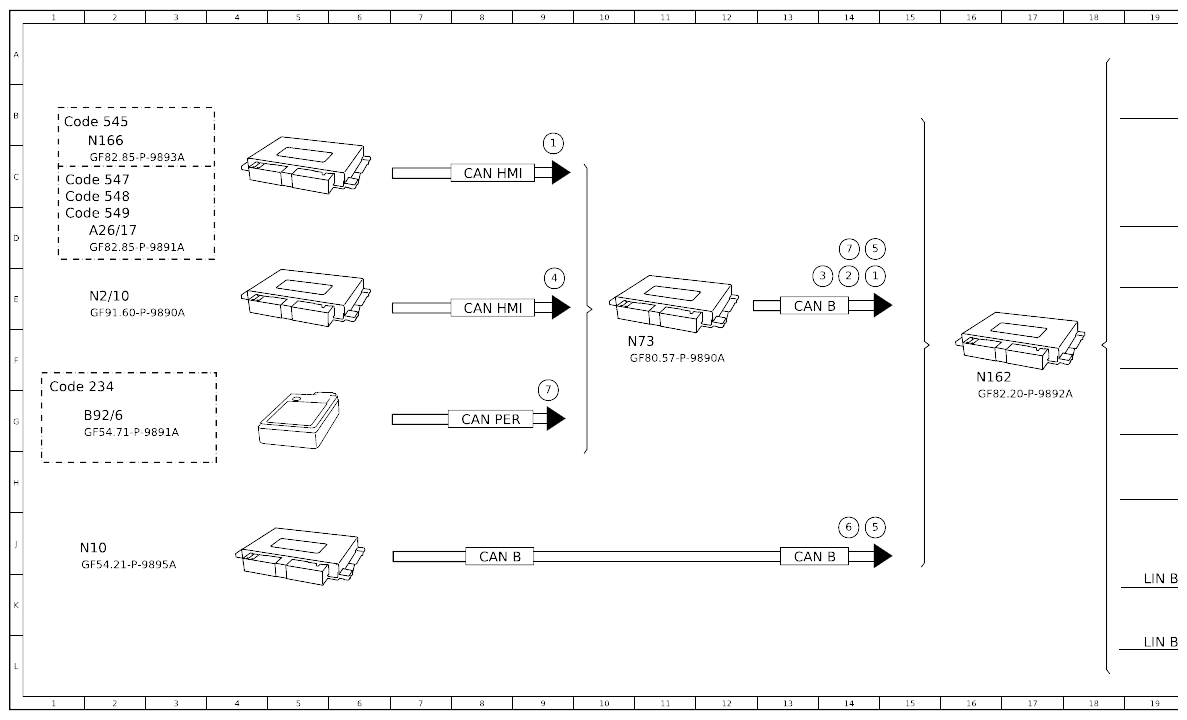

Function Schematic For Actuating Ambient Lighting - PE82.20-P-2504-97C
Model 247 with code 877 (ambient lighting)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance illumination settings, status | 14E |
| 1 | Ambiance illumination settings, status | 9B |
| 2 | Circuit 15, status | 14E |
| 3 | Central locking, status | 14E |
| 4 | Crash, signal | 9E |
| 5 | Ambience illumination, request | 27B |
| 5 | Ambience illumination, request | 14D |
| 5 | Ambience illumination, request | 14J |
| 5 | Ambience illumination, request | 27K |
| 5 | Ambience illumination, request | 27J |
| 5 | Ambience illumination, request | 27G |
| 5 | Ambience illumination, request | 20L |
| 5 | Ambience illumination, request | 20J |
| 5 | Ambience illumination, request | 27H |
| 5 | Ambience illumination, request | 27F |
| 5 | Ambience illumination, request | 27D |
| 5 | Ambience illumination, request | 27C |
| 6 | ATA [EDW] alarm, signal | 14J |
| 7 | Blind Spot Assist warning indicator, request | 14D |
| 7 | Blind Spot Assist warning indicator, request | 9F |
| A26/17 | Head unit | 2D |
| B92/6 | Right outer rear integrated radar sensor | 2G |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 13J |
| CAN B | Interior CAN | 8J |
| CAN HMI | User interface CAN | 8C |
| CAN HMI | User interface CAN | 8E |
| CAN PER | Peripherals CAN | 8G |
| Code 234 | Blind spot assist | 1G |
| Code 545 | Connect 5 (NTG6) | 1B |
| Code 547 | Connect 20 Entry (NTG6) | 1C |
| Code 548 | Connect 20 MID (NTG6) | 1C |
| Code 549 | Connect 20 HIGH (NTG6) | 1D |
| E17/43 | Driver door ambiance illumination | 28K |
| E17/44 | Front passenger door ambiance illumination | 28L |
| E17/55 | Driver door handle ambiance illumination | 28K |
| E17/56 | Front passenger door handle ambiance illumination | 28L |
| E17/57 | Left rear door handle ambiance illumination | 28C |
| E17/58 | Right rear door handle ambiance illumination | 28E |
| E20/18 | Center console cup holder ambiance illumination | 28F |
| E23/1 | Driver door pocket lighting | 28K |
| E23/2 | Front passenger door pocket lighting | 28L |
| E23/3 | Left rear door stowage compartment illumination | 28D |
| E23/4 | Right rear door stowage compartment illumination | 28E |
| E43/34 | Left rear footwell ambiance illumination | 28H |
| E43/35 | Right rear footwell ambiance illumination | 28G |
| E43/46 | Left center console ambiance illumination | 28F |
| E43/47 | Right center console ambiance illumination | 28G |
| E43/59 | Driver side air vent ambiance illumination | 28A |
| E43/60 | Front passenger side air vent ambiance illumination | 28A |
| E43/61 | Left center air vent ambiance illumination | 28B |
| E43/62 | Right center air vent ambiance illumination | 28B |
| E43/77 | Center air vent ambiance illumination | 28B |
| E43/78 | Lower driver-side instrument panel ambiance illumination | 28C |
| E43/79 | Lower passenger-side instrument panel ambiance illumination | 28C |
| E43/81 | Left front footwell ambiance illumination | 28D |
| E43/82 | Right front footwell ambiance illumination | 28E |
| LIN B30 | Driver door ambiance illumination LIN | 19K |
| LIN B30 | Driver door ambiance illumination LIN | 26K |
| LIN B31 | Front passenger door ambiance illumination LIN | 19L |
| LIN B31 | Front passenger door ambiance illumination LIN | 26L |
| LIN B37 | Instrument panel ambiance illumination LIN | 23B |
| LIN B38 | Left vehicle interior ambiance illumination LIN | 23D |
| LIN B39 | Right vehicle interior ambiance illumination LIN | 23E |
| LIN B40 | Center console ambiance illumination LIN | 23F |
| LIN B41 | Left seats ambiance illumination LIN | 23G |
| LIN B42 | Right seats ambiance illumination LIN | 23H |
| N10 | SAM control unit | 2J |
| N162 | Ambiance illumination control unit | 16F |
| N166 | Head unit/instrument cluster control unit | 2B |
| N2/10 | Supplemental restraint system control unit | 2E |
| N69/1 | Driver door control unit | 23K |
| N69/2 | Front passenger door control unit | 23L |
| N73 | Electronic ignition switch control unit | 11F |
