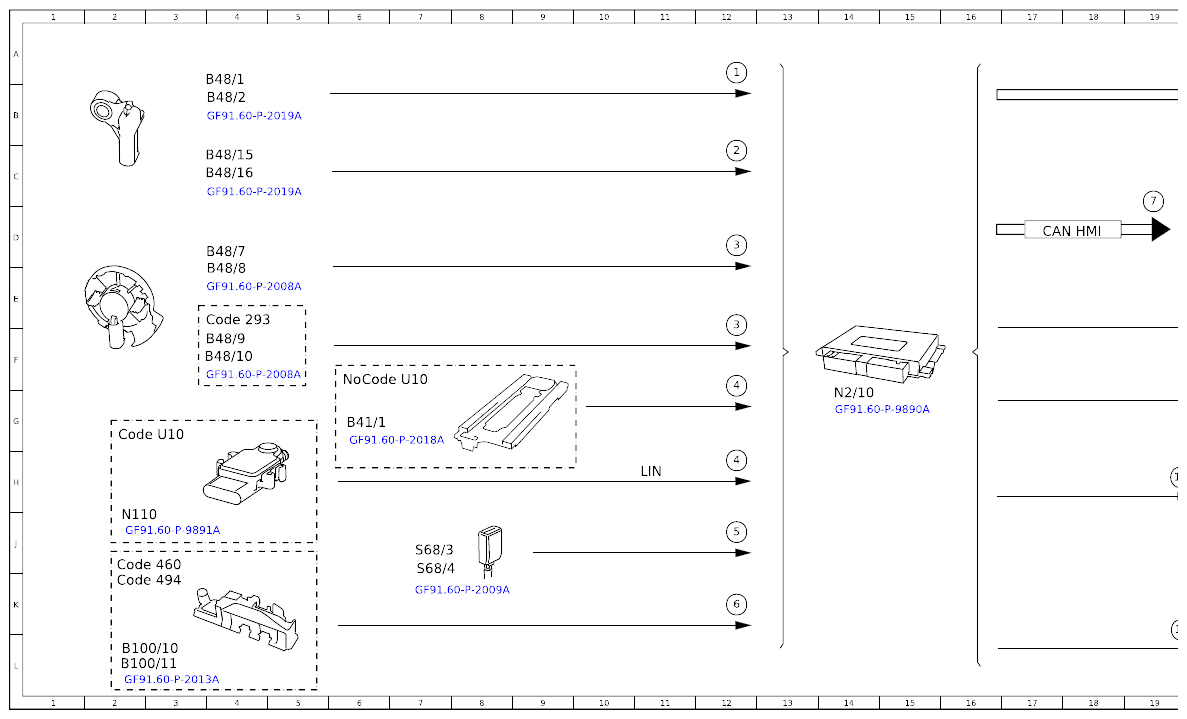

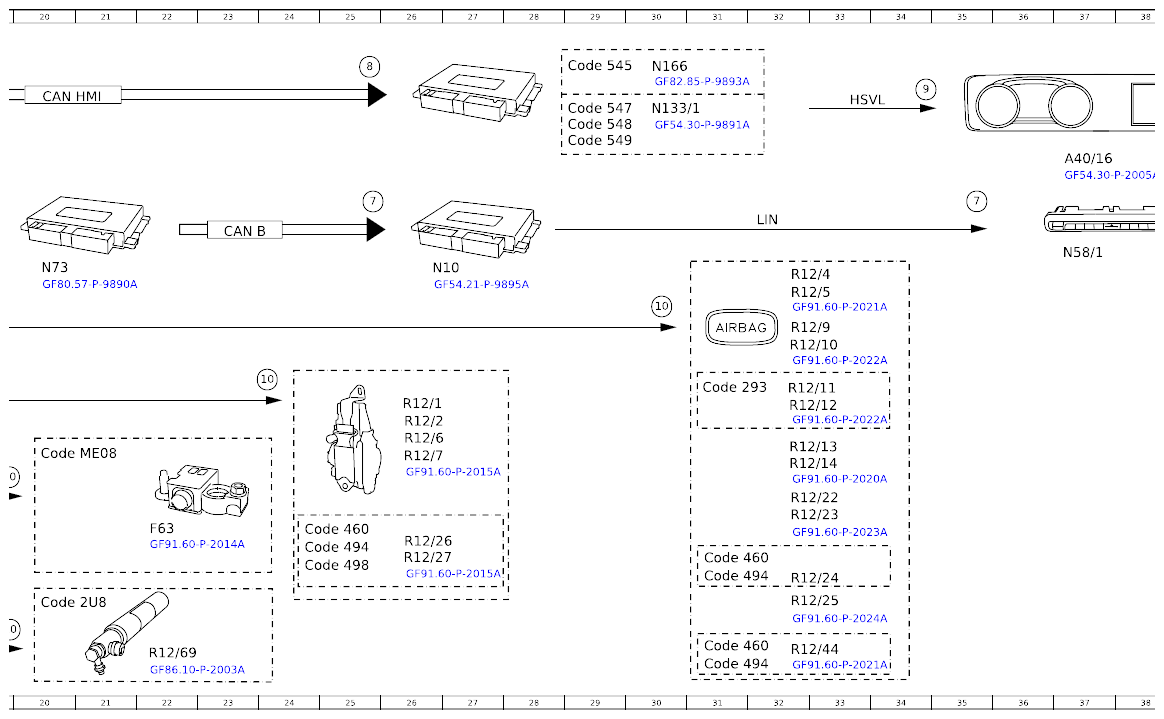

Function Schematic, Trigger Supplemental Restraint System - PE91.60-P-2501-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Frontal acceleration sensor, signal | 12A |
| 10 | Squib, actuation | 19K |
| 10 | Squib, actuation | 19H |
| 10 | Squib, actuation | 22J |
| 10 | Squib, actuation | 26G |
| 2 | Body acceleration sensor, signal | 12B |
| 3 | Pressure sensor, signal | 12D |
| 3 | Pressure sensor, signal | 12E |
| 4 | Front passenger seat occupied recognition, status | 12F |
| 4 | Front passenger seat occupied recognition, status | 12H |
| 5 | Seat belt buckle switch, status | 12J |
| 6 | Seat position Hall sensor, signal | 12K |
| 7 | Front passenger airbag indicator lamp, request | 19C |
| 7 | Front passenger airbag indicator lamp, request | 25C |
| 7 | Front passenger airbag indicator lamp, request | 35C |
| 8 | Instrument cluster message, request | 25A |
| 9 | Image data, signal | 34B |
| A40/16 | Head unit/instrument cluster display cluster | 37C |
| B100/10 | Driver seat position Hall sensor | 2L |
| B100/11 | Front passenger seat position Hall sensor | 2L |
| B41/1 | Front passenger seat occupied recognition | 6G |
| B48/1 | Left frontal acceleration sensor | 4A |
| B48/10 | Right rear door pressure sensor | 4F |
| B48/15 | Left B-pillar body acceleration sensor | 4C |
| B48/16 | Right B-pillar body acceleration sensor | 4C |
| B48/2 | Right frontal acceleration sensor | 4B |
| B48/7 | Left front door pressure sensor | 4D |
| B48/8 | Right front door pressure sensor | 4E |
| B48/9 | Left rear door pressure sensor | 4F |
| CAN B | Interior CAN | 23D |
| CAN HMI | User interface CAN | 17D |
| CAN HMI | User interface CAN | 20B |
| Code 293 | side airbags in the rear | 31G |
| Code 293 | side airbags in the rear | 3E |
| Code 2U8 | Alternative refrigerant | 20K |
| Code 460 | Canada version | 24J |
| Code 460 | Canada version | 31L |
| Code 460 | Canada version | 2J |
| Code 460 | Canada version | 31J |
| Code 494 | USA version | 24J |
| Code 494 | USA version | 31L |
| Code 494 | USA version | 2K |
| Code 494 | USA version | 31K |
| Code 498 | Japan version | 24J |
| Code 545 | Connect 5 (NTG6) | 29A |
| Code 547 | Connect 20 Entry (NTG6) | 29B |
| Code 548 | Connect 20 MID (NTG6) | 29B |
| Code 549 | Connect 20 HIGH (NTG6) | 29B |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 20H |
| Code U10 | Automatic front passenger airbag shutoff | 6F |
| Code U10 | Automatic front passenger airbag shutoff | 2G |
| F63 | Pyrofuse | 22J |
| HSVL | High-speed video link | 33B |
| LIN | Local Interconnect Network | 11H |
| LIN | Local Interconnect Network | 32D |
| N10 | Central control module | 26E |
| N110 | Weight Sensing System (WSS) control unit | 2J |
| N133/1 | Instrument cluster control unit | 30B |
| N166 | Head unit/instrument cluster control unit | 30A |
| N2/10 | Supplemental restraint system control unit | 14G |
| N58/1 | Climate control operating unit | 37D |
| N73 | Electronic ignition switch control unit | 20E |
| R12/1 | Driver ETR [GUS] squib | 26G |
| R12/10 | Front passenger side airbag squib | 32F |
| R12/11 | Left rear side airbag squib | 32G |
| R12/12 | Right rear side airbag squib | 32G |
| R12/13 | Driver airbag squib 1 | 32H |
| R12/14 | Driver airbag squib 2 | 32H |
| R12/2 | Front passenger ETR [GUS] squib | 26G |
| R12/22 | Left window airbag squib | 32H |
| R12/23 | Right window airbag squib | 32J |
| R12/24 | Front passenger knee airbag squib | 32K |
| R12/25 | Driver knee airbag squib | 32K |
| R12/26 | Front passenger belt force limiter | 26J |
| R12/27 | Driver belt force limiter | 26J |
| R12/4 | Front passenger airbag squib 1 | 32E |
| R12/44 | Front passenger airbag bleed valve squib | 32L |
| R12/5 | Front passenger airbag squib 2 | 32E |
| R12/6 | Left rear emergency tensioning retractor squib | 26G |
| R12/69 | Refrigerant inerting squib | 22L |
| R12/7 | Right rear emergency tensioning retractor squib | 26H |
| R12/9 | Driver side airbag squib | 32F |
| S68/3 | Driver seat belt buckle switch | 7J |
| S68/4 | Front passenger seat belt buckle switch | 7J |
