Remove/Install Driver AIRBAG On Steering Wheel - AR91.60-P-0663MFD
Model 118, 243
as of model year 2023
Model 177, 247
as of model year 2022
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Move steering wheel (2) all the way upward. | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Disconnect ground line of battery of 12 V on-board electrical system. | AR54.10-P-0003MFA | |

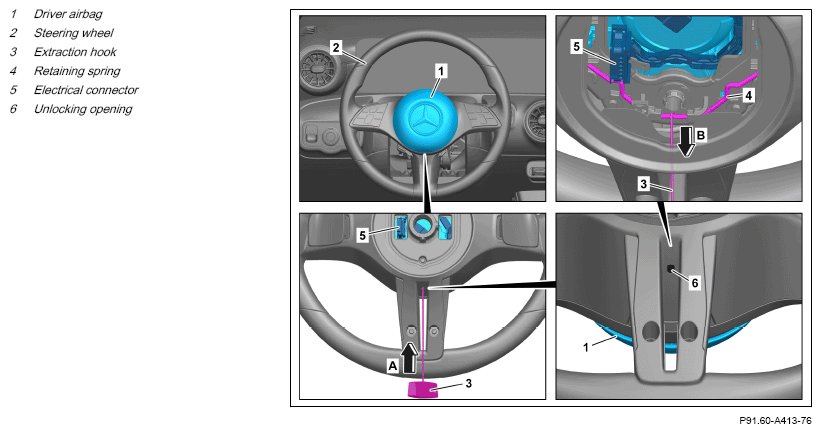

| 4 | Insert extraction hook (3) into release opening (6) on steering wheel (2) (arrow A). | Fig 2 | |
| 5 | Release safety spring (4) of driver's airbag (1) using extraction hook (3) (arrow B) and lift off steering wheel (2). | ||
| 6 | Remove driver's airbag (1) then release and disconnect electrical connector (5). | This will result in damage to the electric lines and can impair their function. |
|
| 7 | Install in the reverse order. | ||
| 8 | Check Supplemental Restraint System (SRS) with diagnostic device. | When replacing driver's airbag (1). | |
| AD00.00-P-2000-06MFA |
