Hood Lifter, Basic Function - GF91.60-P-2017A
Model All (CAR)
with code U60 (Pedestrian protection - Active hood)
Overview
This document contains information on:
- General
- Function

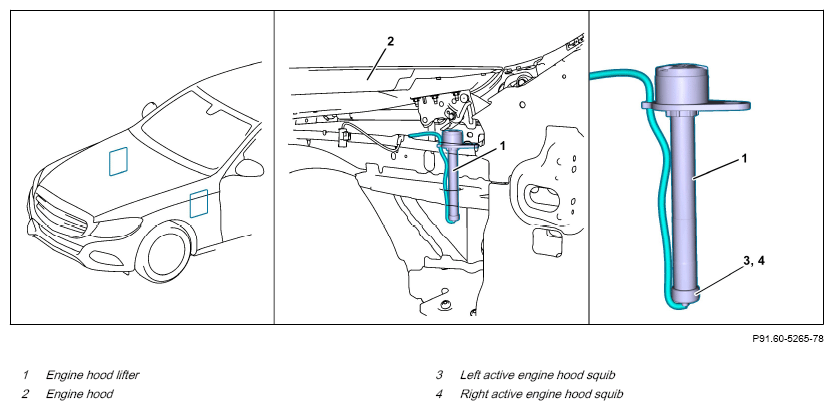

Example illustration of hood lifter
General
The function of the hood lifter (1) is part of the pedestrian protection system.
The hood (2) is raised with the hood lifters (1) that are attached near the hood hinges (2). This reduces injuries caused by collisions with pedestrians.
Function
The hood lifters (1) implement the pedestrian protection. The triggering of the squibs (3, 4) lifts up the hood (2) at the rear by approx. 8 cm. The Supplemental Restraint System (SRS) control unit actuates the squibs directly.
| Component descriptions | |||
| Engine hood lifter, component description | Model 223 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000A | |
| Model 206 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000C | ||
| Model 297 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000D | ||
| Model 232 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000F | ||
| Model 254 with code U60 (Pedestrian protection - Active hood) | GF91.60-P-1000H |
