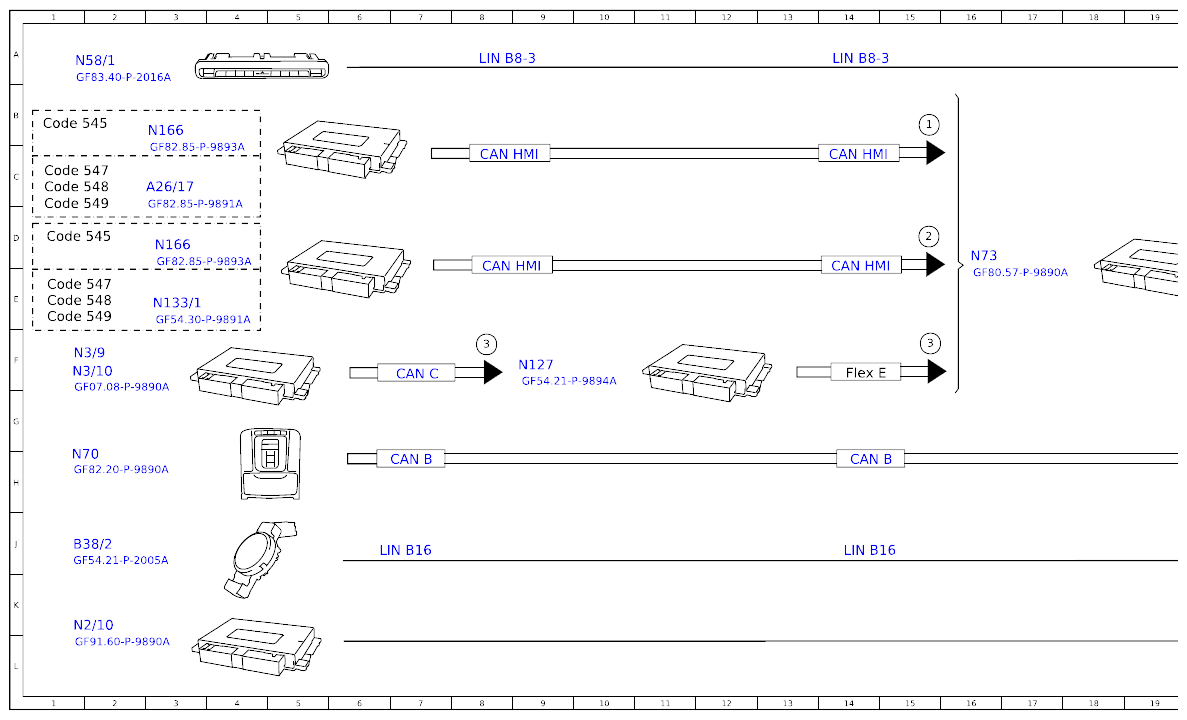

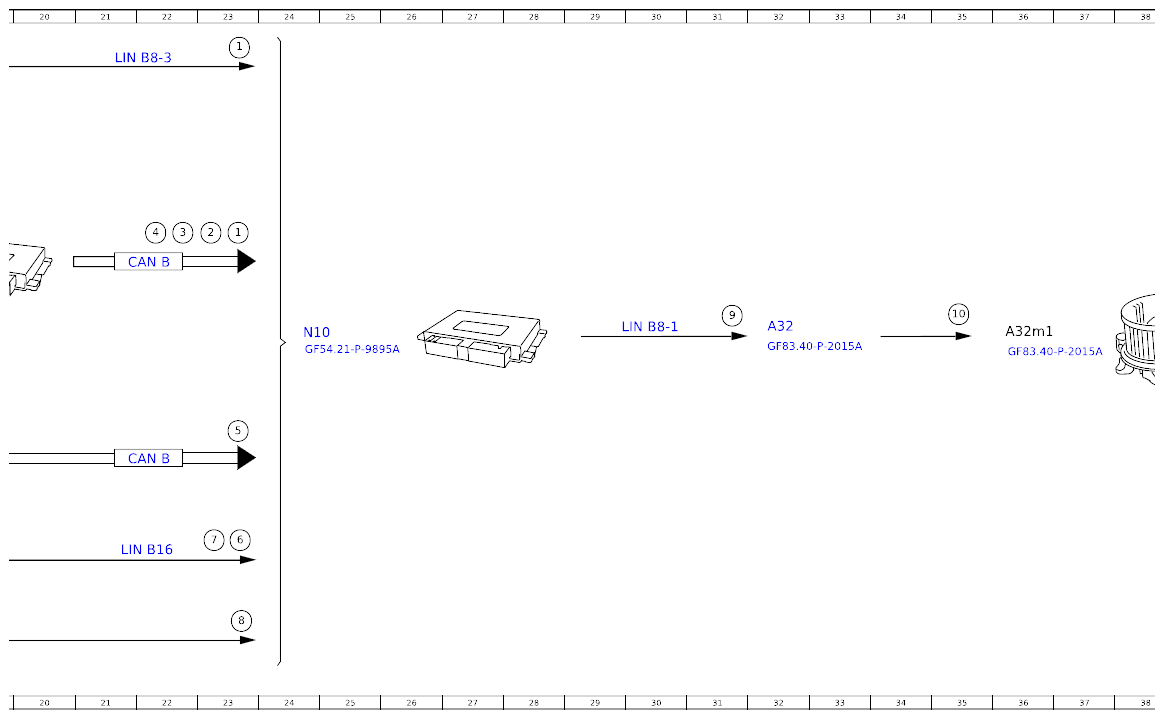

Function Schematic For Actuating Blower Motor - PE83.10-P-2502-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 15C |
| 1 | Operation, signal | 15D |
| 1 | Operation, signal | 23B |
| 10 | Blower motor, actuation | 35E |
| 2 | Evaporator drying, request | 15C |
| 2 | Evaporator drying, request | 15D |
| 3 | Engine running, signal | 8G |
| 3 | Engine running, signal | 15G |
| 3 | Engine running, signal | 22E |
| 4 | Circuit 15, status | 22E |
| 5 | Interior temperature, signal | 23G |
| 6 | Dew point temperature, signal | 23J |
| 7 | Solar radiation, signal | 23J |
| 8 | Crash, signal | 23K |
| 9 | Blower motor, request | 32E |
| A26/17 | Head unit | 3C |
| A32 | AC housing | 32F |
| A32m1 | Electronic blower motor | 36F |
| B38/2 | Rain/light sensor with additional functions | 2J |
| CAN B | Interior CAN | 22D |
| CAN B | Interior CAN | 22H |
| CAN B | Interior CAN | 14H |
| CAN B | Interior CAN | 7H |
| CAN C | CAN for engine | 7F |
| CAN HMI | User interface CAN | 14C |
| CAN HMI | User interface CAN | 14E |
| CAN HMI | User interface CAN | 8E |
| CAN HMI | User interface CAN | 8C |
| Code 545 | Connect 5 (NTG6) | 1B |
| Code 545 | Connect 5 (NTG6) | 1D |
| Code 547 | Connect 20 Entry (NTG6) | 1C |
| Code 547 | Connect 20 Entry (NTG6) | 1E |
| Code 548 | Connect 20 MID (NTG6) | 1C |
| Code 548 | Connect 20 MID (NTG6) | 1E |
| Code 549 | Connect 20 HIGH (NTG6) | 1D |
| Code 549 | Connect 20 HIGH (NTG6) | 1E |
| Flex E | Chassis FlexRay | 14F |
| LIN B16 | Rain and light sensor LIN | 14J |
| LIN B16 | Rain and light sensor LIN | 21J |
| LIN B16 | Rain and light sensor LIN | 7J |
| LIN B8-1 | LIN 1 for climate control system | 30F |
| LIN B8-3 | LIN 3 for climate control system | 21A |
| LIN B8-3 | LIN 3 for climate control system | 14A |
| LIN B8-3 | LIN 3 for climate control system | 8A |
| N10 | Central control module | 24F |
| N127 | Drivetrain control unit | 9F |
| N133/1 | Instrument cluster control unit | 3E |
| N166 | Head unit/instrument cluster control unit | 3B |
| N166 | Head unit/instrument cluster control unit | 3D |
| N2/10 | Supplemental restraint system control unit | 2K |
| N3/10 | ME-SFI [ME] control unit | 2F |
| N3/9 | CDI control unit | 1F |
| N58/1 | Climate control operating unit | 2A |
| N70 | Overhead control panel control unit | 1H |
| N73 | Electronic ignition switch control unit | 16D |
