Remove/Install Front Air Conditioning Control Panel - AR83.30-P-6631MFA
Model 118, 177, 243, 247

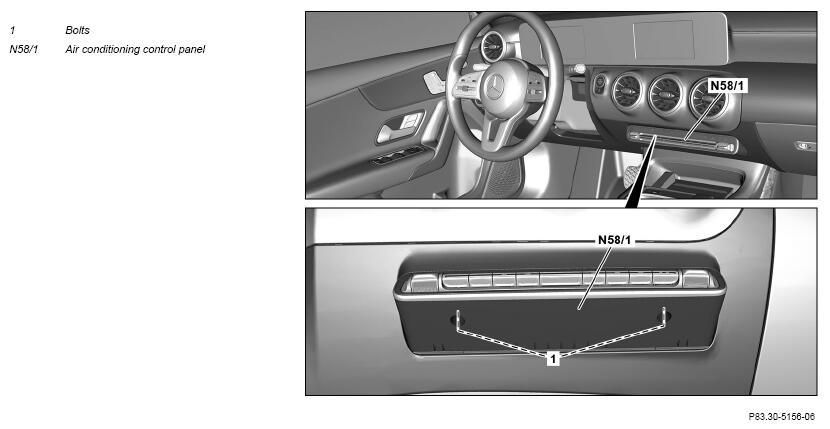

Shown on model 177
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove bolts (1). | ||
| 3 | Remove air conditioning control panel (N58/1) until electrical connectors are accessible. | ||
| 4 | Release and disconnect electrical connectors from air conditioning control panel (N58/1). | ||
| 5 | Install in the reverse order. |
